Connection Examples; Using 1X5 Male Headers - mikroElektronika mikroProg for PIC Manual

For connecting mikroProg with your target device a best solution is to provide 1x5 or
2x5 male headers which are connected with programing pins on microcontroller.
When soldering header make sure that to use correct pinout for IDC10
connector.

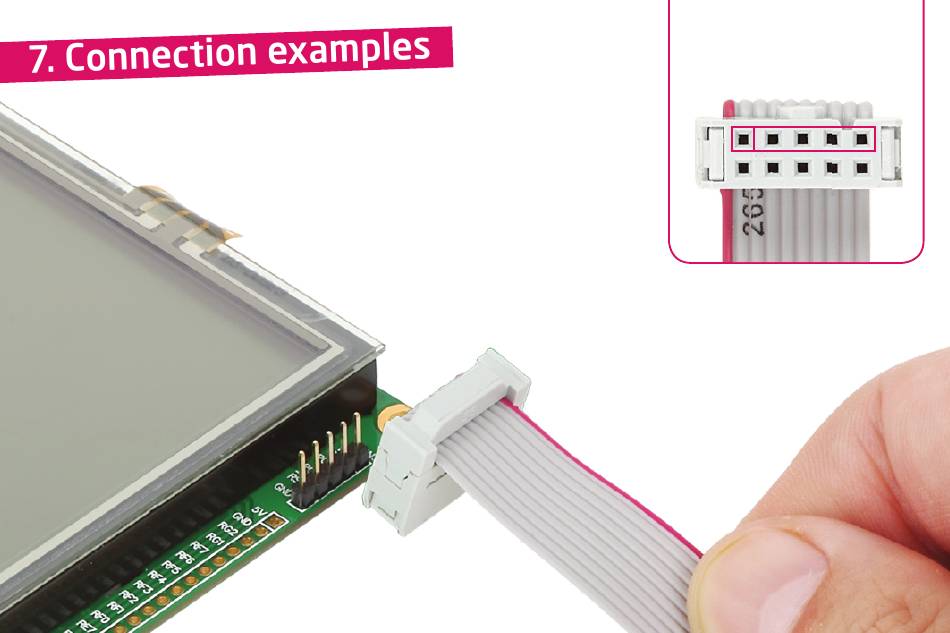

Figure 7-2: Connecting mikroProg to
SmartGLCD 128x240 via 1x5 male header

Using 1x5 male headers

When connecting mikroProg with your device
via 1x5 header make sure to use front side of IDC10 connector (side with a knob and
incision), Figure 7-2. For example, if you use some of Mikroelektronika's products
Page 14
Figure 7-1: Use only front
row for programming
you may notice a clear markings for mikroProg IDC10
connector header, Figure 7-2.
