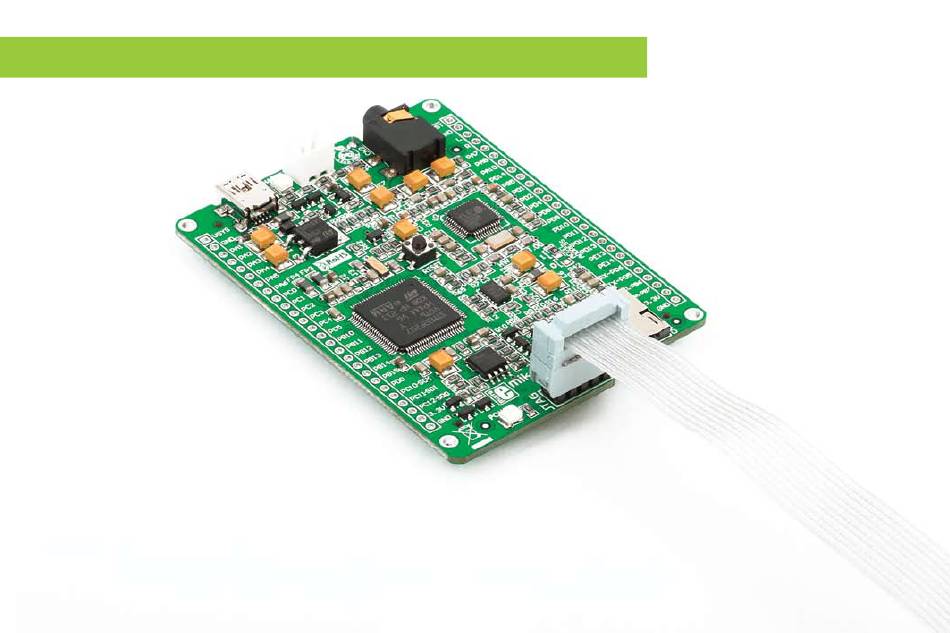

7. Connection schematics examples
Following examples demonstrate connections with some of the most popular supported microcontrollers. Each one
is carefully selected as a representative of the entire family. All MCUs use TMS, TCK, TDO, TDI, TRST, #RESET lines
for JTAG programming or SWDIO, SWCLK for SWD (Serial Wire Debug) programming. These lines are located on same
microcontroller pins within a family.
