PIC24 TQFP80

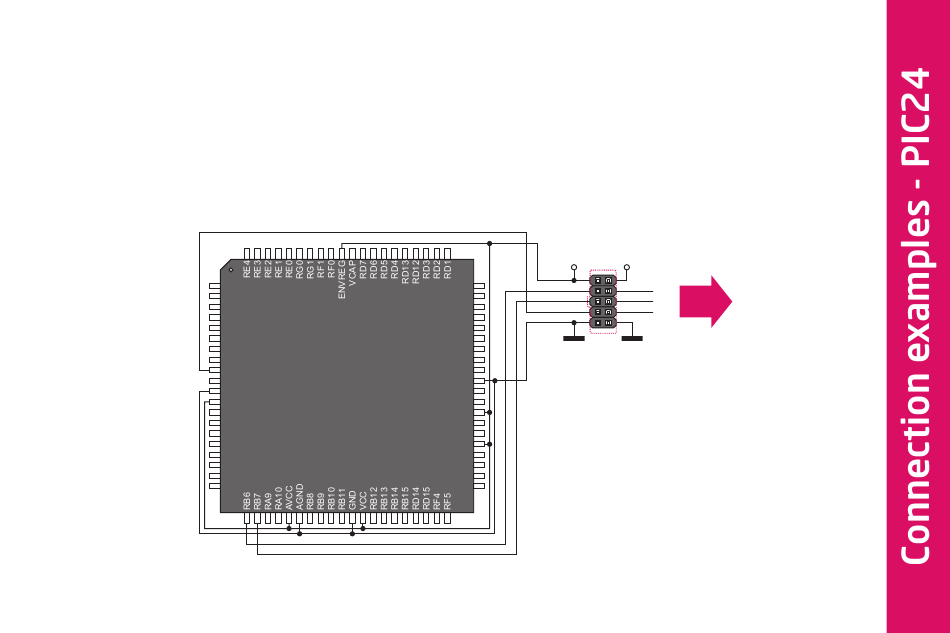

Figure 9-28: Connection schematic for
80-pin TQFP MCU via 2x5 male header
RE5
RE6
RE7
RC1
RC3
RG6
RG7
RG8
MCLR
RG9
PIC24FJ128GB108-PT
GND
VCC
RE8
RE9
RB5
RB4
RB3
RB2
RB1
RB0
MCU-VCC VCC
RC14
MCU- RB6/PGC
RC13
MCU- RB7/PGD
RD0 MCU-MCLR
RD11
RD10
RD9
RD8
On-board
RA15
2x5 connector
RA14
GND
OSC2
OSC1
VCC
D+/RG2
D-/RG3
VUSB
VBUS
RF8
RF2
RF3
80 PIN
Page 37
PGC- RB6
USER
PGD- RB7
INTERFACE
MCLR
