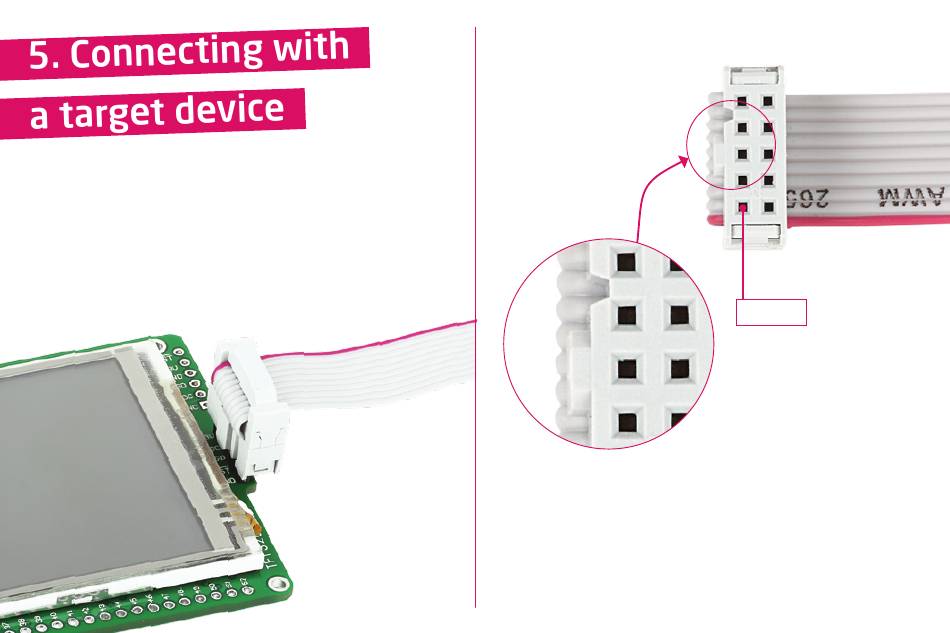

For connection with a target device mikroProg for PIC uses IDC10
connector, Figure 5-1. In order to make proper connection with the
target board it is necessary to pay attention to IDC10 connector
pinout. Every pin has a different purpose and for easy orientation
IDC10 connector is marked with a little knob and incision, Figure
5- 2. First pin on IDC10 is marked with colored wire on a flat cable.
Figure 5-2: Knob
and incision for easy
orientation
Figure 5-1: IDC10
connector
Page 12
Front side of IDC10 connector is marked with a knob and incision.
Front side holds PGC, PGD and MCLR pins which are used for
microcontroller programming.
First pin
