dsPIC DIP28

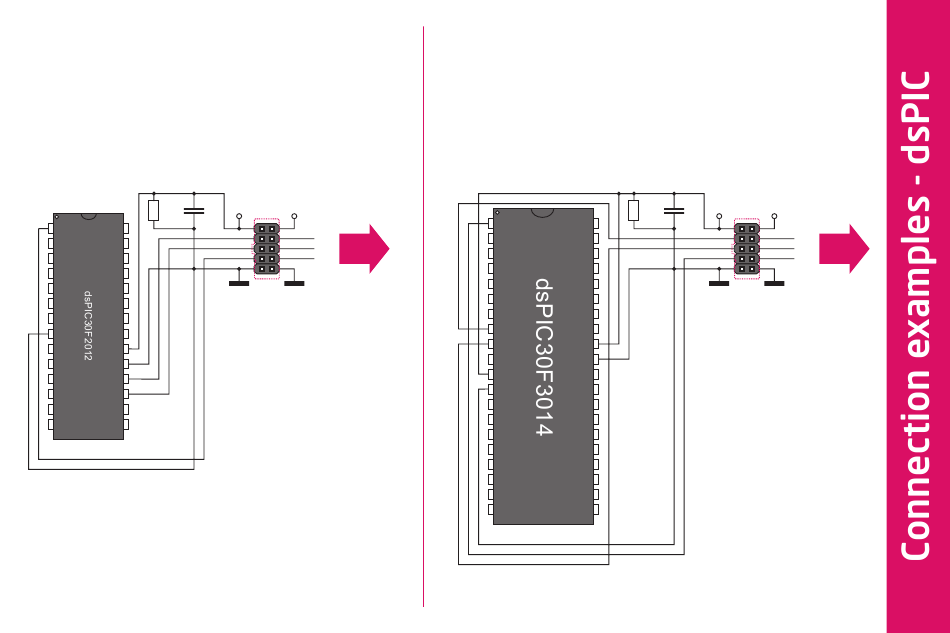

Figure 9-19: Connection schematic for
28-pin DIP MCU via 2x5 male header
100nF
MCU-VCC
1K
MCLR
AVCC
MCU- RF2/PGC
RB0
AGND
MCU- RF3/PGD
MCU-MCLR
RB1
RB6
RB2
RB7
RB3 RB8
RB4 RB9
RB5 RF4
GND RF5
OSC1 VCC
OSC2 GND
RC13 RF2
RC14 RF3
VCC RF6
RD9 RD8
28 PIN
VCC
PGC- RF2
PGD- RF3
USER
INTERFACE
MCLR

On-board

2x5 connector

dsPIC DIP40

Figure 9-20: Connection schematic for
40-pin DIP MCU via 2x5 male header
MCLR AVCC
RB0
AGND
RB1
RB9
RB2 RB10
RB3
RB11
RB4
RB12
RB5
RD0
RB6
RD1
VCC
RB7
RB8
GND
VCC RF0
GND RF1
OSC1 RF4
OSC2 RF5
RC13 RF2
RC14 RF3
RA11 RF6
RD9 RD8
RD3 RD2
GND VCC
DIP40
Page 31
100nF
MCU-VCC VCC
1K
MCU- RB6/PGC PGC- RB6
MCU- RB7/PGD PGD- RB7
MCU-MCLR
MCLR
On-board
2x5 connector
USER
INTERFACE
