PIC18FJ DIP40

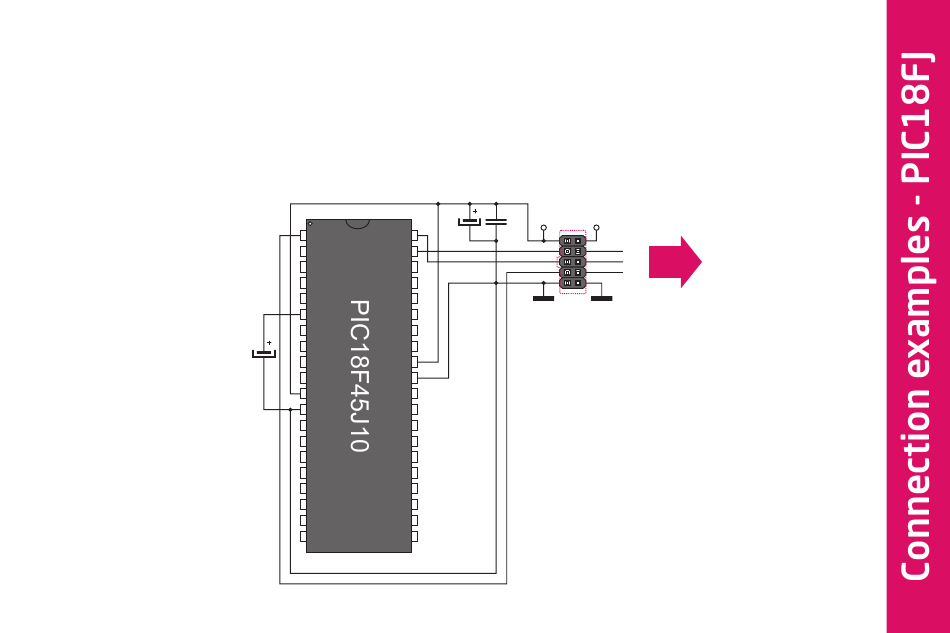

Figure 9-11: Connection schematic for
40-pin DIP MCU via 2x5 male header
MCLR RB7
RA0
RB6
RA1 RB5
RA2 RB4
RA3 RB3
VCCcore RB2
RA5 RB0
E1
RE0 RB1
RE1 VCC
10uF
RE2 GND
VCC RD7
GND RD6
OSC1 RD5
OSC2 RD4
RC0 RC7
RC1 RC6
RC2 RC5
RC4
RC3
RD3
RD0
RD2
RD1
DIP40
C
E2
MCU-VCC VCC
10uF 100nF
MCU- RB6/PGC PGC- RB6
PGD- RB7
MCU- RB7/PGD
MCU-MCLR
MCLR
On-board
2x5 connector
