Dspic Tqfp64 - mikroElektronika mikroProg for PIC Manual

dsPIC TQFP64

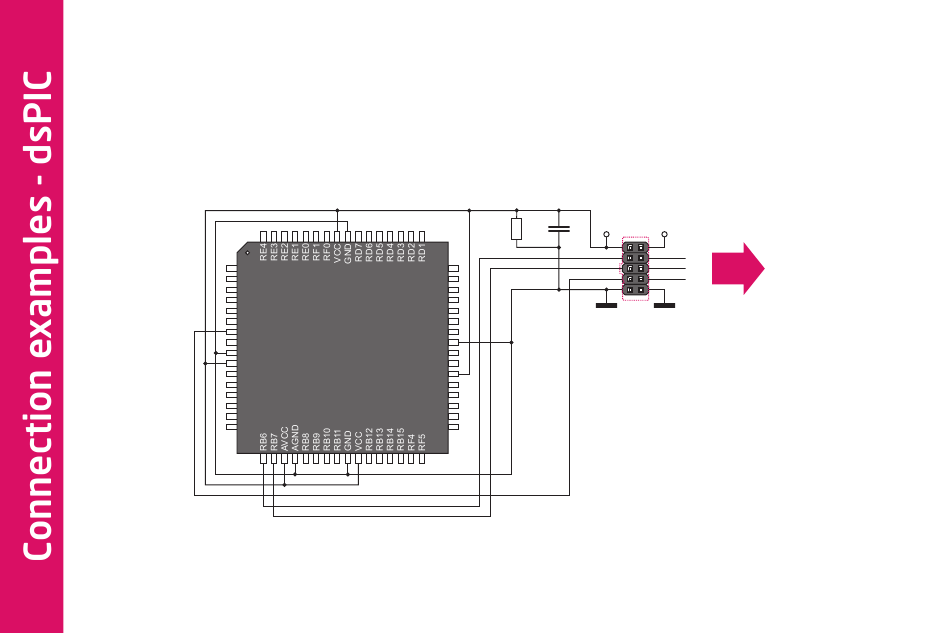

Figure 9-21: Connection schematic for
64-pin TQFP MCU via 2x5 male header
RE5
RE6
RE7
RG6
RG7
RG8
MCLR
RG9
dsPIC30F5015
GND
VCC
RB5
RB4
RB3
RB2
RB1
RB0
100nF
MCU-VCC
1K
MCU- RB6/PGC
MCU- RB7/PGD
RC14
MCU-MCLR
RC13
RD0
RD11
RD10
RD9
RD8 2x5 connector
GND
OSC2
OSC1
VCC
RG2
RG3
RF6
RF2
RF3
64 PIN
Page 32
VCC
PGC- RB6
USER
PGD- RB7
INTERFACE
MCLR
On-board
