Summary of Contents for mikroElektronika mikroProg

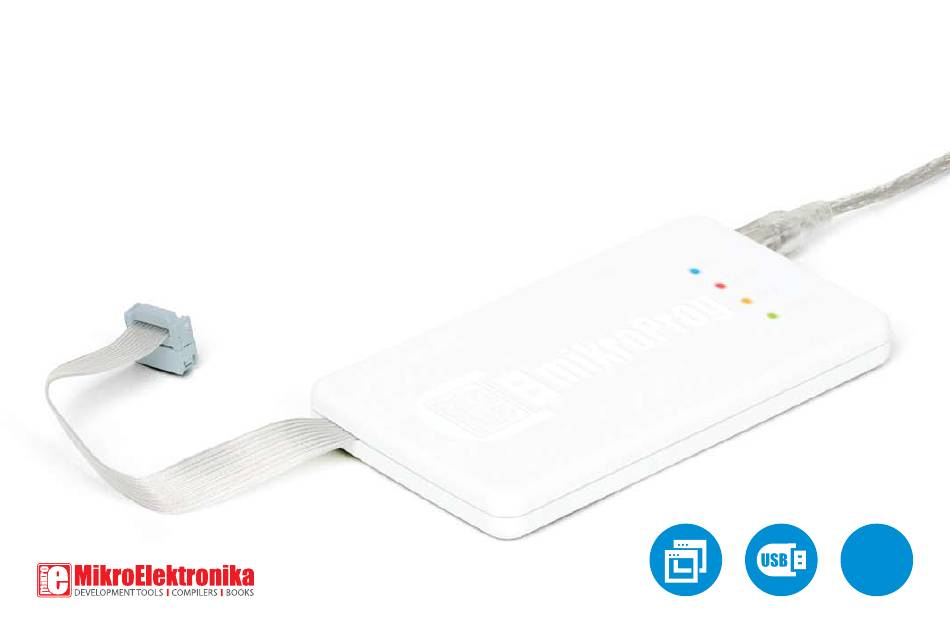

- Page 1 AVR ® ™ mikroProg for AVR is a fast USB programmer. With it’s outstanding ™ ® performance, simplicity and unique design it is a great tool for programming Atmel® AVR microcontroller family.
- Page 2 TO OUR VALUED CUSTOMERS I want to express my thanks to you for being interested in our products and for having confidence in MikroElektronika. The primary aim of our company is to design and produce high quality electronic products and to constantly improve the performance thereof in order to better suit your needs.
-
Page 3: Table Of Contents
Table of Contents Introduction to mikroProg™ 2. Connecting to a PC Key features 3. AVRFlash software 1. Driver installation 4. Connecting with a target device step 1 – Start installation 5. Connector Pinout step 2 – Accept EULA 6. Connection schematic example step 3 –... -
Page 4: Introduction To Mikroprog

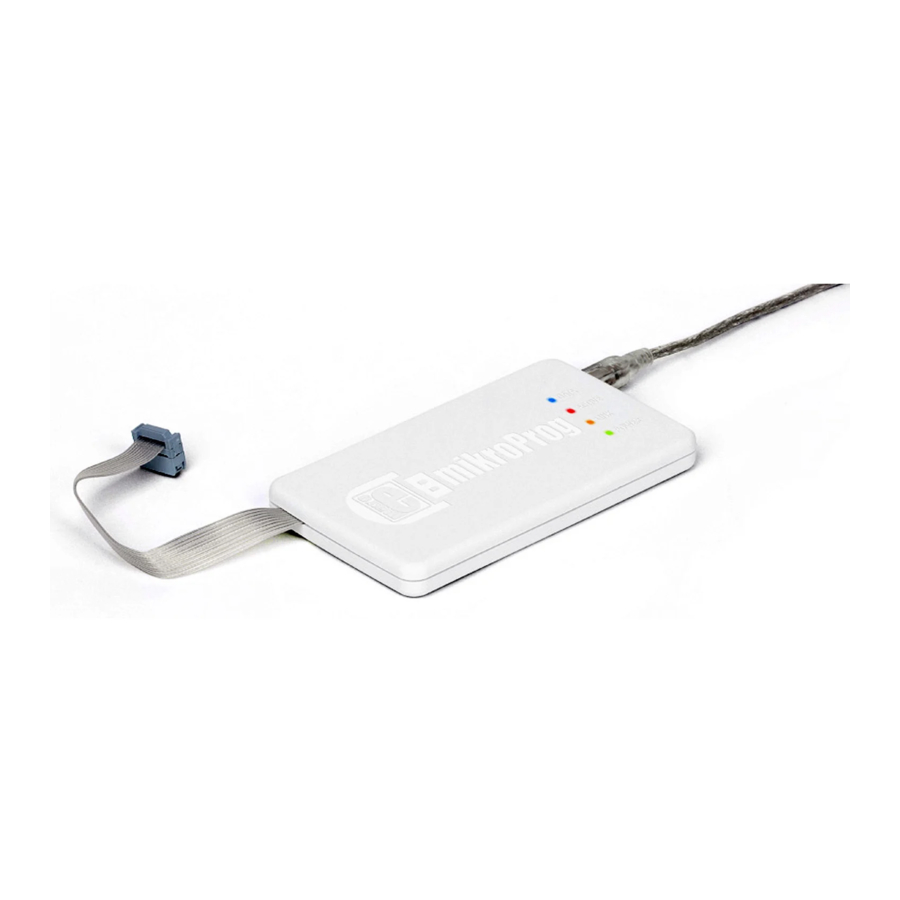

Introduction to mikroProg ™ mikroProg™ for AVR is a fast USB programmer. It is a great tool for programming Atmel® AVR microcontroller family. Outstanding ® performance, easy operation, elegant design and low price are it’s top features. Page 4... -
Page 5: Key Features
Key features What you see Flat cable USB MINIB connector DATA transfer indication LED ACTIVE indication LED LINK indication LED POWER indication LED Page 5... -
Page 6: Driver Installation
1. Driver installation mikroProg™ requires drivers in order to work. Drivers are located on the Product DVD that you received with the mikroProg™ package: PRODUCT DVD DVD://download/eng/software/ www.mikroe.com www.libstock.com development-tools/avr/avr- prog2/avrprog2_drivers_v200. Copyright ©2012 Mikroelektronika. All rights reserved. MikroElektronika, MikroElektronika logo and other MikroElektronika trademarks are the property of MikroElektronika. -
Page 7: Step 1 - Start Installation
step 1 – Start installation step 2 – Accept EULA In welcome screen click the Next> button Select I accept this EULA option Click the Next> button Page 7... -
Page 8: Step 3 - Installing The Drivers
step 3 – Installing the drivers step 4 – Finish installation Finish Click the button to end installation process Page 8... -
Page 9: Connecting To A Pc
POWER LED should turn ON, indicating the presence of power supply. Amber-colored LINK LED will turn ON when link between mikroProg for AVR ™ ® PC is established. Link can be established only when correct drivers are installed on your PC. -
Page 10: Avrflash Software
DVD://download/eng/software/ www.mikroe.com www.libstock.com development-tools/avr/avrprog2/ avrprog2_programmer_v214.zip Copyright ©2012 Mikroelektronika. All rights reserved. MikroElektronika, MikroElektronika logo and other MikroElektronika trademarks are the property of MikroElektronika. All other trademarks are the property of their respective owners. After downloading, extract Unauthorised copying, hiring, renting, public performance and broadcasting of this DVD is strictly prohibited. - Page 11 Software installation wizard Start Installation Accept EULA and continue Click Next > button Choose destination folder Installation in progress Finish installation Page 11...
-
Page 12: Connecting With A Target Device
Figure 4-1: IDC10 JTAG connector For connection with a target device mikroProg uses IDC10 connector, as shown on Figure 4-1. In order to make proper connection with the ™ target board it is necessary to pay attention to IDC10 connector pinout. Every pin has a different purpose and for easy orientation IDC10 connector is marked with a little knob and incision between pins number 9 and 7, Figure 5-1. -
Page 13: Connector Pinout
5. Connector Pinout MOSI - Master output slave input - Not connected - Reset pin - Clock MISO - Master input slave output - Power supply - Not connected - Not connected - Not connected - Ground Figure 5-1: Female connector pinout Page 13... -
Page 14: Connection Schematic Example
6. Connection schematic example Following example demonstrate connections with one of the most popular supported microcontroller. MCU use MISO, MOSI, SCK and RST lines for programming. In order for microcontroller to work properly, decoupling capacitors must be connected as close as possible to microcontroller’s VCC pins. -
Page 15: 40-Pin Atmega16 Schematic
MOSI MISO PB5 (MOSI) PB6 (MISO) PB7 (SCK) AREF AVCC 100nF XTAL2 XTAL1 8MHz 22pF 22pF 40 pin 100nF 100nF Figure 6-1: Connection schematic for 40-pin ATmega16 MCU via 2x5 male header Page 15... - Page 16 Notes: Page 16...
- Page 17 Notes: Page 17...
- Page 18 Notes: Page 18...
- Page 19 No part of this manual, including product and software described herein, may be reproduced, stored in a retrieval system, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika. The manual PDF edition can be printed for private or local use, but not for distribution.
- Page 20 If you are experiencing some problems with any of our products or just need additional information, please place your ticket at www.mikroe.com/esupport If you have any questions, comments or business proposals, mikroProg for AVR Manual ver. 1.00 do not hesitate to contact us at office@mikroe.com...
