Idc10 Pinout - mikroElektronika mikroProg for PIC Manual

MCU-VCC
(colored wire) - MCU power supply
01
MCU-PGC
- Serial programming clock
03
MCU-PGD
- ICSP data
05
MCU-MCLR
- Master clear/Programming voltage
07
GND
- Ground
09
VCC
02
These pins are used
PGC
04
for multiplexing (see
PGD
06
section 8.0 for more
MCLR
08 information)
GND
10
09
07
05
03
01

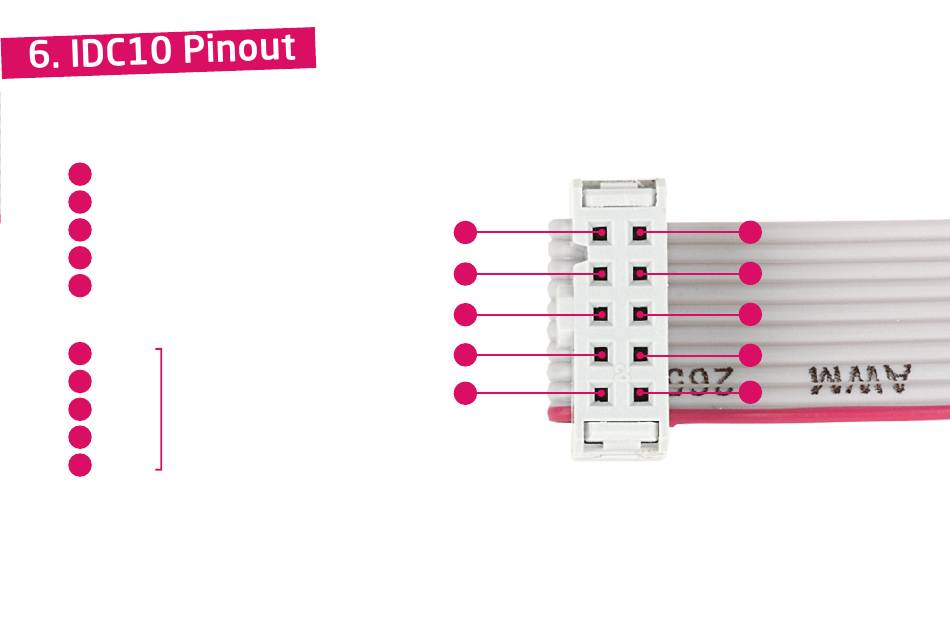

Figure 6-1: IDC10 pinout
Page 13
10
08
06
04
02
