Pic24 Dip28; Pic24 Tqfp44 - mikroElektronika mikroProg for PIC Manual

MCLR VCC
RA0 GND
RA1 RB15
RB0 RB14
RB1 RB13
RB2
RB12
RB3
RB11
GND
RB10
RA2
VCAP
RA3 GND
RB4 RB9
RA4
RB8
MCU-VCC VCC
RB7
RB5
RB6
RB9 RB4
RC6 RA8
RC7 RA3
RC8 RA2
RC9 GND
PIC24FJ1GA004-PF VCC
DISVREG
VCAP1 RC2
RB10 RC1
RB11 RC0
RB12 RB3
RB13 RB2
44 PIN
MCU-VCC
MCU- RB1/PGC
MCU- RB0/PGD
MCU-MCLR
On-board
2x5 connector
MCU-VCC VCC
PGC- RB6
MCU- RB6/PGC
MCU- RB7/PGD PGD- RB7
MCU-MCLR
MCLR
On-board
2x5 connector
Page 35

PIC24 DIP28

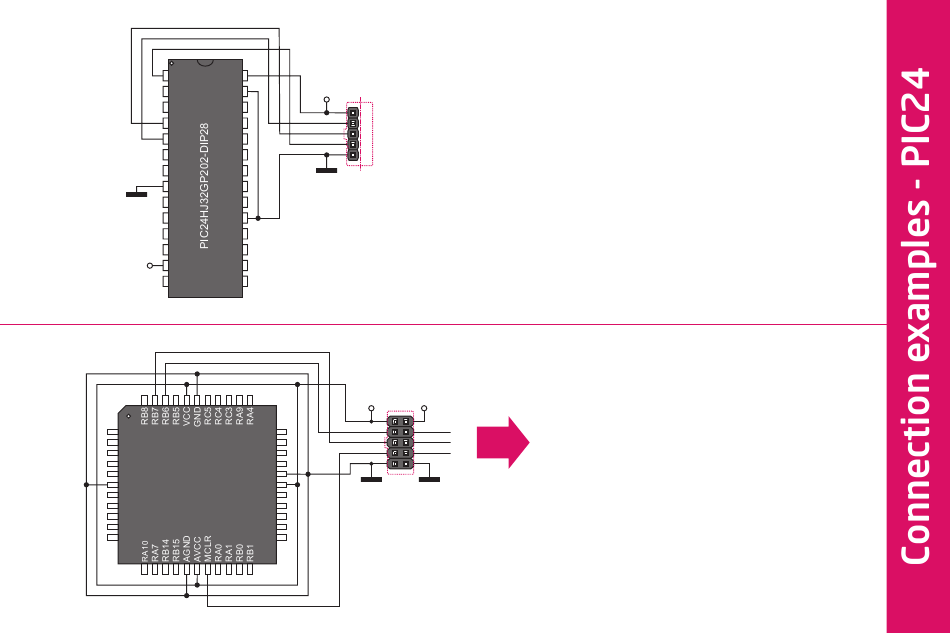

Figure 9-25: Connection
schematic for 28-pin DIP
MCU via 1x5 male header

PIC24 TQFP44

USER
INTERFACE
Figure 9-26: Connection
schematic for 44-pin TQFP
MCU via 2x5 male header
