2. SPECIFICATIONS

2.1. POWER SUPPLY SPECIFICATIONS

When using the LAN, the power supply ratings and accuracies are the same as for the digital
remote programming using RS-232 or RS-485. See the Technical Manual for Genesys™ Power
Supply for those specifications

2.2. LAN OPTION PHYSICAL DESCRIPTION

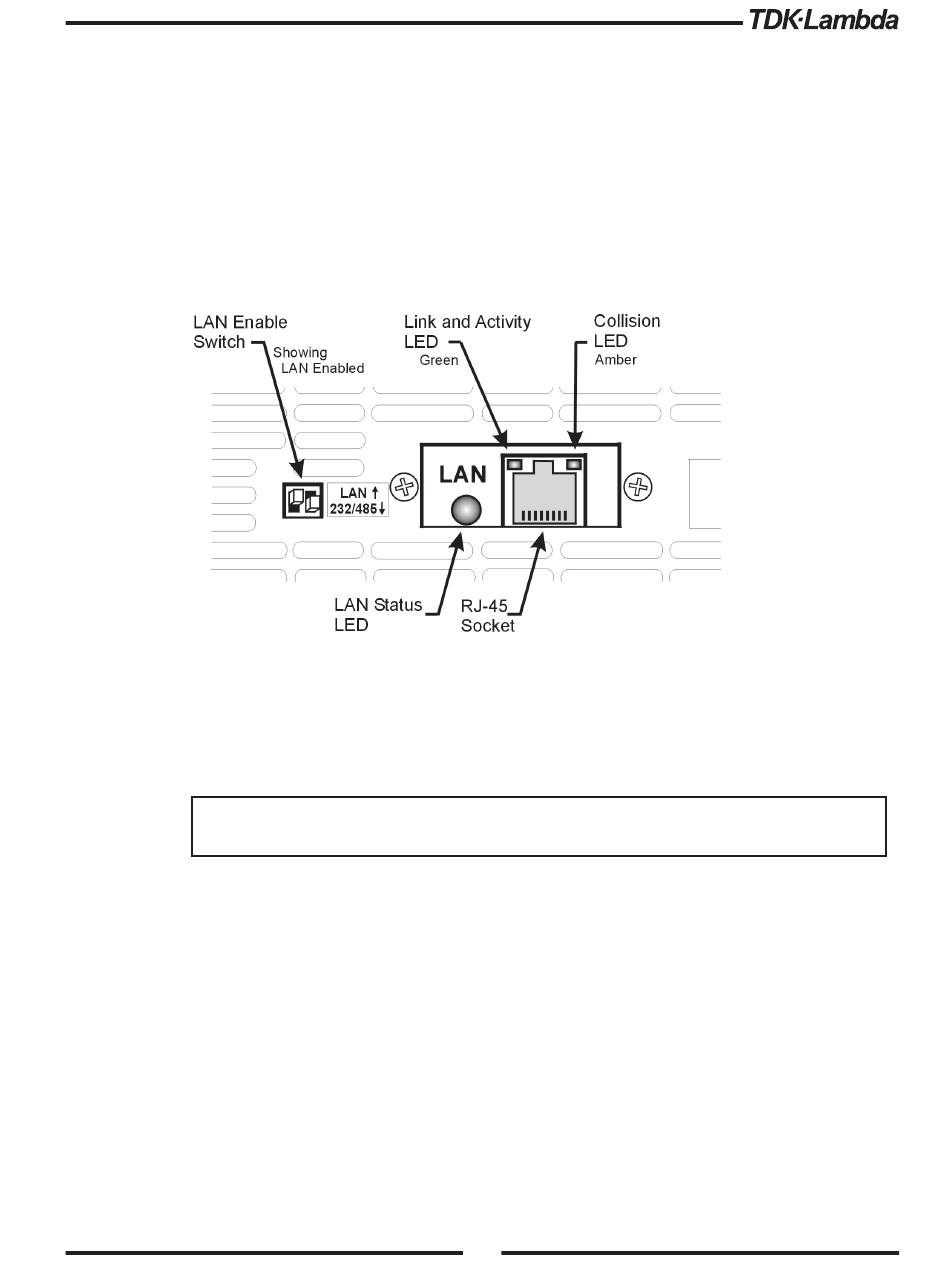

The power supply rear panel, with the LAN option installed, is shown below.
Figure 3.
2.2.1. LAN Enable Switch: This two-pole DIP switch allows you to select the LAN or the
RS-232/485 mode. The switch on the left is the only one used
The supply's AC power must be OFF to switch between the LAN and RS-232/485
modes. The change is only detected during the supply's power-up sequenc
− SWITCH UP: select the LAN mode. The power supply shows "LAn" at power-up. The
rear panel J3-IN port for RS-232/485 does not operate. The J3-OUT port may be used to
start a multi-drop chain of supplies (see section 9)
SWITCH DOWN: select the RS-232/485 mode. The power supply does not show "LAn"
−
at power-up. The rear panel J3 ports for RS-232 and RS-485 do operate. The power
supply may be used in a chain of multi-drop supplies (see section 9). See the Technical
Manual for the Genesys™ Power Supply for the description of the RS-232/485 mode
Rear Panel LAN Features
