1. GENERAL INFORMATION

1.1. INTRODUCTION

The Local Area Network (LAN) option for the Genesys
to remotely program, measure and check status of the power supply. It uses an Ethernet
connection like those used to connect computers to each other and to the Internet
A computer's web page browser may be used to operate the power supply through a built-in
web page server. For applications including factory and test automation, communication may be
done using standard network protocols and instrument commands
Refer to the Genesys
requirements, specifications, connecting the power-in and out, operating the front panel, using
the serial (RS-232/485) programming and the analog (J1) programming

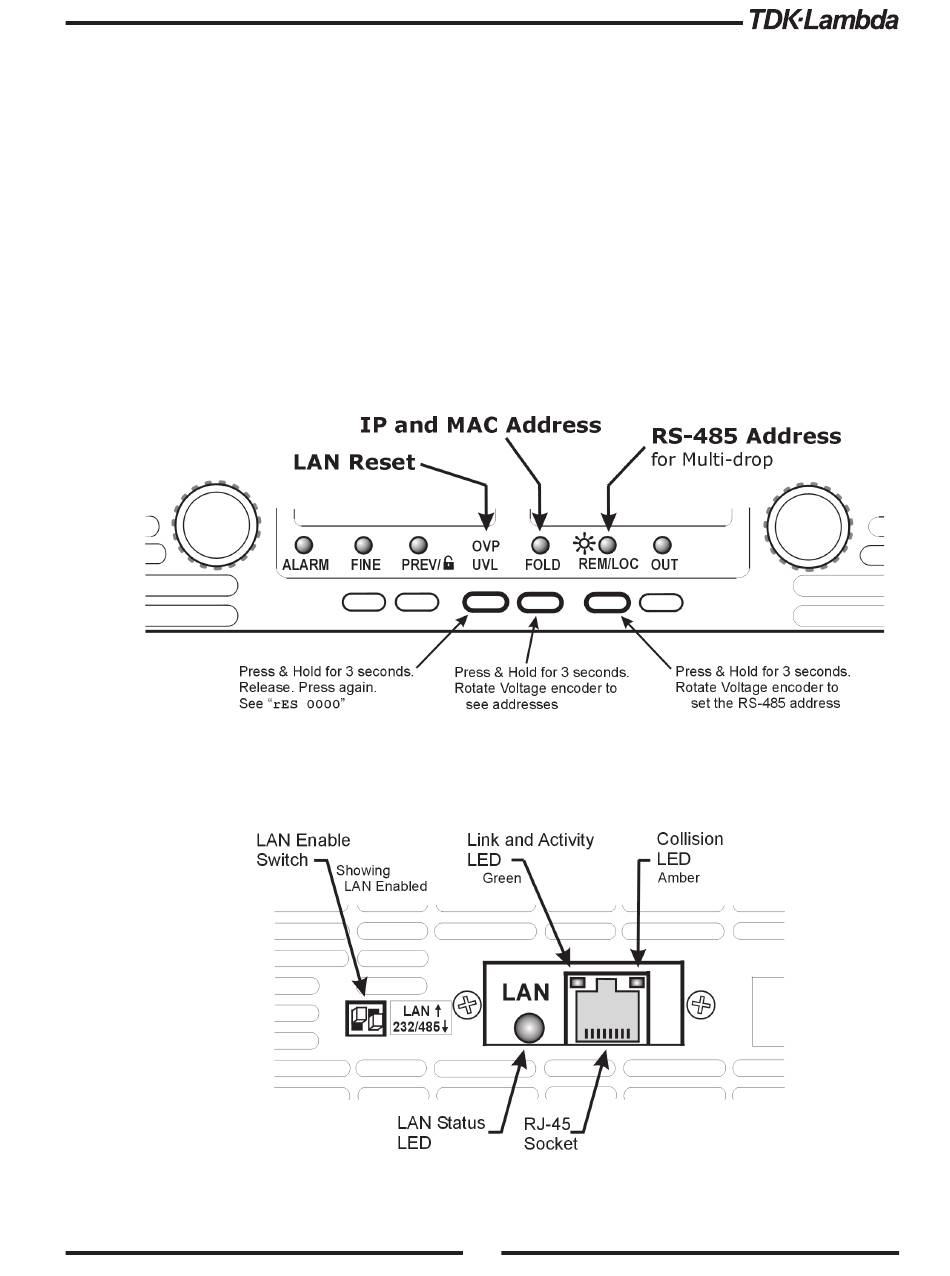

Figure 1.
Figure 2.
Technical Manual for information on installing the power supply, safety
TM
Front Panel LAN Features
Rear Panel LAN Features
1
TM series power supply allows the user
