5. Replace the printer with a new one and attach it to the holder.
6. Attach the holder and reconnect the cables.
7. Reassemble the cash register.

2.1.2.6. Replacing the external paper sensor

1. Disassemble the cash register as directed in the previous chapter.
2. Detach the printer.
3. Free the board for the external paper sensor from the holder.
Paper sensor
(P320008)
4. Change the sensor and place it into the holder, using glue, if necessary, to fix it in place.
5. Put the printer back in place.
6. Reassemble the cash register.

2.1.2.7. Replacing the journal motor reel

1. Disassemble the cash register as directed in the previous chapter.
2. Loosen the rubber band from the motor's shaft. The motor is located in the back of the upper part of the cash register
casing.
Elcom s. r. o.

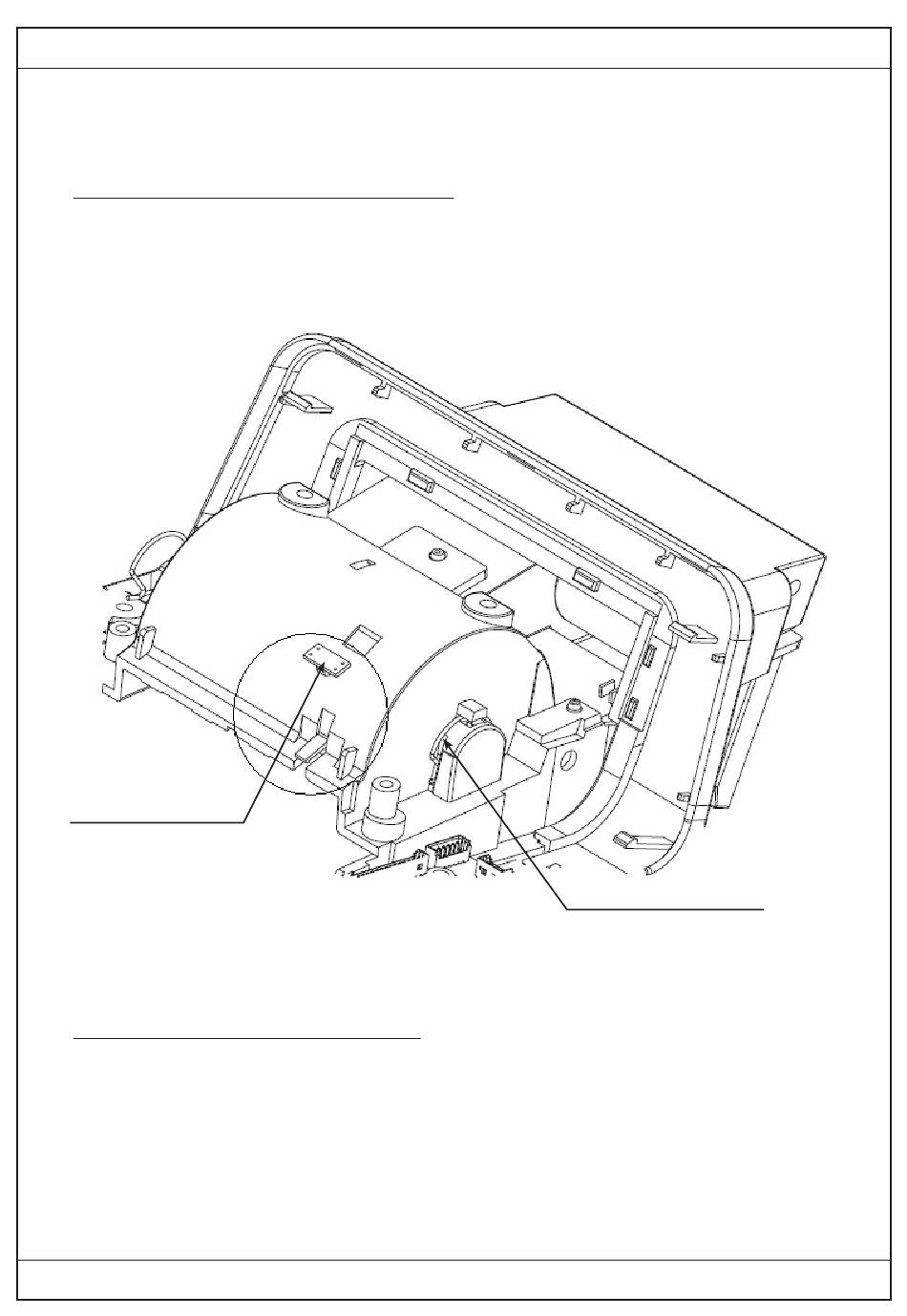

Figure 2.9. The paper sensor
