3
4、5
6
Note:
The console port of BDCOM S2952P does not support traffic control. Therefore,
you must set the option data traffic control to none when you configure the switch
with the super terminal. Otherwise, the single-pass problem will arise on the super
terminal.

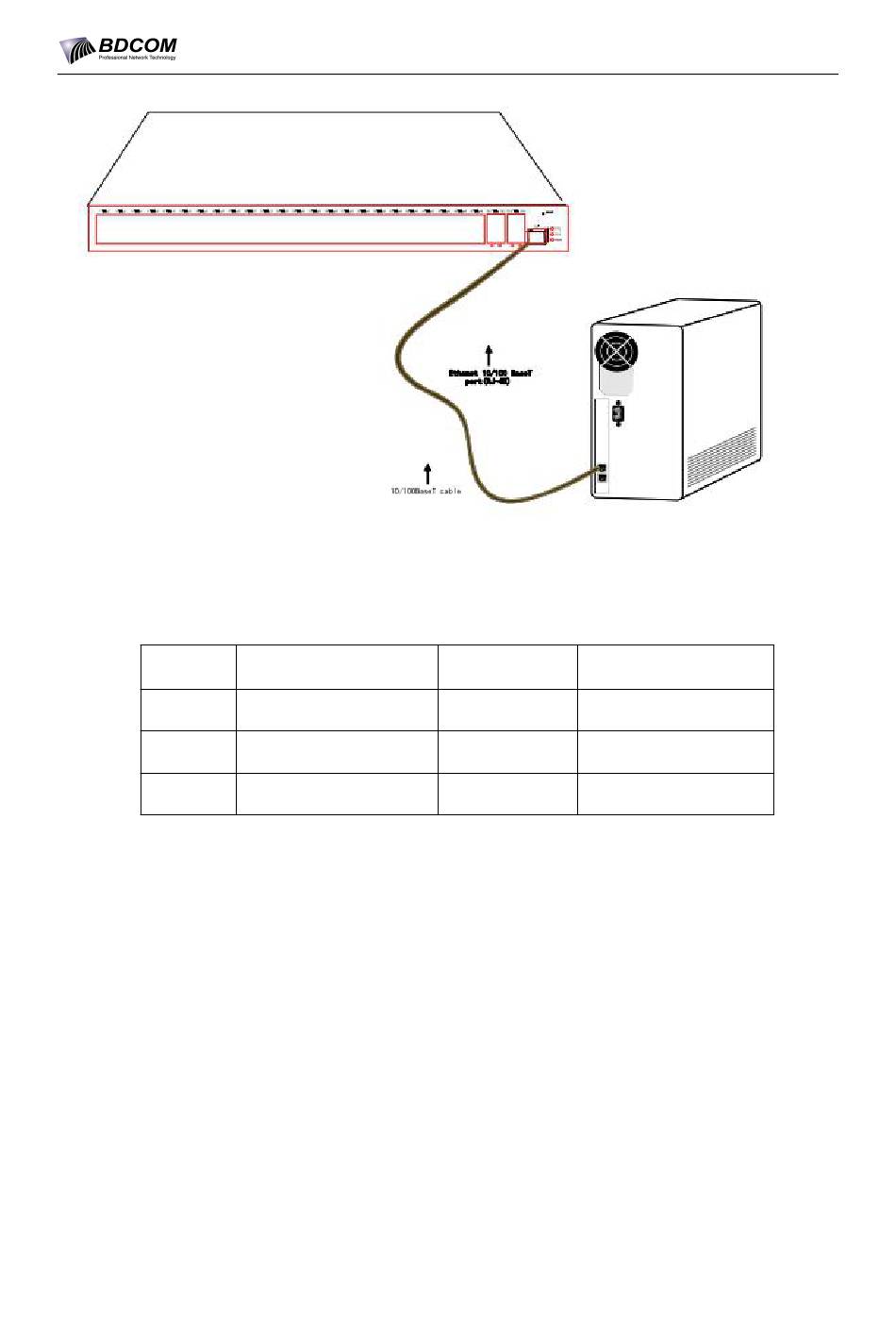

The cable is used to connect the console port of the BDCOM S2952P switch and
the outside console terminal device. One end is RJ45 port and the other end is 9-hole
plug(DB9). The plug of RJ45 is inserted into the CLI socket of BDCOM S2952P.

3.3.2 Connecting 10GE Ethernet SFP+ Ports

BDCOM S2952P provides with 4 10GE SFP+ ports, which corresponds to TE1~TE4.
You can insert the SFP module and then connect it to other Ethernet terminal devices
through the optical fiber if you want to use the 10GE SFP+ port.
Figure 3- 3 RJ-45 connector of the console port
Table 3- 1 Pins of the console port
Name
Forwarding data
Signal ground
Receiving data
BDCOM S2952P Hardware Installation Manual
Abbreviation
TXD Output
SG
RXD Input
Remarks
- 10 -
