Single Sweep - Tektronix 1S1 Instruction Manual

Calibration – Type 1S1
mVOLTS/CM
mVolts/Cm VARIABLE
VERT POSITION
DC OFFSET
TIME POSITION
FINE
SMOOTHING
SAMPLES/CM
DISPLAY MODE
MANUAL SCAN
EXT HORIZ ATTEN
TIME/CM
Time/Cm VARIABLE
TRIGGER SOURCE
TRIGGER SENSITIVITY
RECOVERY TIME
5-26

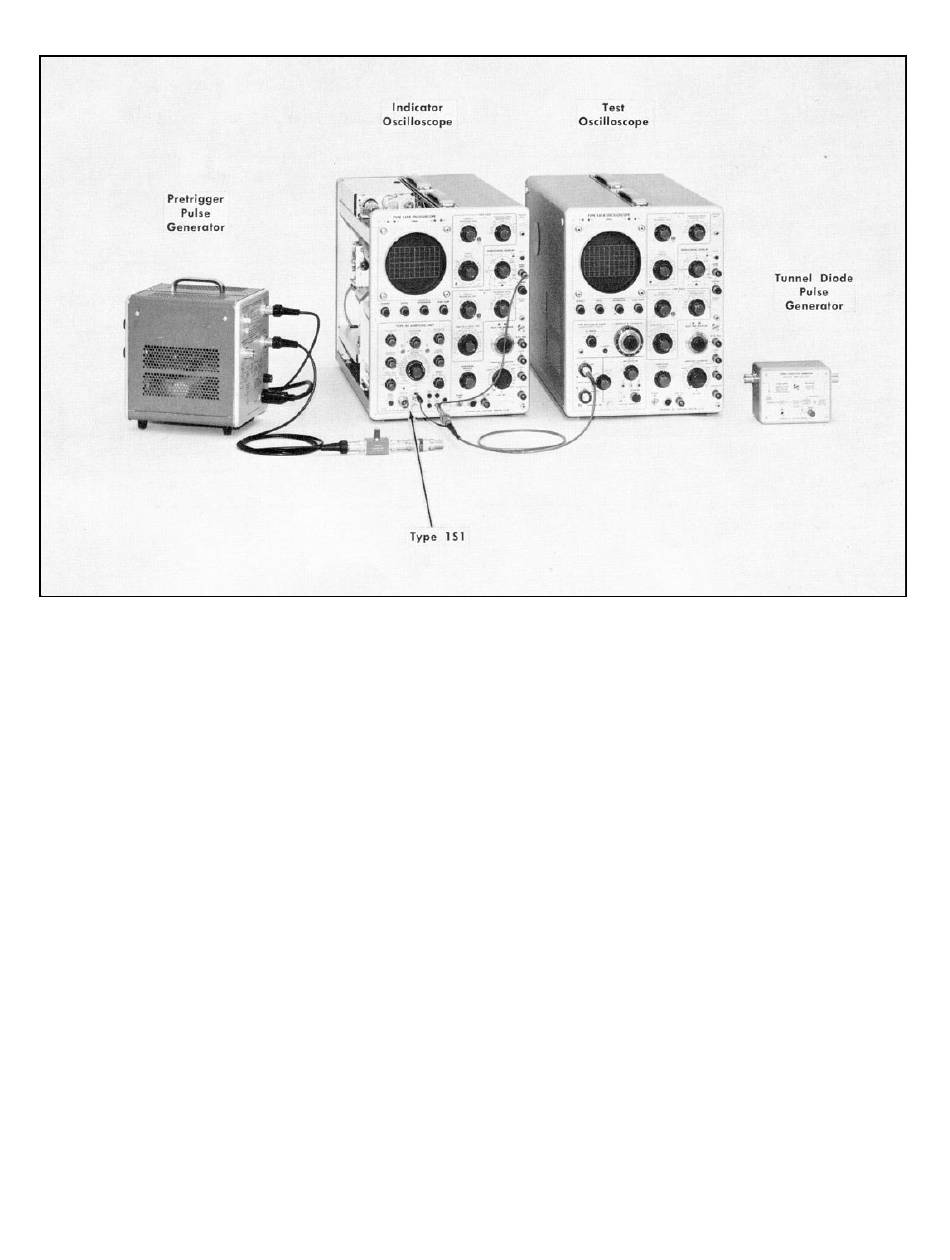

Fig. 5-29. Initial test equipment setup for steps 18 through 20
Type 1S1
200
CAL
Centered
Centered
Centered
Centered
NORM (Clockwise)
MIN (Clockwise)

SINGLE SWEEP

Clockwise
5 nSEC
CAL
INT +
Clockwise
Centered
Indicator Oscilloscope
Stability (both time bases)
Horizontal Display
Amplitude Calibrator
Crt Cathode Selector
Test Oscilloscope
Horizontal Display
Time Base A controls:
Trigger Slope
Triggering Mode
Stability
Triggering Level
Time/Cm
Time/Cm Variable
Time Base 8 Stability
Counterclockwise (not Pre-
set)
Ext Horiz Input
Off
Chopped Blanking
A
Int +
Ac
Clockwise
Clockwise
5 µSEC
Calibrated (at detent)
Counterclockwise (not Pre-
set)
