Tektronix 1S1 Instruction Manual page 122

Type 1S1
mVOLTS/CM
mVolts/Cm VARIABLE
VERT POSITION
DC OFFSET
TIME POSITION
FINE
SMOOTHING
SAMPLES/CM
DISPLAY MODE
MANUAL SCAN
EXT HORIZ ATTEN
TIME/CM
Time/Cm VARIABLE
TRIGGER SOURCE
TRIGGER SENSITIVITY
RECOVERY TIME

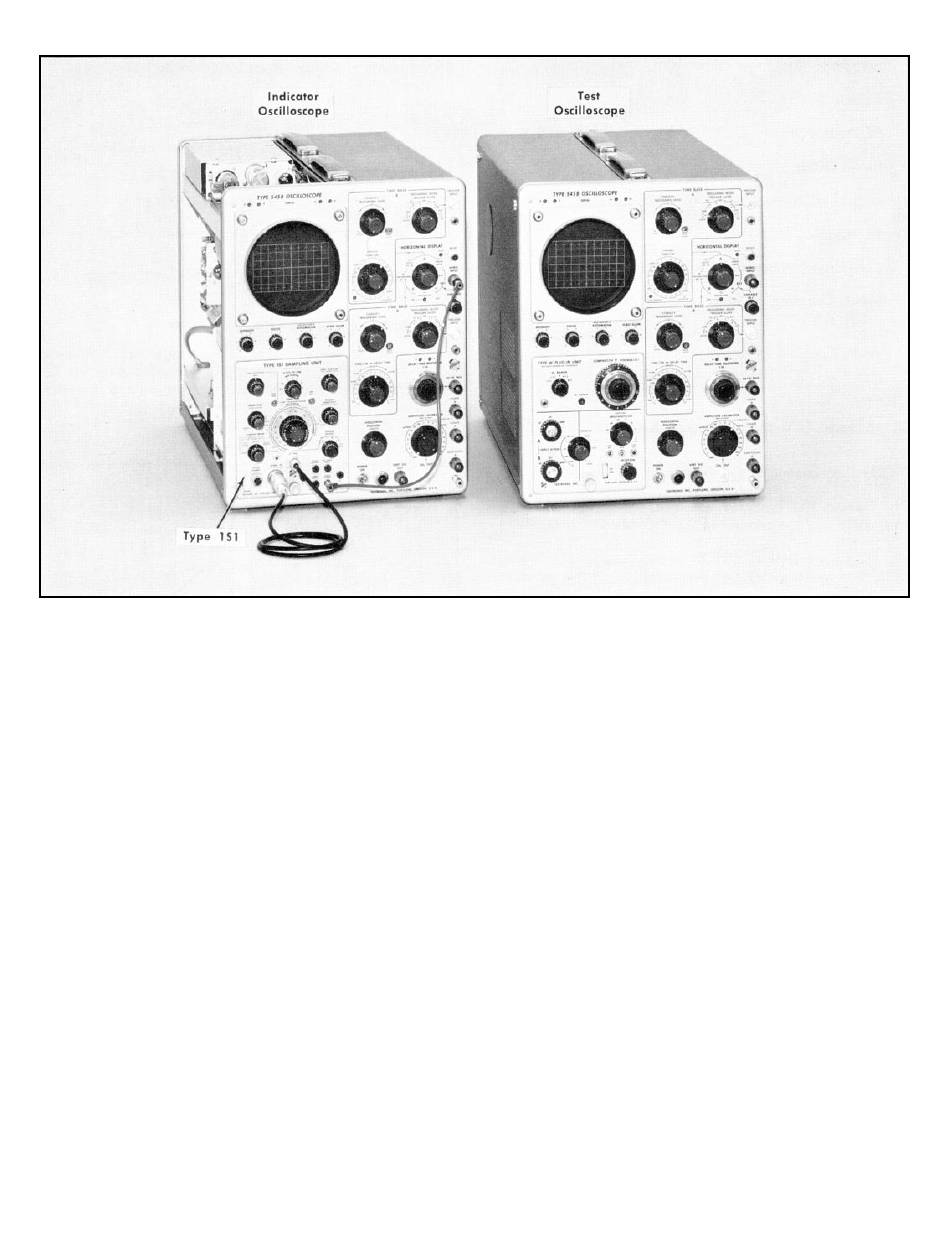

Fig. 5-64. Initial test equipment setup for steps 44 and 45.
10
CAL
Centered
Centered
Centered
Centered
NORM (Clockwise)
Normal display
NORMAL
Clockwise
2 nSEC
CAL
EXT +
Clockwise
Counterclockwise (not
at SYNC)
Indicator Oscilloscope
Stability (both time bases)
Horizontal Display
Intensity
Amplitude Calibrator
Crt Cathode Selector
Test Oscilloscope
Horizontal Display
Time Base A controls:
Trigger Slope
Triggering Mode
Stability
Triggering Level
Time/Cm
Time/Cm Variable
Time Base B Stability
Calibration – Type 1S1
Counterclockwise (not Pre-
set)
Ext Horiz Input
Normal Brightness
Off
Chopped Blanking
A
Int +
Ac
Clockwise
Clockwise
2 µsec
Calibrated (at detent)
Counterclockwise (not Pre-
set)
5-59
