Recovery Time - Tektronix 1S1 Instruction Manual

Calibration – Type 1S1
mVOLTS/CM
mVolts/Cm VARIABLE
VERT POSITION
DC OFFSET
TIME POSITION
FINE
SMOOTHING
SAMPLES/CM
DISPLAY MODE
MANUALSCAN EXT HORIZ ATTEN
5-32

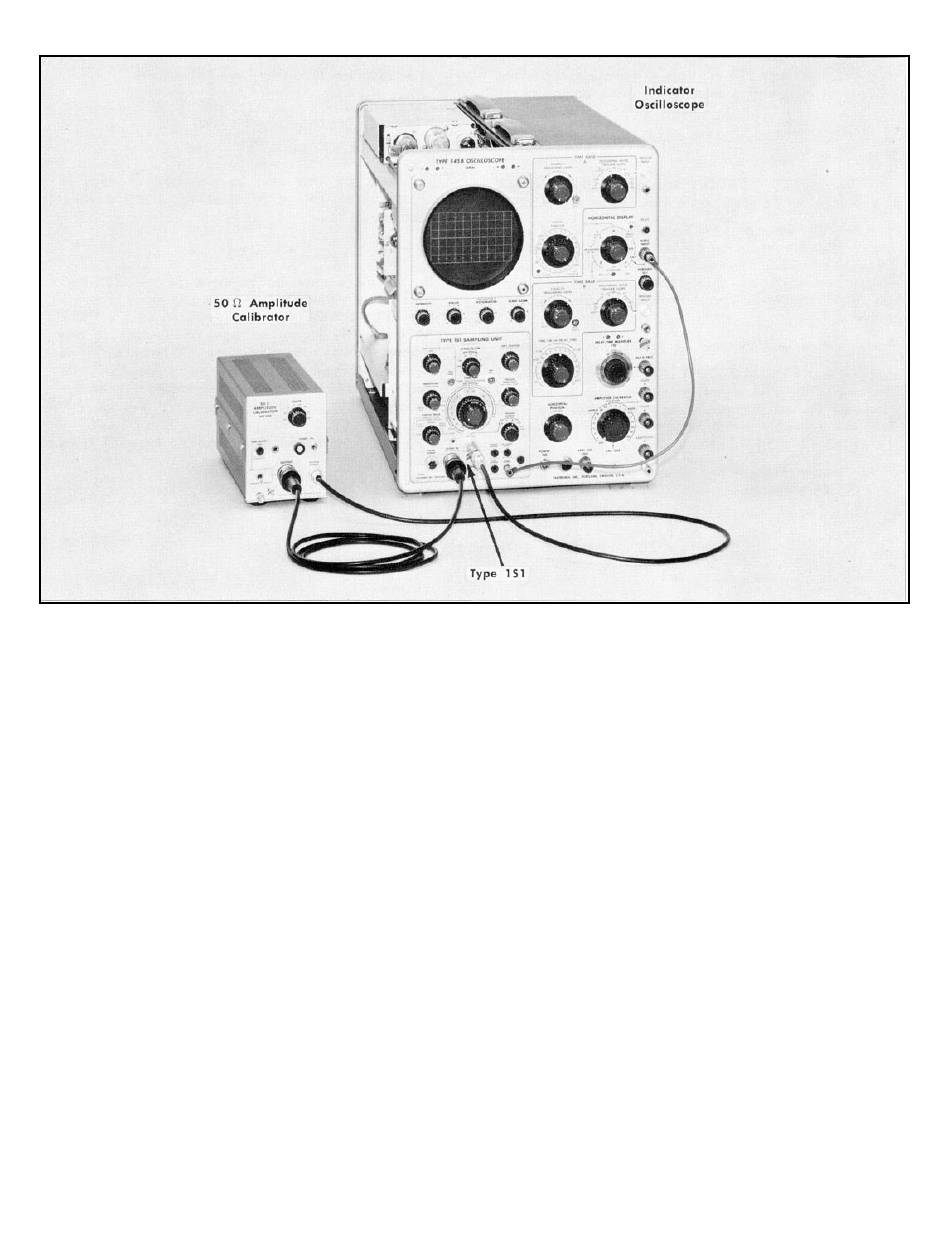

Fig. 5-36 initial test equipment setup for steps 21 through 23
Type 1S1
200
CAL
Centered
Centered
Centered
Centered
NORM (Clockwise)
Normal display
NORMAL
Clockwise
TIME/CM
Time/Cm VARIABLE
TRIGGER SOURCE
TRIGGER SENSITIVITY

RECOVERY TIME

Indicator Oscilloscope
Stability (both time bases)
Horizontal Display
Intensity
Amplitude Calibrator
Crt Cathode Selector
5µSEC
CAL
EXT +
Clockwise
Centered
Counterclockwise (not Pre-
set)
Ext Horiz Input
Normal Brightness
Off
Chopped Blanking
