Calibration – Type 1S1
TYPE 1S1
mVOLTS/CM
mVolts/Cm VARIABLE
VERT POSITION
DC OFFSET
TIME POSITION
FINE
SMOOTHING
SAMPLES/CM

DISPLAY MODE

MANUAL SCAN
EXT HORIZ ATTEN
TIME/CM
Time/Cm VARIABLE
TRIGGER SOURCE
TRIGGER SENSITIVITY
RECOVERY TIME
5-14

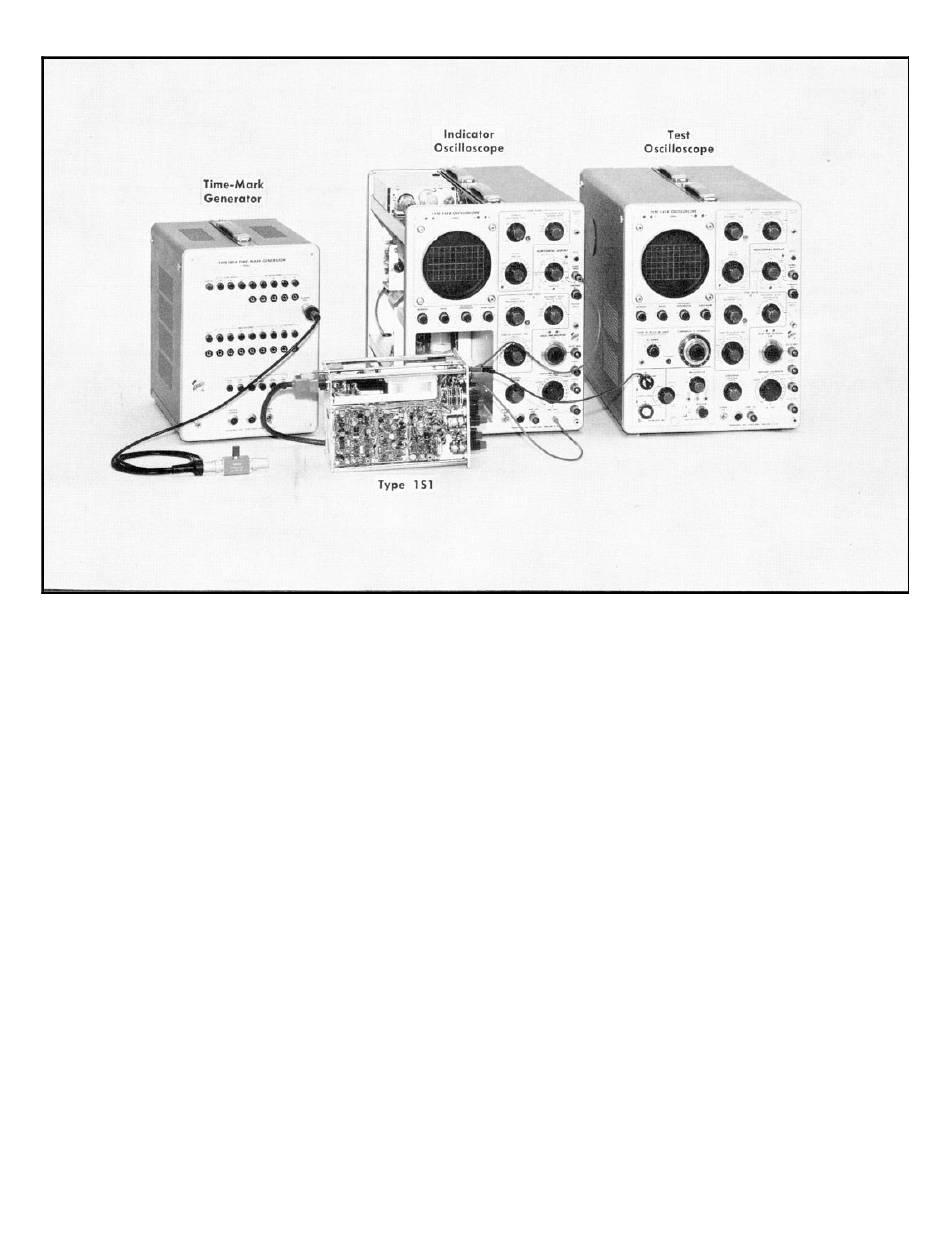

Fig. 5-14. Initial test equipment setup for steps B through 10.
200
CAL
Centered
Centered
Centered
Centered
NORM (Clockwise)
Centered
EXT HORIZ
Counterclockwise
.5 µSEC
CAL
FREE RUN
Clockwise
Centered
Indicator Oscilloscope
Stability (both time bases)
Horizontal Display
Intensity
Amplitude Calibrator
Crt Cathode Selector
Test Oscilloscope
Horizontal Display
Time Base A controls:
Trigger Slope
Triggering Mode
Stability
Triggering Level
Time/Cm
Time/Cm Variable
Time Base B Stability
Counterclockwise (not
Preset)
Ext Horiz Input
Normal brightness of
dot
10 Volts
Chopped Blanking
A
Int +
Ac
Clockwise
Clockwise
.5 mSec:
Calibrated (at detent)
Counterclockwise (not
Preset)
