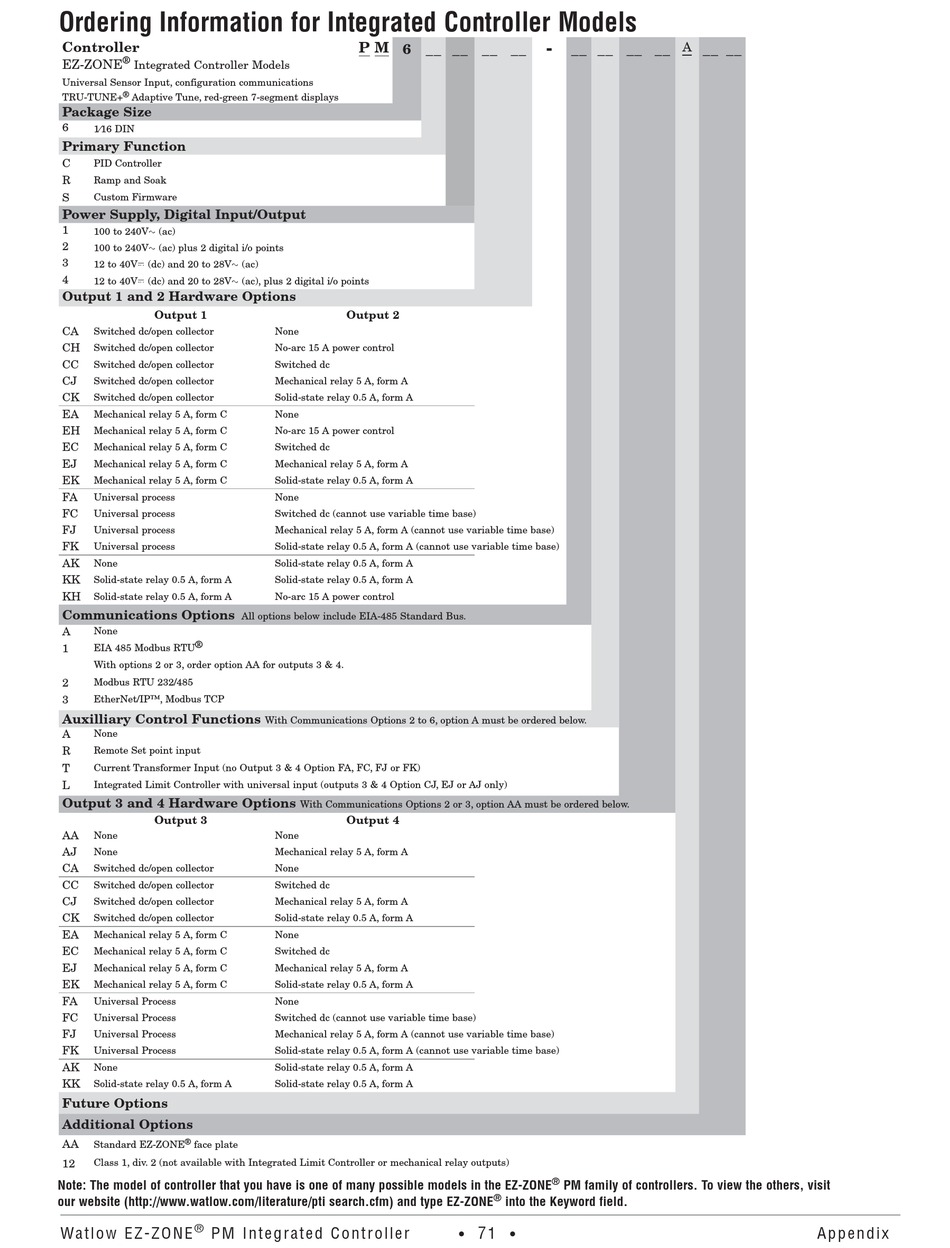

Ordering Information for Integrated Controller Models

Controller
®
EZ-ZONE
Integrated Controller Models
Universal Sensor Input, configuration communications
®
TRU-TUNE+ Adaptive Tune, red-green 7-segment displays
Package Size
6
1⁄16 DIN
Primary Function
C
PID Controller
R Ramp and Soak
S Custom Firmware
Power Supply, Digital Input/Output
1
100 to 240VÅ (ac)
2
100 to 240VÅ (ac) plus 2 digital i/o points
3
12 to 40VÎ (dc) and 20 to 28VÅ (ac)
4
12 to 40VÎ (dc) and 20 to 28VÅ (ac), plus 2 digital i/o points
Output 1 and 2 Hardware Options
Output 1
CA
Switched dc/open collector
CH Switched dc/open collector
CC
Switched dc/open collector
CJ
Switched dc/open collector
CK Switched dc/open collector
EA Mechanical relay 5 A, form C
EH
Mechanical relay 5 A, form C
EC Mechanical relay 5 A, form C
EJ
Mechanical relay 5 A, form C
EK Mechanical relay 5 A, form C
FA Universal process
FC
Universal process
FJ
Universal process
FK
Universal process
AK
None
KK Solid-state relay 0.5 A, form A
KH Solid-state relay 0.5 A, form A
Communications Options
A None
EIA 485 Modbus RTU ®
1
With options 2 or 3, order option AA for outputs 3 & 4.
2 Modbus RTU 232/485
3 EtherNet/IP™, Modbus TCP
Auxilliary Control Functions
A None
R Remote Set point input
T Current Transformer Input (no Output 3 & 4 Option FA, FC, FJ or FK)
L Integrated Limit Controller with universal input (outputs 3 & 4 Option CJ, EJ or AJ only)
Output 3 and 4 Hardware Options
Output 3
AA None
AJ
None
CA Switched dc/open collector
CC Switched dc/open collector
CJ
Switched dc/open collector
CK Switched dc/open collector
EA Mechanical relay 5 A, form C
EC
Mechanical relay 5 A, form C
EJ Mechanical relay 5 A, form C
EK
Mechanical relay 5 A, form C
FA
Universal Process
FC Universal Process
FJ
Universal Process
FK Universal Process
AK None
KK
Solid-state relay 0.5 A, form A
Future Options
Additional Options
®
AA
Standard EZ-ZONE face plate
12 Class 1, div. 2 (not available with Integrated Limit Controller or mechanical relay outputs)
Note: The model of controller that you have is one of many possible models in the EZ-ZONE
our website (http://www.watlow.com/literature/pti search.cfm) and type EZ-ZONE
®
Watlow E Z-Z ON E PM In t e gr a te d C ontr ol le r
P M 6 __ __ __ __
Output 2
None
No-arc 15 A power control
Switched dc
Mechanical relay 5 A, form A
Solid-state relay 0.5 A, form A
None
No-arc 15 A power control
Switched dc
Mechanical relay 5 A, form A
Solid-state relay 0.5 A, form A
None
Switched dc (cannot use variable time base)
Mechanical relay 5 A, form A (cannot use variable time base)
Solid-state relay 0.5 A, form A (cannot use variable time base)
Solid-state relay 0.5 A, form A
Solid-state relay 0.5 A, form A
No-arc 15 A power control
All options below include EIA-485 Standard Bus.
With Communications Options 2 to 6, option A must be ordered below.
With Communications Options 2 or 3, option AA must be ordered below.
Output 4
None
Mechanical relay 5 A, form A
None
Switched dc
Mechanical relay 5 A, form A
Solid-state relay 0.5 A, form A
None
Switched dc
Mechanical relay 5 A, form A
Solid-state relay 0.5 A, form A
None
Switched dc (cannot use variable time base)
Mechanical relay 5 A, form A (cannot use variable time base)
Solid-state relay 0.5 A, form A (cannot use variable time base)
Solid-state relay 0.5 A, form A
Solid-state relay 0.5 A, form A
-
__ __ __ __
®
PM family of controllers. To view the others, visit
®
into the Keyword field.
71
• •
A
__ __
Ap pe nd i x
