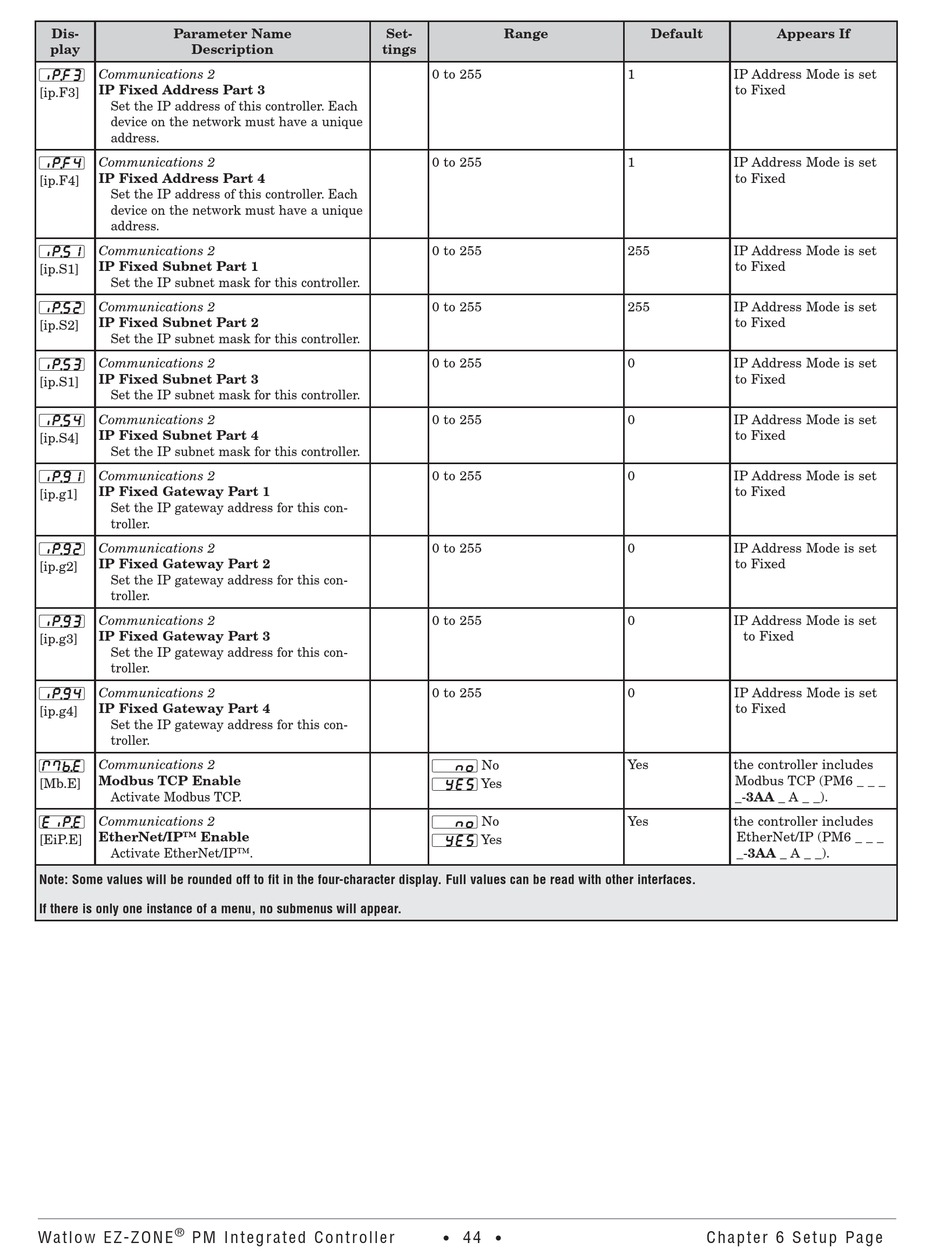

Dis- Parameter Name
play Description
[iP; F 3] Communications 2
IP Fixed Address Part 3
[ip.F3]
Set the IP address of this controller. Each
device on the network must have a unique
address.
[iP; F 4] Communications 2
IP Fixed Address Part 4
[ip.F4]
Set the IP address of this controller. Each
device on the network must have a unique
address.
[iP; S 1] Communications 2
IP Fixed Subnet Part 1
[ip.S1]
Set the IP subnet mask for this controller.
[iP; S 2] Communications 2
IP Fixed Subnet Part 2
[ip.S2]
Set the IP subnet mask for this controller.
[iP; S 3]
Communications 2
IP Fixed Subnet Part 3
[ip.S1]
Set the IP subnet mask for this controller.
[iP; S 4] Communications 2
IP Fixed Subnet Part 4
[ip.S4]
Set the IP subnet mask for this controller.
[iP; g 1] Communications 2
IP Fixed Gateway Part 1
[ip.g1]
Set the IP gateway address for this con-
troller.
[iP; g 2] Communications 2
IP Fixed Gateway Part 2
[ip.g2]
Set the IP gateway address for this con-
troller.
[iP; g 3] Communications 2
IP Fixed Gateway Part 3
[ip.g3]
Set the IP gateway address for this con-
troller.
[iP; g 4]
Communications 2
IP Fixed Gateway Part 4
[ip.g4]
Set the IP gateway address for this con-
troller.
[Mb; E ] Communications 2
Modbus TCP Enable
[Mb.E]
Activate Modbus TCP.
[EiP; E ] Communications 2
EtherNet/IP™ Enable
[EiP.E]
Activate EtherNet/IP™.
Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.
If there is only one instance of a menu, no submenus will appear.
®
Watl o w EZ-ZO N E PM I n te g r a t ed Co n t r o l le r
Set- Range
tings
0 to 255
0 to 255
0 to 255
0 to 255
0 to 255
0 to 255
0 to 255
0 to 255
0 to 255
0 to 255
[``no] No
[`YES} Yes
[``no] No
[`YES} Yes
44
• •
Default Appears If
1 IP Address Mode is set
to Fixed
1 IP Address Mode is set
to Fixed
255 IP Address Mode is set
to Fixed
255 IP Address Mode is set
to Fixed
0 IP Address Mode is set
to Fixed
0 IP Address Mode is set
to Fixed
0 IP Address Mode is set
to Fixed
0 IP Address Mode is set
to Fixed
0 IP Address Mode is set
to Fixed
0 IP Address Mode is set
to Fixed
Yes the controller includes
Modbus TCP (PM6 _ _ _
_-3AA _ A _ _).
Yes the controller includes
EtherNet/IP (PM6 _ _ _
_-3AA _ A _ _).
Ch apter 6 S etup Pa ge
