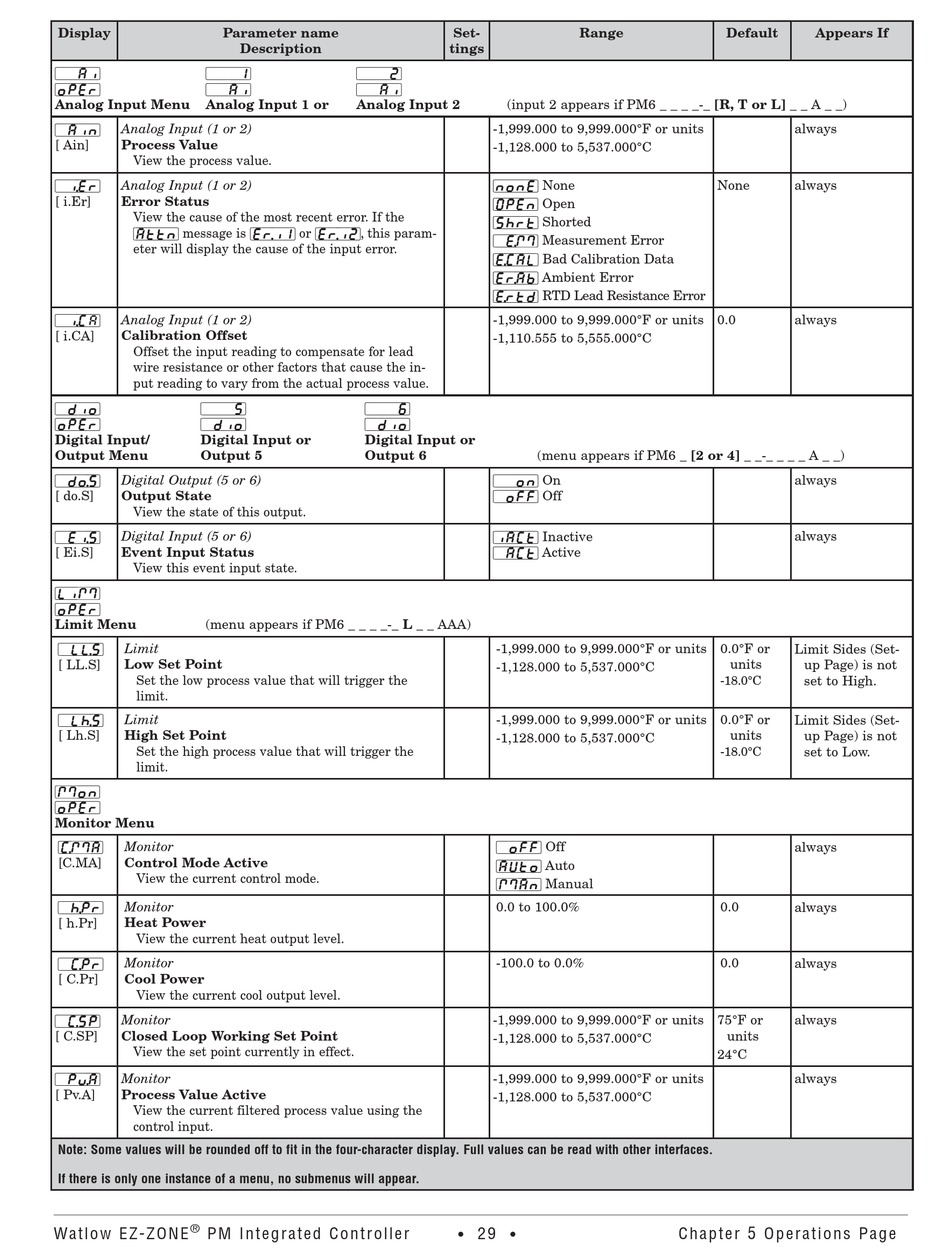

Display Parameter name
[``Ai] [```1]
[oPEr] [``Ai]
Analog Input Menu Analog Input 1 or
[`Ain] Analog Input (1 or 2)
[ Ain] Process Value
View the process value.
[`i; E r]
Analog Input (1 or 2)
[ i.Er] Error Status
View the cause of the most recent error. If the
[Attn] message is [Er; i 1] or [Er; i 2], this param-
eter will display the cause of the input error.
[`i; C a] Analog Input (1 or 2)
[ i.CA] Calibration Offset
Offset the input reading to compensate for lead
wire resistance or other factors that cause the in-
put reading to vary from the actual process value.
[`dio] [```5]
[oPEr] [`dio]
Digital Input/ Digital Input or
Output Menu Output 5
[`do; S ]
Digital Output (5 or 6)
[ do.S] Output State
View the state of this output.
[`Ei; S ] Digital Input (5 or 6)
Event Input Status
[ Ei.S]
View this event input state.
[ LiM]
[oPEr]
Limit Menu (menu appears if PM6 _ _ _ _-_ L _ _ AAA)
[`LL; S ] Limit
Low Set Point
[ LL.S]
Set the low process value that will trigger the
limit.
[`Lh; S ] Limit
[ Lh.S] High Set Point
Set the high process value that will trigger the
limit.
[Mon]
[oPEr]
Monitor Menu
[C; M A] Monitor
[C.MA] Control Mode Active
View the current control mode.
[`h; P r] Monitor
[ h.Pr] Heat Power
View the current heat output level.
[`C; P r]
Monitor
[ C.Pr] Cool Power
View the current cool output level.
[`C; S P] Monitor
[ C.SP] Closed Loop Working Set Point
View the set point currently in effect.
[`Pu; A ] Monitor
[ Pv.A] Process Value Active
View the current filtered process value using the
control input.
Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.
If there is only one instance of a menu, no submenus will appear.
®
Wa t low EZ-ZO N E P M I n te g r a t e d Co n tr o l l er
Description
[```2]
[``Ai]
Analog Input 2
[```6]
[`dio]
Digital Input or
Output 6
Set- Range
tings
(input 2 appears if PM6 _ _ _ _-_ [R, T or L] _ _ A _ _)
-1,999.000 to 9,999.000°F or units
-1,128.000 to 5,537.000°C
[nonE] None
[OPEn] Open
[Shrt] Shorted
[`E; M ] Measurement Error
[E; C AL] Bad Calibration Data
[Er; A b] Ambient Error
[E; ; R td] RTD Lead Resistance Error
-1,999.000 to 9,999.000°F or units
-1,110.555 to 5,555.000°C
(menu appears if PM6 _ [2 or 4] _ _-_ _ _ _ A _ _)
[``on] On
[`off] Off
[iACt] Inactive
[`ACt] Active
-1,999.000 to 9,999.000°F or units
-1,128.000 to 5,537.000°C
-1,999.000 to 9,999.000°F or units
-1,128.000 to 5,537.000°C
[`off] Off
[AUto] Auto
[MAn] Manual
0.0 to 100.0%
-100.0 to 0.0%
-1,999.000 to 9,999.000°F or units
-1,128.000 to 5,537.000°C
-1,999.000 to 9,999.000°F or units
-1,128.000 to 5,537.000°C
29
• •
Default Appears If
always
None always
0.0 always
always
always
0.0°F or
Limit Sides (Set-
units
up Page) is not
-18.0°C set to High.
0.0°F or Limit Sides (Set-
units up Page) is not
set to Low.
-18.0°C
always
0.0 always
0.0 always
75°F or always
units
24°C
always
