Chapter 8: Factory Page - Watlow Integrated Controller User Manual Rev C EZ-ZONE PM User Manual

8

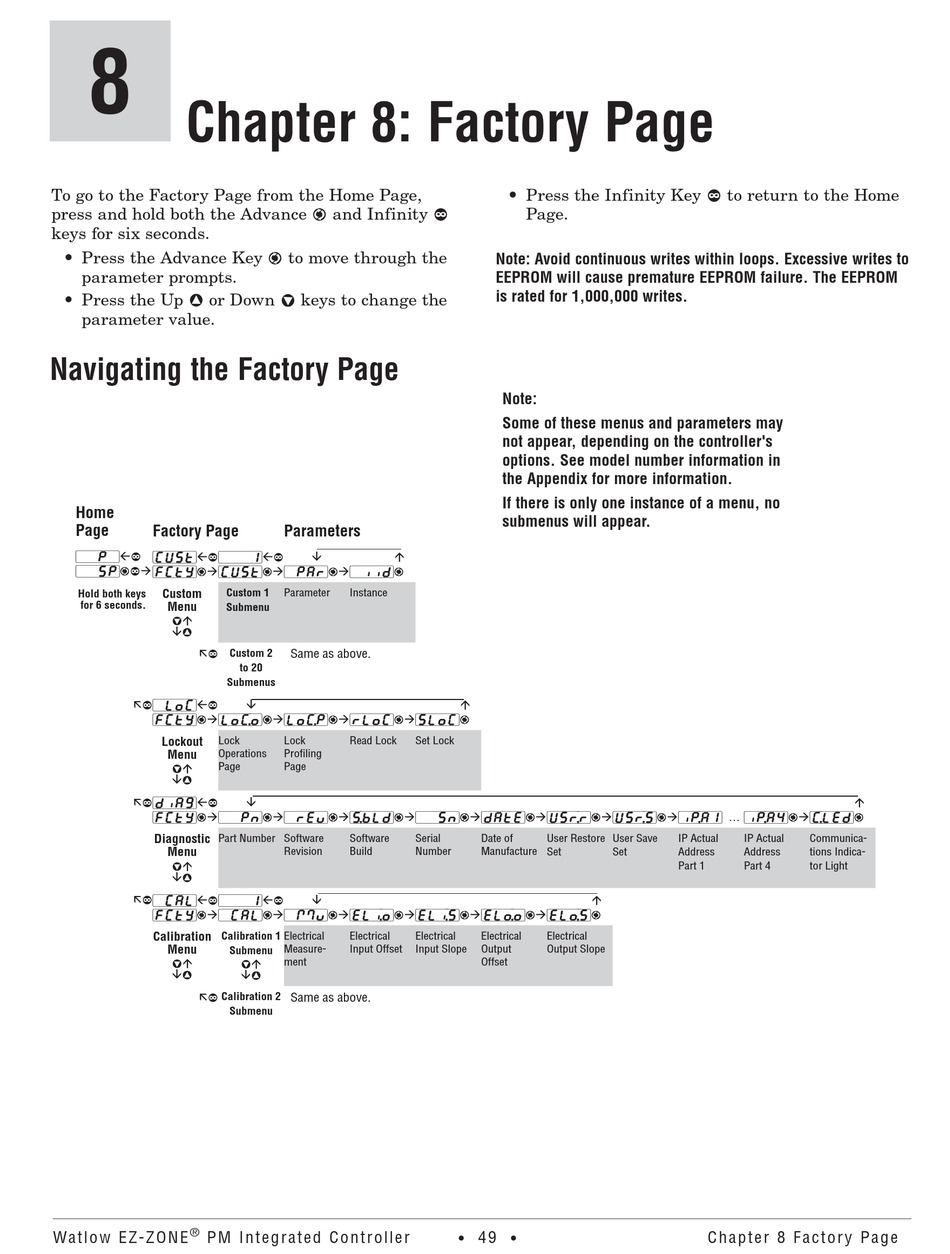

Chapter 8: Factory Page

To go to the Factory Page from the Home Page,
press and hold both the Advance ‰ and Infinity ˆ
keys for six seconds.
• Press the Advance Key ‰ to move through the
parameter prompts.
• Press the Up ¿ or Down ¯ keys to change the
parameter value.
Navigating the Factory Page
Home
Page Factory Page
ˆ
[~~p~] ˆ
[CUST] [```I]
‰ˆ ‰
[~~Sp] [FCty] [CUST]
Custom Custom 1
Hold both keys
for 6 seconds.
Menu
Submenu
<
>
ˆ Custom 2
Submenus
ˆ ˆ
[`LoC]
‰
[FCty] [LoC; o ]
Lockout Lock
Menu Operations
Page
<
>
ˆ ˆ
[diAg]
‰
[FCty] [``Pn]
Diagnostic Part Number Software
Menu
<
>
ˆ ˆ
[`CAL] [~~~I]
‰
[FCty] [`CAl]
Calibration Calibration 1
Menu
<
>
ˆ Calibration 2
®
Wa t low EZ-ZO N E P M I n te g r a t e d Co n tr o l l er
Parameters
ˆ
‰ ‰ ‰
[`PAr] [`iid]
Parameter Instance
Same as above.
to 20
‰ ‰ ‰
[LoC; P ] [rLoC]
Lock Read Lock
Profi ling
Page
‰ ‰ ‰
[`rEu] [S; b Ld]
Software
Revision Build
ˆ
‰ ‰ ‰
[`Mu] [ELi; o ]
Electrical Electrical
Measure- Input Offset
Submenu
ment
<
>
Same as above.
Submenu
• Press the Infinity Key ˆ to return to the Home
Page.
Note: Avoid continuous writes within loops. Excessive writes to
EEPROM will cause premature EEPROM failure. The EEPROM
is rated for 1,000,000 writes.
Note:
Some of these menus and parameters may
not appear, depending on the controller's
options. See model number information in
the Appendix for more information.
If there is only one instance of a menu, no
submenus will appear.
‰
[SLoC]
Set Lock
‰ ‰ ‰
[``Sn] [dAtE] [USr; r ]
Serial Date of User Restore
Number Manufacture
Set
‰ ‰ ‰
[ELi; S ] [ELo; o ] [ELo; S ]
Electrical Electrical Electrical
Input Slope Output Output Slope
Offset
49
• •
‰ ‰
[USr; S ] [iP; A 1] [iP; A 4]
...
User Save IP Actual IP Actual
Set Address Address
Part 1 Part 4
Chapter 8 Factor y Pa ge
‰
[C; L Ed]
Communica-
tions Indica-
tor Light
