Warning:
Use National Electric (NEC)
or other country-specific
standard wiring and safety
practices when wiring and
connecting this controller to
a power source and to elec-
trical sensors or peripheral
devices. Failure to do so may
result in damage to equip-
ment and property, and/or
injury or loss of life.
Note:
Maximum wire size termina-
tion and torque rating:
• 0.0507 to 3.30 mm 2 (30 to
12 AWG) single-wire termi-
nation or two 1.31 mm 2 (16
AWG)
• 0.8 Nm (7.0 lb.-in.) torque
Note:
Adjacent terminals may be
labeled differently, depend-
ing on the model number.
Note:
To prevent damage to the
controller, do not connect
wires to unused terminals.
Note:
Maintain electrical isolation
between analog input 1, digi-
tal input-outputs, switched
dc/open collector outputs and
process outputs to prevent
ground loops.
Note:
The control output common
terminal and the digital com-
mon terminal are referenced
to different voltages and
must remain isolated.
Quencharc Note:
Switching pilot duty inductive
loads (relay coils, solenoids,
etc.) with the mechanical
relay, solid state relay or
open collector output options
requires use of an R.C. sup-
pressor.
®
Wat lo w EZ-ZO NE P M I n te g r at e d C o n tr o lle r

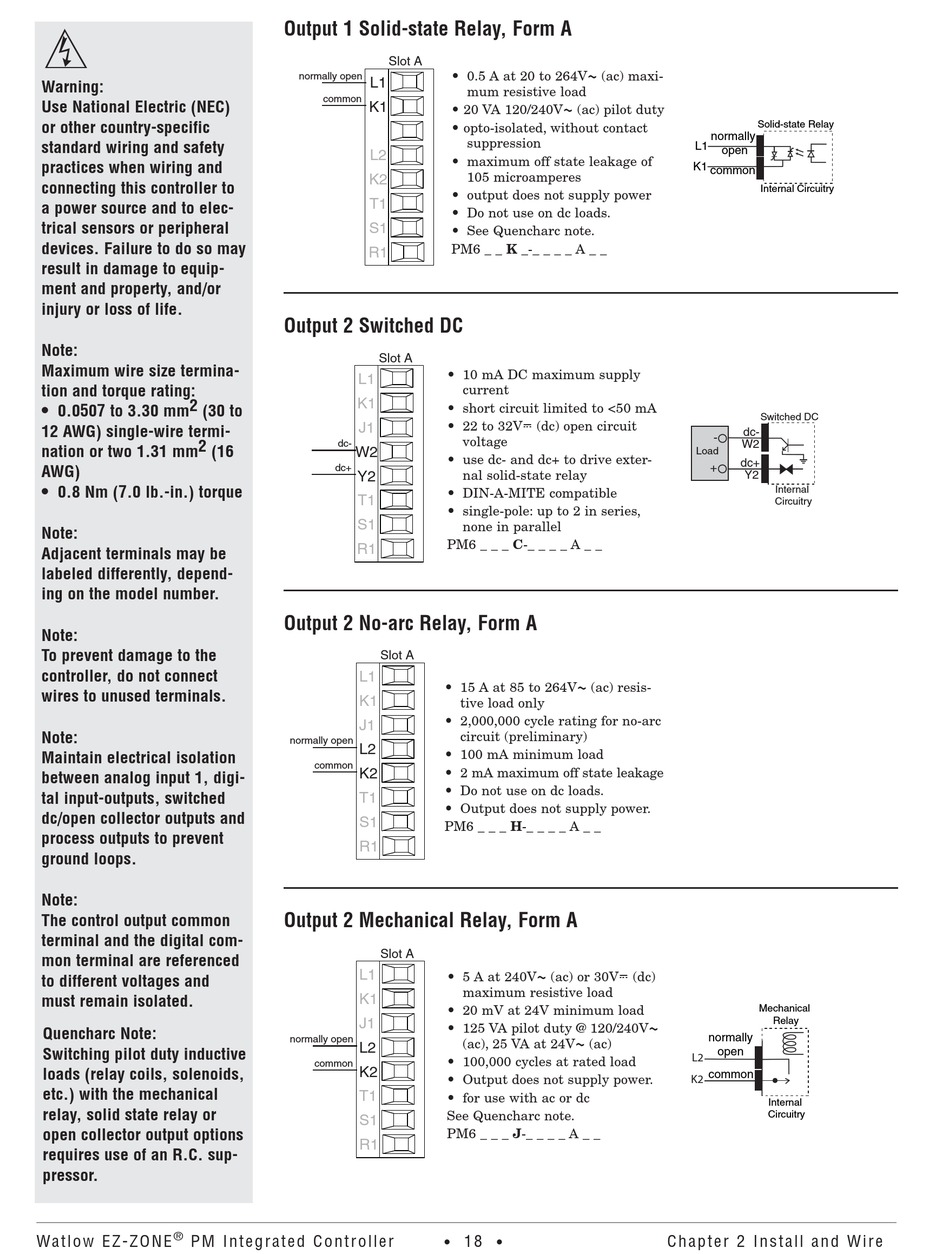

Output 1 Solid-state Relay, Form A
Slot A
• 0.5 A at 20 to 264VÅ (ac) maxi-
normally open
L1
common
K1
• 20 VA 120/240VÅ (ac) pilot duty
• opto-isolated, without contact
L2
• maximum off state leakage of
K2
• output does not supply power
T1
• Do not use on dc loads.
S1
• See Quencharc note.
PM6 _ _ K _-_ _ _ _ A _ _
R1
Output 2 Switched DC
Slot A
• 10 mA DC maximum supply
L1
current
K1
• short circuit limited to <50 mA
• 22 to 32VÎ (dc) open circuit
J1
voltage
dc-
W2
• use dc- and dc+ to drive exter-
dc+
Y2 nal solid-state relay
• DIN-A-MITE compatible
T1
• single-pole: up to 2 in series,
S1
none in parallel
PM6 _ _ _ C-_ _ _ _ A _ _
R1
Output 2 No-arc Relay, Form A
Slot A
L1
• 15 A at 85 to 264VÅ (ac) resis-
K1
tive load only
• 2,000,000 cycle rating for no-arc
J1
circuit (preliminary)
normally open
L2
• 100 mA minimum load
common
K2 • 2 mA maximum off state leakage
• Do not use on dc loads.
T1
• Output does not supply power.
S1
PM6 _ _ _ H-_ _ _ _ A _ _
R1
Output 2 Mechanical Relay, Form A
Slot A
L1
• 5 A at 240VÅ (ac) or 30VÎ (dc)
maximum resistive load
K1
• 20 mV at 24V minimum load
J1
• 125 VA pilot duty @ 120/240VÅ
normally open
(ac), 25 VA at 24VÅ (ac)
L2
• 100,000 cycles at rated load
common
K2
• Output does not supply power.
T1
• for use with ac or dc
See Quencharc note.
S1
PM6 _ _ _ J-_ _ _ _ A _ _
R1
•
mum resistive load
suppression
105 microamperes
18
•
Solid-state Relay
normally
L1
open
K1
common
Internal Circuitry
Switched DC
dc-
-
W2
Load
dc+
+
Y2
Internal
Circuitry
Mechanical
Relay
normally
open
L2
common
K2
Internal
Circuitry
C hapter 2 In stal l an d W ir e
