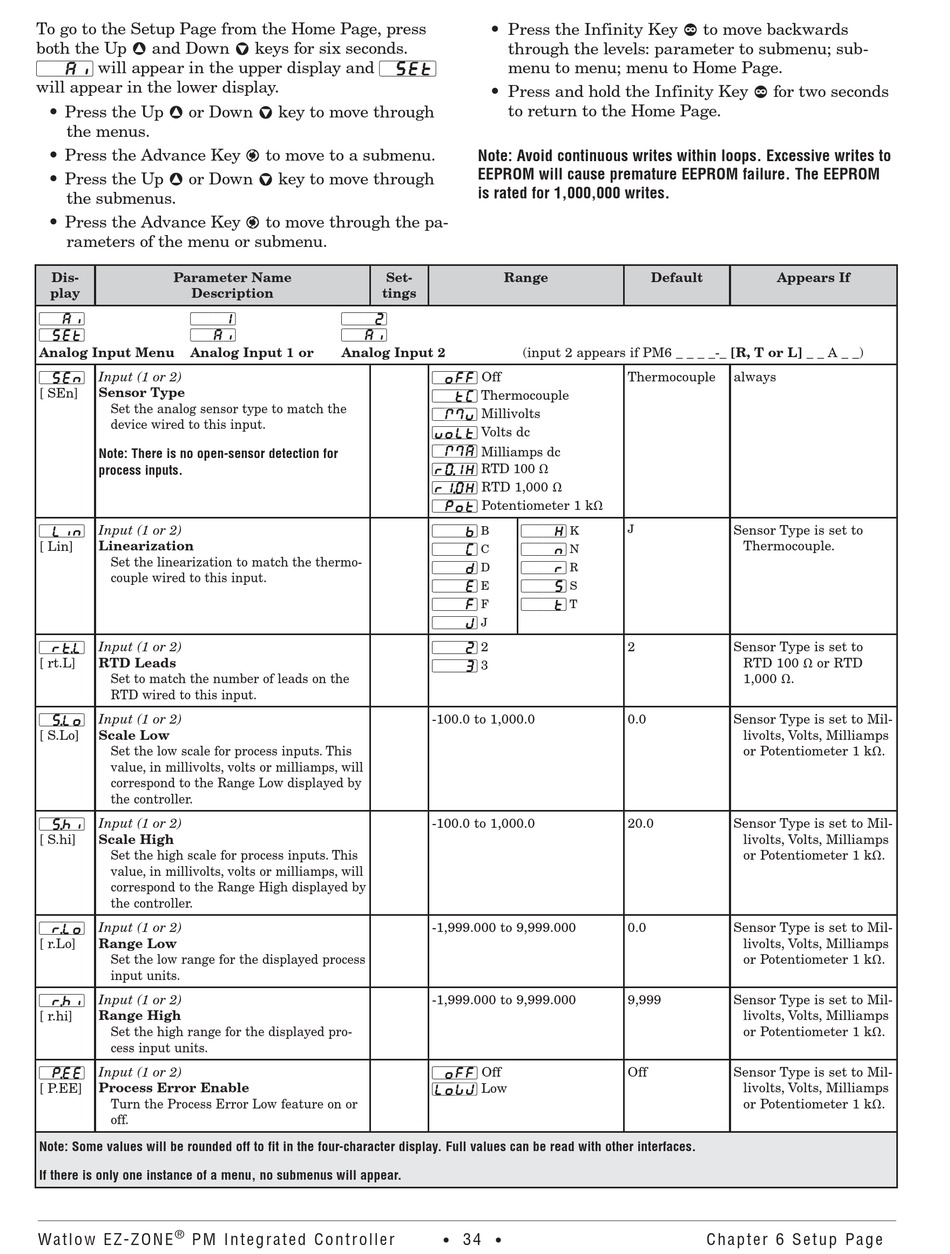

To go to the Setup Page from the Home Page, press
both the Up ¿ and Down ¯ keys for six seconds.
[``Ai] will appear in the upper display and [`Set]
will appear in the lower display.
• Press the Up ¿ or Down ¯ key to move through
the menus.
• Press the Advance Key ‰ to move to a submenu.
• Press the Up ¿ or Down ¯ key to move through
the submenus.
• Press the Advance Key ‰ to move through the pa-
rameters of the menu or submenu.
Dis- Parameter Name
play Description
[``Ai] [```1]
[`Set] [``Ai]
Analog Input Menu Analog Input 1 or
[`Sen] Input (1 or 2)
Sensor Type
[ SEn]
Set the analog sensor type to match the
device wired to this input.
Note: There is no open-sensor detection for
process inputs.
[`Lin] Input (1 or 2)
[ Lin] Linearization
Set the linearization to match the thermo-
couple wired to this input.
[`Rt; L ]
Input (1 or 2)
[ rt.L] RTD Leads
Set to match the number of leads on the
RTD wired to this input.
[`S; L o] Input (1 or 2)
[ S.Lo] Scale Low
Set the low scale for process inputs. This
value, in millivolts, volts or milliamps, will
correspond to the Range Low displayed by
the controller.
[`S; h i] Input (1 or 2)
[ S.hi] Scale High
Set the high scale for process inputs. This
value, in millivolts, volts or milliamps, will
correspond to the Range High displayed by
the controller.
[`r; L o]
Input (1 or 2)
[ r.Lo] Range Low
Set the low range for the displayed process
input units.
[`r; h i] Input (1 or 2)
[ r.hi] Range High
Set the high range for the displayed pro-
cess input units.
[`P; E E] Input (1 or 2)
[ P.EE] Process Error Enable
Turn the Process Error Low feature on or
off.
Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.
If there is only one instance of a menu, no submenus will appear.
®
