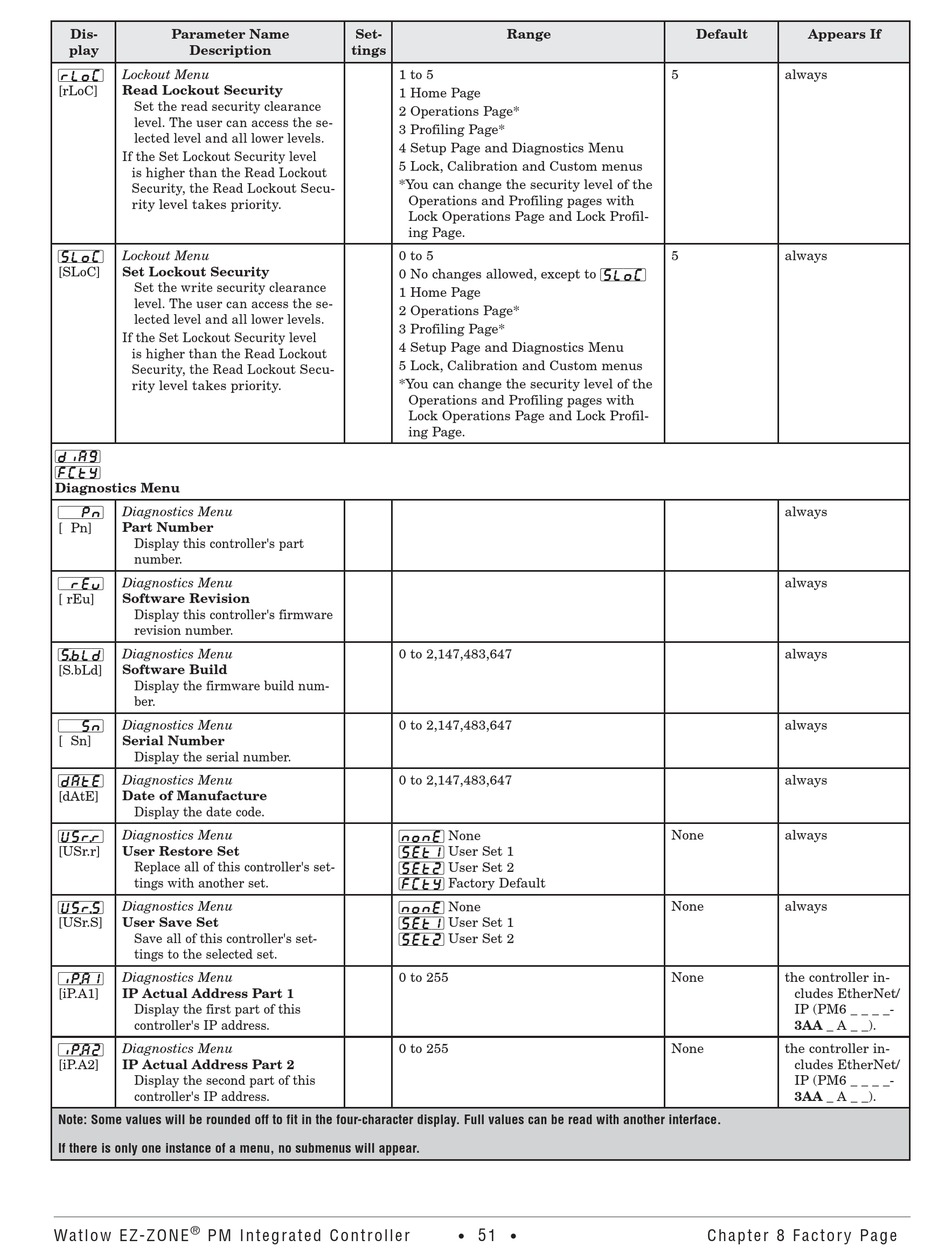

Dis- Parameter Name
play Description
[rLoC] Lockout Menu
[rLoC] Read Lockout Security
Set the read security clearance
level. The user can access the se-
lected level and all lower levels.
If the Set Lockout Security level
is higher than the Read Lockout
Security, the Read Lockout Secu-
rity level takes priority.
[SLoC] Lockout Menu
[SLoC] Set Lockout Security
Set the write security clearance
level. The user can access the se-
lected level and all lower levels.
If the Set Lockout Security level
is higher than the Read Lockout
Security, the Read Lockout Secu-
rity level takes priority.
[diAg]
[FCty]
Diagnostics Menu
[``Pn]
Diagnostics Menu
[ Pn] Part Number
Display this controller's part
number.
[`rEu] Diagnostics Menu
[ rEu] Software Revision
Display this controller's firmware
revision number.
[S; b Ld]
Diagnostics Menu
[S.bLd] Software Build
Display the firmware build num-
ber.
[``Sn] Diagnostics Menu
[ Sn] Serial Number
Display the serial number.
[dAtE] Diagnostics Menu
[dAtE] Date of Manufacture
Display the date code.
[USr; r ] Diagnostics Menu
[USr.r] User Restore Set
Replace all of this controller's set-
tings with another set.
[USr; S ] Diagnostics Menu
[USr.S] User Save Set
Save all of this controller's set-
tings to the selected set.
[iP; A 1] Diagnostics Menu
[iP.A1] IP Actual Address Part 1
Display the first part of this
controller's IP address.
[iP; A 2] Diagnostics Menu
[iP.A2] IP Actual Address Part 2
Display the second part of this
controller's IP address.
Note: Some values will be rounded off to fit in the four-character display. Full values can be read with another interface.
If there is only one instance of a menu, no submenus will appear.
®
Wa t low EZ-ZO N E P M I n te g r a t e d Co n tr o l l er
Set- Range
tings
1 to 5
1 Home Page
2 Operations Page*
3 Profiling Page*
4 Setup Page and Diagnostics Menu
5 Lock, Calibration and Custom menus
*You can change the security level of the
Operations and Profiling pages with
Lock Operations Page and Lock Profil-
ing Page.
0 to 5
0 No changes allowed, except to [SLoC]
1 Home Page
2 Operations Page*
3 Profiling Page*
4 Setup Page and Diagnostics Menu
5 Lock, Calibration and Custom menus
*You can change the security level of the
Operations and Profiling pages with
Lock Operations Page and Lock Profil-
ing Page.
0 to 2,147,483,647
0 to 2,147,483,647
0 to 2,147,483,647
[none] None
[SEt1] User Set 1
[SEt2] User Set 2
[FCty] Factory Default
[none] None
[SEt1] User Set 1
[SEt2] User Set 2
0 to 255
0 to 255
51
• •
Default Appears If
5 always
5 always
always
always
always
always
always
None always
None always
None the controller in-
cludes EtherNet/
IP (PM6 _ _ _ _-
3AA _ A _ _).
None the controller in-
cludes EtherNet/
IP (PM6 _ _ _ _-
3AA _ A _ _).
Chapter 8 Factor y Pa ge
