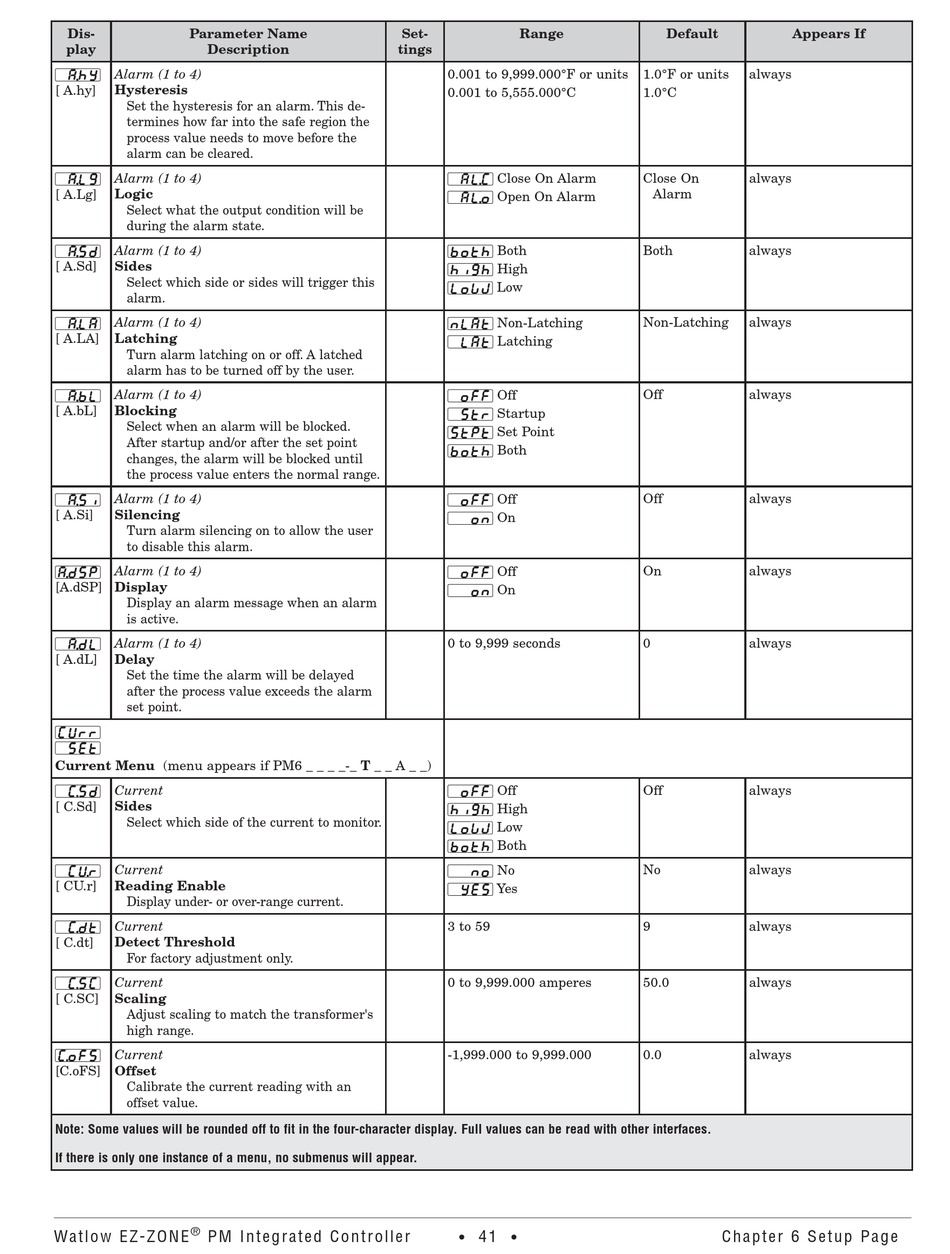

Watlow Integrated Controller User Manual Rev C EZ-ZONE PM User Manual page 43

Dis- Parameter Name
play Description
[`A; h y] Alarm (1 to 4)
[ A.hy] Hysteresis
Set the hysteresis for an alarm. This de-
termines how far into the safe region the
process value needs to move before the
alarm can be cleared.
[`A; L g] Alarm (1 to 4)
[ A.Lg] Logic
Select what the output condition will be
during the alarm state.
[`A; S d] Alarm (1 to 4)
Sides
[ A.Sd]
Select which side or sides will trigger this
alarm.
[`A; L A] Alarm (1 to 4)
[ A.LA] Latching
Turn alarm latching on or off. A latched
alarm has to be turned off by the user.
[`A; b L]
Alarm (1 to 4)
[ A.bL] Blocking
Select when an alarm will be blocked.
After startup and/or after the set point
changes, the alarm will be blocked until
the process value enters the normal range.
[`A; S i] Alarm (1 to 4)
Silencing
[ A.Si]
Turn alarm silencing on to allow the user
to disable this alarm.
[A; d SP] Alarm (1 to 4)
[A.dSP] Display
Display an alarm message when an alarm
is active.
[`A; d L]
Alarm (1 to 4)
[ A.dL] Delay
Set the time the alarm will be delayed
after the process value exceeds the alarm
set point.
[CUrr]
[`Set]
Current Menu (menu appears if PM6 _ _ _ _-_ T _ _ A _ _)
[`C; S d] Current
Sides
[ C.Sd]
Select which side of the current to monitor.
[`CU; r ] Current
[ CU.r] Reading Enable
Display under- or over-range current.
[`C; d t] Current
[ C.dt] Detect Threshold
For factory adjustment only.
[`C; S C]
Current
[ C.SC] Scaling
Adjust scaling to match the transformer's
high range.
[C; o FS] Current
[C.oFS] Offset
Calibrate the current reading with an
offset value.
Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.
If there is only one instance of a menu, no submenus will appear.
®
Wa t low EZ-ZO N E P M I n te g r a t e d Co n tr o l l er
Set- Range
tings
0.001 to 9,999.000°F or units
0.001 to 5,555.000°C
[`AL; C ] Close On Alarm
[`AL; o ] Open On Alarm
[both] Both
[high] High
[LoW] Low
[nLAt] Non-Latching
[`LAt] Latching
[`oFF] Off
[`Str] Startup
[StPt] Set Point
[both] Both
[`oFF] Off
[``on] On
[`oFF] Off
[``on] On
0 to 9,999 seconds
[`oFF] Off
[high] High
[LoW] Low
[both] Both
[``no] No
[`YES} Yes
3 to 59
0 to 9,999.000 amperes
-1,999.000 to 9,999.000
41
• •
Default Appears If
1.0°F or units always
1.0°C
Close On always
Alarm
Both always
Non-Latching always
Off always
Off always
On always
0 always
Off always
No always
9 always
50.0 always
0.0 always
C hapter 6 Setup Pa ge
