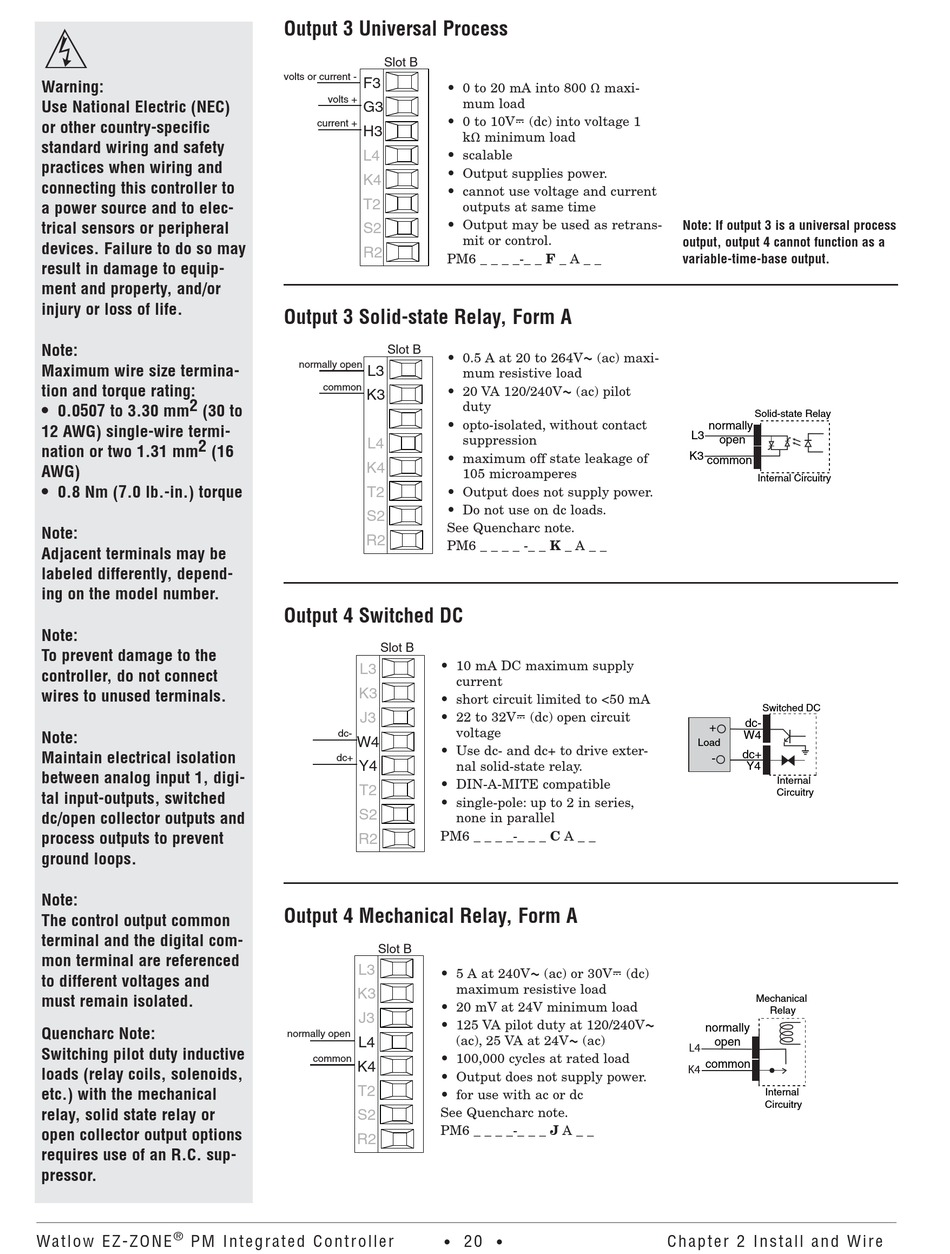

Watlow Integrated Controller User Manual Rev C EZ-ZONE PM User Manual page 22

Ó
Warning:
Use National Electric (NEC)
or other country-specific
standard wiring and safety
practices when wiring and
connecting this controller to
a power source and to elec-
trical sensors or peripheral
devices. Failure to do so may
result in damage to equip-
ment and property, and/or
injury or loss of life.
Note:
Maximum wire size termina-
tion and torque rating:
• 0.0507 to 3.30 mm 2 (30 to
12 AWG) single-wire termi-
nation or two 1.31 mm 2 (16
AWG)
• 0.8 Nm (7.0 lb.-in.) torque
Note:
Adjacent terminals may be
labeled differently, depend-
ing on the model number.
Note:
To prevent damage to the
controller, do not connect
wires to unused terminals.
Note:
Maintain electrical isolation
between analog input 1, digi-
tal input-outputs, switched
dc/open collector outputs and
process outputs to prevent
ground loops.
Note:
The control output common
terminal and the digital com-
mon terminal are referenced
to different voltages and
must remain isolated.
Quencharc Note:
Switching pilot duty inductive
loads (relay coils, solenoids,
etc.) with the mechanical
relay, solid state relay or
open collector output options
requires use of an R.C. sup-
pressor.
®
Wat lo w EZ-ZO NE P M I n te g r at e d C o n tr o lle r
Output 3 Universal Process
Slot B
volts or current -
F3
• 0 to 20 mA into 800 Ω maxi-
volts +
mum load
G3
• 0 to 10VÎ (dc) into voltage 1
current +
H3
kΩ minimum load
L4 • scalable
• Output supplies power.
K4
• cannot use voltage and current
T2
outputs at same time
• Output may be used as retrans-
S2
mit or control.
R2
PM6 _ _ _ _-_ _ F _ A _ _
Output 3 Solid-state Relay, Form A
Slot B
• 0.5 A at 20 to 264VÅ (ac) maxi-
normally open
L3
mum resistive load
common
• 20 VA 120/240VÅ (ac) pilot
K3
duty
• opto-isolated, without contact
suppression
L4
• maximum off state leakage of
K4
105 microamperes
T2
• Output does not supply power.
• Do not use on dc loads.
S2
See Quencharc note.
R2
PM6 _ _ _ _ -_ _ K _ A _ _
Output 4 Switched DC
Slot B
• 10 mA DC maximum supply
L3
current
K3
• short circuit limited to <50 mA
J3
• 22 to 32VÎ (dc) open circuit
voltage
dc-
W4
• Use dc- and dc+ to drive exter-
dc+
Y4
nal solid-state relay.
• DIN-A-MITE compatible
T2
• single-pole: up to 2 in series,
S2
none in parallel
PM6 _ _ _ _-_ _ _ C A _ _
R2
Output 4 Mechanical Relay, Form A
Slot B
L3
• 5 A at 240VÅ (ac) or 30VÎ (dc)
maximum resistive load
K3
• 20 mV at 24V minimum load
J3
• 125 VA pilot duty at 120/240VÅ
normally open
(ac), 25 VA at 24VÅ (ac)
L4
• 100,000 cycles at rated load
common
K4
• Output does not supply power.
T2
• for use with ac or dc
See Quencharc note.
S2
PM6 _ _ _ _-_ _ _ J A _ _
R2
•
20
•
Note: If output 3 is a universal process
output, output 4 cannot function as a
variable-time-base output.
Solid-state Relay
normally
L3
open
K3
common
Internal Circuitry
Switched DC
dc-
+
W4
Load
dc+
-
Y4
Internal
Circuitry
Mechanical
Relay
normally
open
L4
common
K4
Internal
Circuitry
C hapter 2 In stal l an d W ir e
