Ó
Warning:
Use National Electric (NEC)
or other country-specific
standard wiring and safety
practices when wiring and
connecting this controller to
a power source and to elec-
trical sensors or peripheral
devices. Failure to do so may
result in damage to equip-
ment and property, and/or
injury or loss of life.
Note:
Maximum wire size termina-
tion and torque rating:
• 0.0507 to 3.30 mm 2 (30 to
12 AWG) single-wire termi-
nation or two 1.31 mm 2 (16
AWG)
• 0.8 Nm (7.0 lb.-in.) torque
Note:
Adjacent terminals may be
labeled differently, depend-
ing on the model number.
Note:
To prevent damage to the
controller, do not connect
wires to unused terminals.
Note:
Maintain electrical isolation
between analog input 1, digi-
tal input-outputs, switched
dc/open collector outputs and
process outputs to prevent
ground loops.
Note:
The control output common
terminal and the digital com-
mon terminal are referenced
to different voltages and
must remain isolated.
Quencharc Note:
Switching pilot duty inductive
loads (relay coils, solenoids,
etc.) with the mechanical
relay, solid state relay or
open collector output options
requires use of an R.C. sup-
pressor.
®
Wat lo w EZ-ZO N E P M I n t eg r a te d C o n tr o lle r

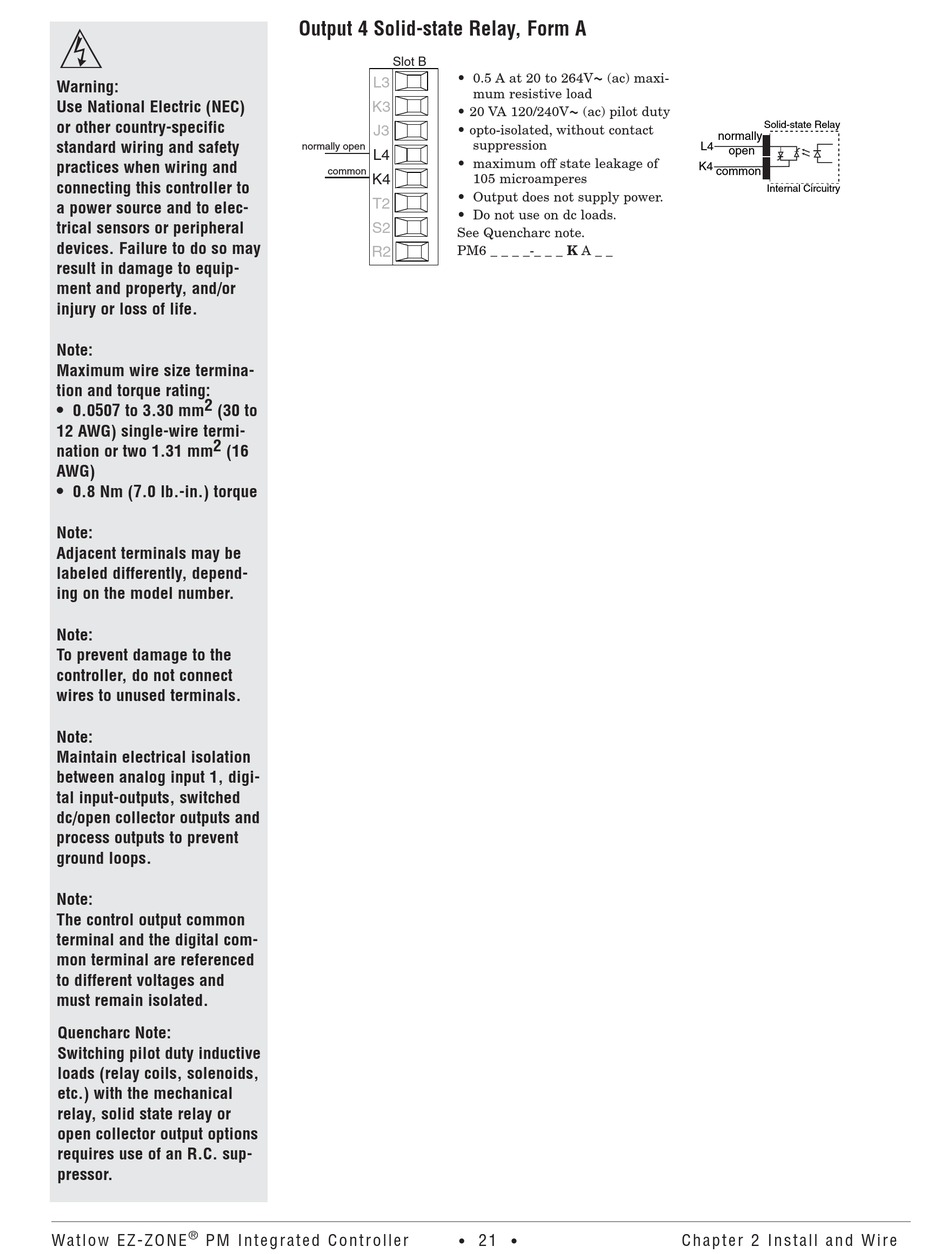

Output 4 Solid-state Relay, Form A
Slot B
• 0.5 A at 20 to 264VÅ (ac) maxi-
L3
mum resistive load
K3
• 20 VA 120/240VÅ (ac) pilot duty
J3 • opto-isolated, without contact
suppression
normally open
L4
• maximum off state leakage of
common
K4 105 microamperes
• Output does not supply power.
T2
• Do not use on dc loads.
S2
See Quencharc note.
PM6 _ _ _ _-_ _ _ K A _ _
R2
•
21
•
Solid-state Relay
normally
L4
open
K4
common
Internal Circuitry
Chapter 2 Instal l a nd W ir e
