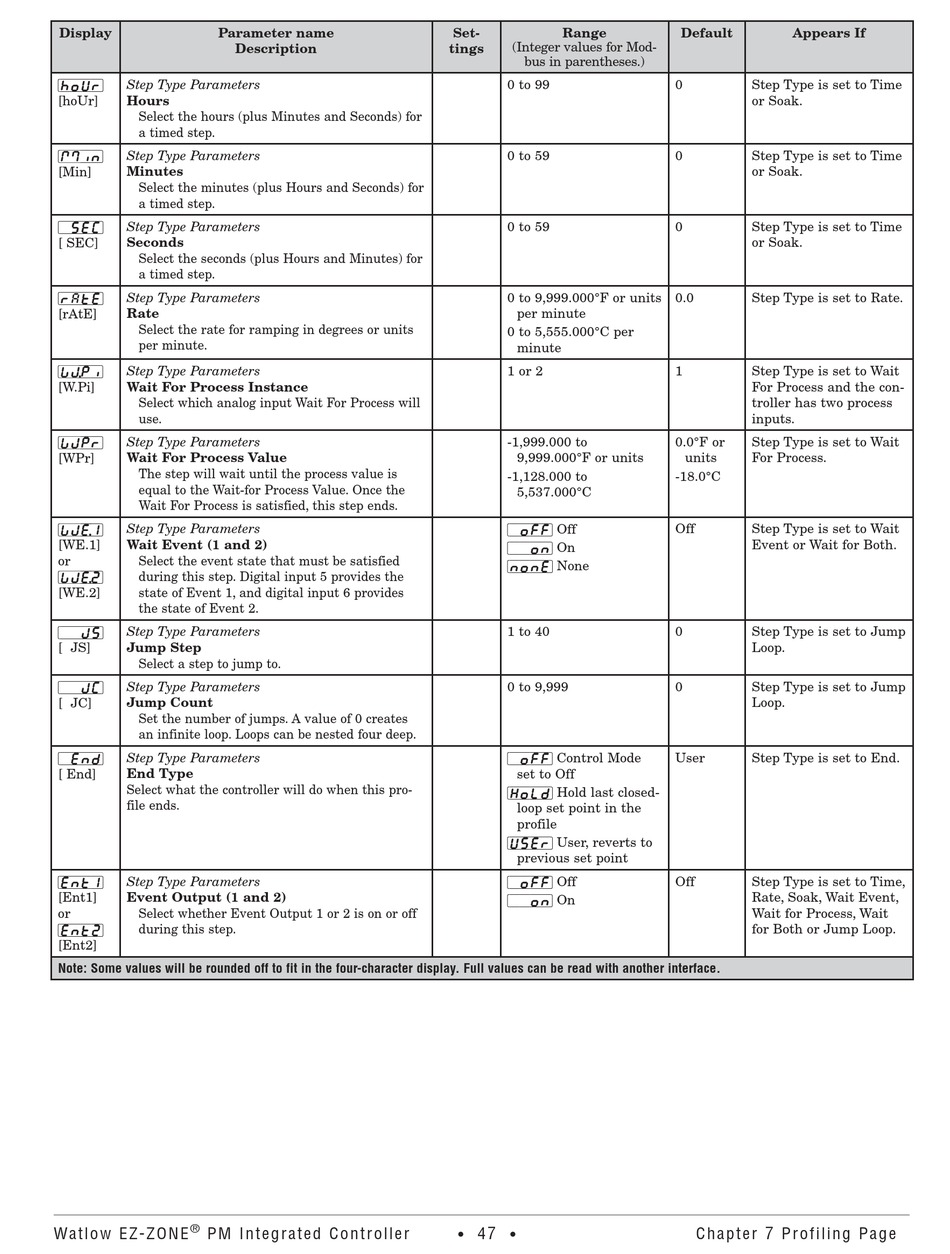

Watlow Integrated Controller User Manual Rev C EZ-ZONE PM User Manual page 49

Display Parameter name
[hoUr] Step Type Parameters
[hoUr] Hours
Select the hours (plus Minutes and Seconds) for
a timed step.
[Min] Step Type Parameters
[Min] Minutes
Select the minutes (plus Hours and Seconds) for
a timed step.
[~SEC] Step Type Parameters
[ SEC] Seconds
Select the seconds (plus Hours and Minutes) for
a timed step.
[rate] Step Type Parameters
[rAtE] Rate
Select the rate for ramping in degrees or units
per minute.
[W; P i] Step Type Parameters
[W.Pi] Wait For Process Instance
Select which analog input Wait For Process will
use.
[WPr] Step Type Parameters
[WPr] Wait For Process Value
The step will wait until the process value is
equal to the Wait-for Process Value. Once the
Wait For Process is satisfied, this step ends.
[WE; 1 ] Step Type Parameters
[WE.1] Wait Event (1 and 2)
or Select the event state that must be satisfied
[WE; 2 ] during this step. Digital input 5 provides the
[WE.2] state of Event 1, and digital input 6 provides
the state of Event 2.
[~~JS] Step Type Parameters
Jump Step
[ JS]
Select a step to jump to.
[~~JC] Step Type Parameters
[ JC] Jump Count
Set the number of jumps. A value of 0 creates
an infinite loop. Loops can be nested four deep.
[~End] Step Type Parameters
[ End] End Type
Select what the controller will do when this pro-
file ends.
[Ent1] Step Type Parameters
[Ent1] Event Output (1 and 2)
or Select whether Event Output 1 or 2 is on or off
[Ent2] during this step.
[Ent2]
Note: Some values will be rounded off to fit in the four-character display. Full values can be read with another interface.
®
Wa t low EZ-ZO N E P M I n te g r a t e d Co n tr o l l er
Description
Set- Range
(Integer values for Mod-
tings
bus in parentheses.)
0 to 99
0 to 59
0 to 59
0 to 9,999.000°F or units
per minute
0 to 5,555.000°C per
minute
1 or 2
-1,999.000 to
9,999.000°F or units
-1,128.000 to
5,537.000°C
[`oFF] Off
[``on] On
[nonE] None
1 to 40
0 to 9,999
[`oFF] Control Mode
set to Off
[Hold] Hold last closed-
loop set point in the
profile
[USEr] User, reverts to
previous set point
[`oFF] Off
[``on] On
47
• •
Default Appears If
0 Step Type is set to Time
or Soak.
0 Step Type is set to Time
or Soak.
0 Step Type is set to Time
or Soak.
0.0 Step Type is set to Rate.
1 Step Type is set to Wait
For Process and the con-
troller has two process
inputs.
0.0°F or Step Type is set to Wait
units For Process.
-18.0°C
Off Step Type is set to Wait
Event or Wait for Both.
0 Step Type is set to Jump
Loop.
0 Step Type is set to Jump
Loop.
User Step Type is set to End.
Off Step Type is set to Time,
Rate, Soak, Wait Event,
Wait for Process, Wait
for Both or Jump Loop.
Chapter 7 Profil ing Pa ge
