Ó
Warning:
Use National Electric (NEC)
or other country-specific
standard wiring and safety
practices when wiring and
connecting this controller to
a power source and to elec-
trical sensors or peripheral
devices. Failure to do so may
result in damage to equip-
ment and property, and/or
injury or loss of life.
Note:
Maximum wire size termina-
tion and torque rating:
• 0.0507 to 3.30 mm 2 (30 to
12 AWG) single-wire termi-
nation or two 1.31 mm 2 (16
AWG)
• 0.8 Nm (7.0 lb.-in.) torque
Note:
Adjacent terminals may be
labeled differently, depend-
ing on the model number.
Note:
To prevent damage to the
controller, do not connect
wires to unused terminals.
Note:
Maintain electrical isolation
between analog input 1, digi-
tal input-outputs, switched
dc/open collector outputs and
process outputs to prevent
ground loops.
Note:
The control output common
terminal and the digital com-
mon terminal are referenced
to different voltages and
must remain isolated.
Quencharc Note:
Switching pilot duty inductive
loads (relay coils, solenoids,
etc.) with the mechanical
relay, solid state relay or
open collector output options
requires use of an R.C. sup-
pressor.
®
Wat lo w EZ-ZO N E P M I n t eg r a te d C o n tr o lle r

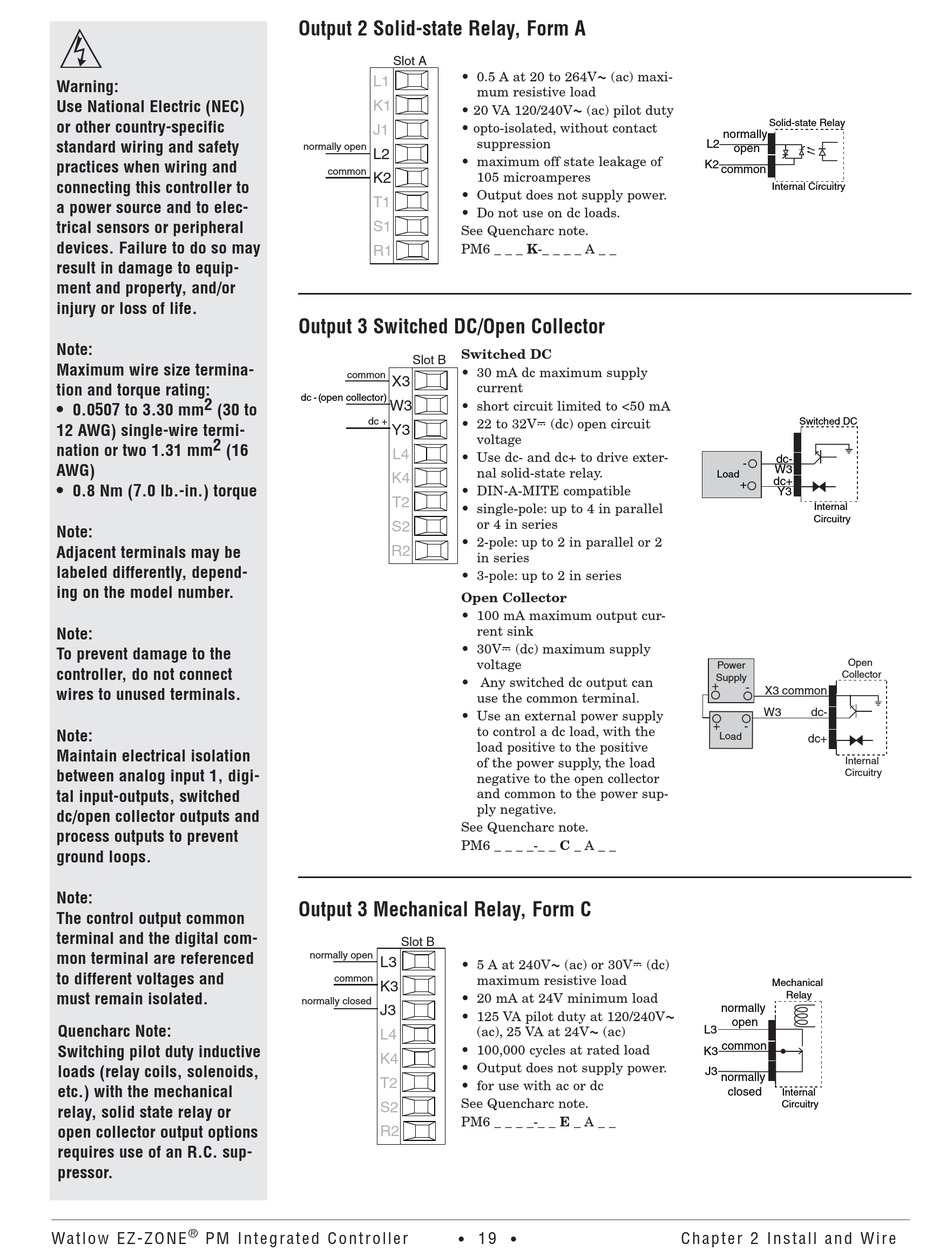

Output 2 Solid-state Relay, Form A
Slot A
• 0.5 A at 20 to 264VÅ (ac) maxi-
L1
K1
• 20 VA 120/240VÅ (ac) pilot duty
• opto-isolated, without contact
J1
normally open
L2
• maximum off state leakage of
common
K2
• Output does not supply power.
T1
• Do not use on dc loads.
S1
See Quencharc note.
PM6 _ _ _ K-_ _ _ _ A _ _
R1
Output 3 Switched DC/Open Collector
Switched DC
Slot B
• 30 mA dc maximum supply
common
X3
dc - (open collector)
W3
• short circuit limited to <50 mA
dc +
• 22 to 32VÎ (dc) open circuit
Y3
L4
• Use dc- and dc+ to drive exter-
K4
• DIN-A-MITE compatible
T2
• single-pole: up to 4 in parallel
S2
• 2-pole: up to 2 in parallel or 2
R2
• 3-pole: up to 2 in series
Open Collector
• 100 mA maximum output cur-
• 30VÎ (dc) maximum supply
• Any switched dc output can
• Use an external power supply
See Quencharc note.
PM6 _ _ _ _-_ _ C _ A _ _
Output 3 Mechanical Relay, Form C
Slot B
normally open
L3
• 5 A at 240VÅ (ac) or 30VÎ (dc)
common
K3
• 20 mA at 24V minimum load
normally closed
J3
• 125 VA pilot duty at 120/240VÅ
L4
• 100,000 cycles at rated load
K4
• Output does not supply power.
T2
• for use with ac or dc
See Quencharc note.
S2
PM6 _ _ _ _-_ _ E _ A _ _
R2
•
mum resistive load
suppression
105 microamperes
current
voltage
nal solid-state relay.
or 4 in series
in series
rent sink
voltage
use the common terminal.
to control a dc load, with the
load positive to the positive
of the power supply, the load
negative to the open collector
and common to the power sup-
ply negative.
maximum resistive load
(ac), 25 VA at 24VÅ (ac)
19
•
Solid-state Relay
normally
L2
open
K2
common
Internal Circuitry
Switched DC
dc-
-
W3
Load
dc+
+
Y3
Internal
Circuitry
Open
Power
Collector
Supply
+
-
X3
common
W3 dc-
dc+
Internal
Circuitry
Mechanical
Relay
normally
open
L3
common
K3
J3
normally
closed
Internal
Circuitry
Chapter 2 Instal l a nd W ir e
