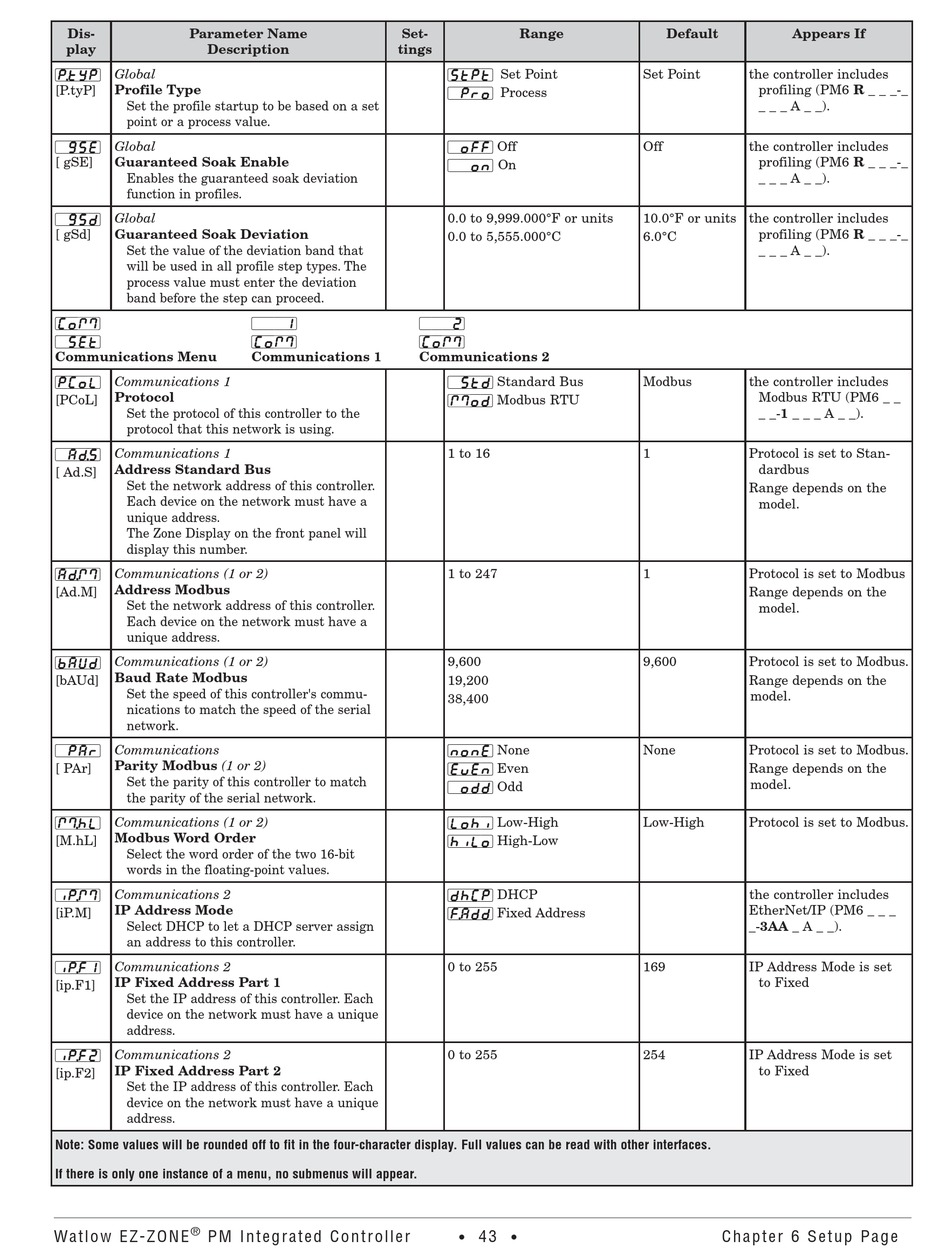

Watlow Integrated Controller User Manual Rev C EZ-ZONE PM User Manual page 45

Dis- Parameter Name
play Description
[P; t yp] Global
[P.tyP] Profile Type
Set the profile startup to be based on a set
point or a process value.
[`GSE] Global
[ gSE] Guaranteed Soak Enable
Enables the guaranteed soak deviation
function in profiles.
[`GSd] Global
Guaranteed Soak Deviation
[ gSd]
Set the value of the deviation band that
will be used in all profile step types. The
process value must enter the deviation
band before the step can proceed.
[CoM]
[`SEt]
Communications Menu
[PCoL] Communications 1
Protocol
[PCoL]
Set the protocol of this controller to the
protocol that this network is using.
[`Ad; S ] Communications 1
Address Standard Bus
[ Ad.S]
Set the network address of this controller.
Each device on the network must have a
unique address.
The Zone Display on the front panel will
display this number.
[Ad; M ]
Communications (1 or 2)
Address Modbus
[Ad.M]
Set the network address of this controller.
Each device on the network must have a
unique address.
[bAUd] Communications (1 or 2)
Baud Rate Modbus
[bAUd]
Set the speed of this controller's commu-
nications to match the speed of the serial
network.
[`PAr] Communications
Parity Modbus (1 or 2)
[ PAr]
Set the parity of this controller to match
the parity of the serial network.
[M; h L] Communications (1 or 2)
Modbus Word Order
[M.hL]
Select the word order of the two 16-bit
words in the floating-point values.
[iP; M ] Communications 2
IP Address Mode
[iP.M]
Select DHCP to let a DHCP server assign
an address to this controller.
[iP; F 1]
Communications 2
IP Fixed Address Part 1
[ip.F1]
Set the IP address of this controller. Each
device on the network must have a unique
address.
[iP; F 2] Communications 2
IP Fixed Address Part 2
[ip.F2]
Set the IP address of this controller. Each
device on the network must have a unique
address.
Note: Some values will be rounded off to fit in the four-character display. Full values can be read with other interfaces.
If there is only one instance of a menu, no submenus will appear.
®
Wa t low EZ-ZO N E P M I n te g r a t e d Co n tr o l l er
Set-
tings
[```1] [```2]
[CoM] [CoM]
Communications 1 Communications 2
Range
[StPt] Set Point
[`Pro] Process
[`oFF] Off
[``on] On
0.0 to 9,999.000°F or units
0.0 to 5,555.000°C
[`Std] Standard Bus
[Mod] Modbus RTU
1 to 16
1 to 247
9,600
19,200
38,400
[none] None
[EuEn] Even
[`odd] Odd
[Lohi] Low-High
[hiLo] High-Low
[dhCP] DHCP
[F; A dd] Fixed Address
0 to 255
0 to 255
43
• •
Default Appears If
Set Point the controller includes
profiling (PM6 R _ _ _-_
_ _ _ A _ _).
Off the controller includes
profiling (PM6 R _ _ _-_
_ _ _ A _ _).
10.0°F or units the controller includes
profiling (PM6 R _ _ _-_
6.0°C
_ _ _ A _ _).
Modbus the controller includes
Modbus RTU (PM6 _ _
_ _-1 _ _ _ A _ _).
1 Protocol is set to Stan-
dardbus
Range depends on the
model.
1 Protocol is set to Modbus
Range depends on the
model.
9,600 Protocol is set to Modbus.
Range depends on the
model.
None Protocol is set to Modbus.
Range depends on the
model.
Low-High Protocol is set to Modbus.
the controller includes
EtherNet/IP (PM6 _ _ _
_-3AA _ A _ _).
169 IP Address Mode is set
to Fixed
254 IP Address Mode is set
to Fixed
C hapter 6 Setup Pa ge
