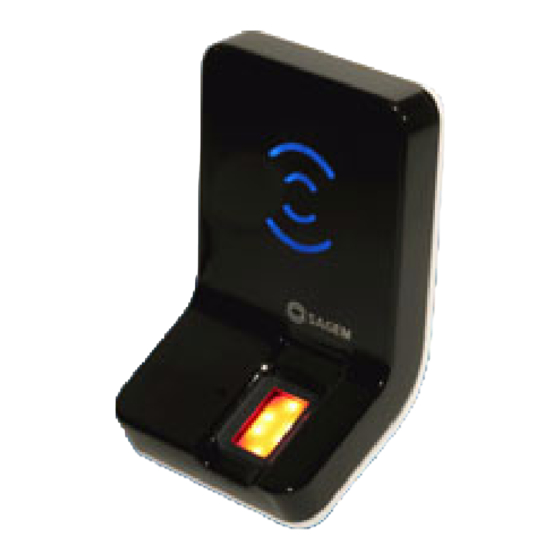

Safran MorphoAccess J Series Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

I
G
NSTALLATION
UIDE
DOCUMENT SSE-0000077503-04 - March 2011
Copyright © 2011
Morpho
Osny, France
Morpho Document - Reproduction and disclosure prohibited

Advertisement

Table of Contents
loading

Related Manuals for Safran MorphoAccess J Series

Summary of Contents for Safran MorphoAccess J Series

  • Page 1 NSTALLATION UIDE DOCUMENT SSE-0000077503-04 - March 2011 Copyright © 2011 Morpho Osny, France Morpho Document - Reproduction and disclosure prohibited...
  • Page 2 ® Warning MorphoAccess J Series – Installation Guide Warning Copyright © 2011, Morpho. All rights reserved. Information in this document is subject to change without notice and do not represent a commitment on the part of Morpho. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying or recording, for any purpose without the express written permission of Morpho.
  • Page 3 ® MorphoAccess J Series – Installation Guide Revision History Revision History The table below contains the history of changes made to the present document. Version Date Document Revision History May 2010 Document creation. May 2010 Modification of Customer service phone number on page 75.
  • Page 4 ® Revision History MorphoAccess J Series – Installation Guide REV • 2 DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 5: Table Of Contents

    ® MorphoAccess J Series – Installation Guide Table of Contents Table of Contents Section 1 Introduction 1. Scope of the document . 2. Safety instructions Wiring recommendation Europe information . USA information Section 2 General Description 1. Box opening 2. Components of the initial package 3.
  • Page 6 ® Table of Contents MorphoAccess J Series – Installation Guide 3. Installation with the Mounting Spacer supplied in the package . . 25 Required tools (not supplied) Equipment from the initial package to use Step by step procedure . 4. Installation with specific Wi-Fi™ Mounting Spacer .
  • Page 7 ® MorphoAccess J Series – Installation Guide Table of Contents Section 5 User Interface MorphoAccess® J Series terminal modes Identification mode . Authentication (verification) mode . Multi-factor mode Proxy mode MorphoAccess® J Series terminal Configuration 3. Anti-tamper and anti-pulling switches operating Anti-tamper switches Anti-pulling switches Section 6...
  • Page 8 ® Table of Contents MorphoAccess J Series – Installation Guide Section 10 Support Customer service . Hotline TOC • 4 DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 9 ECTION NTR ODUCTI O N...
  • Page 10 ® Section 1: Introduction MorphoAccess J Series – Installation Guide ® Congratulations for choosing a MorphoAccess J Series Automatic Fingerprint Recognition Terminal. ® MorphoAccess J Series provides an innovative and effective solution for access control applications using Fingerprint Verification or/and Identification.

  • Page 11: Scope Of The Document

    ® MorphoAccess J Series – Installation Guide Section 1: Introduction 1. Scope of the document ® This guide deals with the installation of MorphoAccess J Series, which is made up of following list of products: Contactless Smartcard Reader ® ® Biometrics MIFARE DESFire...

  • Page 12: Safety Instructions

    ® Section 1: Introduction MorphoAccess J Series – Installation Guide 2. Safety instructions The installation of this product should be made by a qualified service Person and should comply with all local regulations. It is strongly recommended to use a class II power supply at 12V ±5% and 0.5A.

  • Page 13: Europe Information

    ® MorphoAccess J Series – Installation Guide Section 1: Introduction Europe information ® Morpho hereby declares that the MorphoAccess J Series terminal has been tested and found compliant with following listed standards: EN302 291-2 V.1.1.1 (2005-07) + recommendation 1999/519/CE with standard EN 50364; EN 301 489-3 V.1.4.1 (02), and low voltage Directive 2006/95/CE: CEI60950- 1:2005 2nd edition.
  • Page 14 ® Section 1: Introduction MorphoAccess J Series – Installation Guide NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 15: General Description

    ECTION E NE R AL E S CR I P TI O N...
  • Page 16 ® Section 2: General Description MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 17: Box Opening

    ® MorphoAccess J Series – Installation Guide Section 2: General Description 1. Box opening At the box opening, components shall be extracted from the white protection casing as depicted in the pictures below. The smoked front cover shall be removed from the terminal's body and kept separate until the installation of the terminal is completed.

  • Page 18: Components Of The Initial Package

    ® Section 2: General Description MorphoAccess J Series – Installation Guide 2. Components of the initial package Figure 2.1: Package contents 1 One (1) Terminal’s body 2 One (1) Smoked front cover 3 One (1) Mounting Spacer 4 Two (2) block connectors (6 and 10 pins) for terminal's joint blocks 5 Four (4) M3X25 Screws (Terminal fixing) 6 Two (2) screw rubber caps (for the two M2.5X14) 7 Four (4) rawplugs (for Ø...

  • Page 19: Terminal's Front View Description

    ® MorphoAccess J Series – Installation Guide Section 2: General Description 3. Terminal’s front view description ® Figure 2.2: MorphoAccess J Series terminal front views Terminal's body Smoked front cover Reset button Contactless card reader Anti-tamper switches USB port (for configuration and settings) Optical sensor DOCUMENT SSE-0000077503-04 - M 2011...

  • Page 20: Terminal's Rear View Description

    ® Section 2: General Description MorphoAccess J Series – Installation Guide 4. Terminal’s rear view description ® Figure 2.3: MorphoAccess J Series terminal rear view 1 Smoked front cover fixation 2 Mounting holes 3 Anti-pulling switches 4 Mini USB port for Wi-Fi™ dongle connection 5 RJ45 (Power Over Ethernet) 6 Terminal blocks DOCUMENT SSE-0000077503-04 - M...

  • Page 21: Morphoaccess ® J Series Technical Characteristics

    ® MorphoAccess J Series – Installation Guide Section 2: General Description ® 5. MorphoAccess J Series Technical Characteristics Item Description Access control modes Identification (search for fingerprint in local database) Authentication with contactless card, with or without fingerprint check (only if equipped with a smartcard reader) Multi-factor: identification or authentication (only if equipped with a smartcard reader) Proxy: the access control check is fully driven by a remote system...
  • Page 22 ® Section 2: General Description MorphoAccess J Series – Installation Guide Item Description Power supply Power Over Ethernet RJ45 connector Or 9 to 16 V DC power supply (500mA max @12V / 1A with Wi-Fi™ option) A hardware reset button allows to perform a power down/up sequence Security of the terminal Secure screws anti-tamper switches...
  • Page 23 ECTION N S T A L L A T I O N P R O C E DU R E...
  • Page 24 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide Before proceeding to the installation: • make sure that you have all the components described in section 2 at your disposal. • the smoked front cover must be removed from the terminal's body and kept separate until the installation is completed.

  • Page 25: Installation Directly On A Wall

    ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 1. Installation directly on a wall Required tools (not supplied) • One (1) Philips head screw driver • One (1) Drill (with a Ø 5mm drill bit) • One (1) Hole saw Ø 67mm •...
  • Page 26 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide Figure 3.1: Drilling template 4.Wire the necessary cables on the block connectors according to Section 4; then plug the block connectors into the terminal blocks (6 on Figure 2.3). 5.
  • Page 27 ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 8. Switch on power supply from electrical source and confirm that the terminal switches on (checking light from LED indicator and sound from buzzer). 9. At this stage, a USB mass storage key can be plugged into the terminal for configuration (see Figure 3.3).
  • Page 28 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide 11. Fix the smoked front cover to the terminal's body using the 2 M2.5X14 screws and the L-shaped Torx screw driver. Plug the 2 screw rubber caps on top of the 2 M2.5X14 screw heads (see Figure 3.5). Figure 3.5: Smoked front cover fixing 12.

  • Page 29: Installation On A Standard Electric Box (Example Of The European Electric Box)

    ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 2. Installation on a standard electric box (example of the European electric box) Required tools (not supplied) • One (1) Philips head screw driver • One (1) Flat tip screw driver (for screws of the electric box that are not supplied with the product) •...
  • Page 30 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide 3. Drill in the wall one hole with a diameter of 5mm and fit it with the rawplug (see Figure 3.6). Hole centre can be located by placing the terminal’s body on the wall with its horizontal mounting holes facing the ones of the electric box.
  • Page 31 ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure Figure 3.7: USB mass storage key plugging 10. Plug the smoked front cover onto the terminal's body, plugging first the top part and then the bottom part (see Figure 3.8). Apply pressure on the whole surface of the smoked front cover to make sure it is correctly plugged.
  • Page 32 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide 11. Fix the smoked front cover to the terminal's body using the 2 M2.5X14 screws and the L-shaped Torx screw driver. Plug the 2 screw rubber caps on top of the 2 M2.5X14 screw heads (see Figure 3.9). Figure 3.9: Smoked front cover fixing 12.

  • Page 33: Installation With The Mounting Spacer Supplied In The Package

    ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 3. Installation with the Mounting Spacer supplied in the package Required tools (not supplied) • One (1) Philips head screw driver • One (1) Drill (with a Ø 5mm drill bit) •...
  • Page 34 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide Figure 3.10: Four fixing holes layout 3. Bring the mounting spacer close to the wall, with its mounting holes facing the holes drilled into the wall. 4. Fix the mounting spacer to the wall with the four 3mm diameter screws (not supplied;...
  • Page 35 ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 6. Bring the terminal's body close to the mounting spacer, with the terminal's mounting holes (2 on Figure 2.3) facing the screw bosses on the mounting spacer. 7. Fix the terminal's body to the mounting spacer with the 4 M3X25 screws (see Figure 3.12).
  • Page 36 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide Figure 3.14: Smoked front cover plugging 11. Fix the smoked front cover to the terminal's body using the 2 M2.5X14 screws and the L-shaped Torx screw driver. Plug the 2 screw rubber caps on top of the 2 M2.5X14 screw heads (see Figure 3.15).

  • Page 37: Installation With Specific Wi-Fi™ Mounting Spacer

    ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 4. Installation with specific Wi-Fi™ Mounting Spacer NOTE: Prior to this installation, the following elements need to be purchased in addition to the standard package: • One (1) MA WI-FI PACK, containing a Wi-Fi™ dongle plus a Wi-Fi™ licence dedicated to the terminal •...

  • Page 38: Required Tools (Not Supplied)

    ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide Required tools (not supplied) • One (1) Philips head screw driver • One (1) Drill, (with a Ø 5mm drill bit) • Four (4) Ø 3mm screws • One (1) MA WI-FI PACK •...
  • Page 39 ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure Figure 3.18: Four fixing holes layout 3. Bring the mounting spacer close to the wall, with its mounting holes facing the holes drilled into the wall. 4. Fix the mounting spacer to the wall with the four 3mm diameter screws (see Figure 3.19).
  • Page 40 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide 5. Connect the USB cable to the Wi-Fi™ dongle and install them inside the mounting spacer (see Figure 3.20). Figure 3.20: Wi-Fi™ dongle installation 6. Wire the necessary cables on the block connectors according to Section 4; then plug the block connectors into the terminal blocks (6 on Figure 2.3).
  • Page 41 ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure Figure 3.21: Terminal’s body fixing 10. Switch on power supply from electrical source and confirm that the terminal switches on (checking light from LED indicator and sound from buzzer). 11.
  • Page 42 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide 12. Plug the smoked front cover onto the terminal's body, plugging first the top part and then the bottom part (see Figure 3.23). Apply pressure on the whole surface of the smoked front cover to make sure it is correctly plugged.
  • Page 43 ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 13. Fix the smoked front cover to the terminal's body using the 2 M2.5X14 screws and the L-shaped Torx screw driver. Plug the 2 screw rubber caps on top of the 2 M2.5X14 screw heads (see Figure 3.24). Figure 3.24: Smoked front cover fixing 14.

  • Page 44: Smoked Front Cover Disassembly

    ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide 5. Smoked front cover disassembly Equipment from the initial package to use • One (1) L-shaped Torx screw driver Step by step procedure 1. Remove the two screw rubber caps and unscrew the two M2.5X14 screws using the L-shaped Torx screw driver (see Figure 3.25).
  • Page 45 ® MorphoAccess J Series – Installation Guide Section 3: Installation procedure 2. Unclip the bottom right side of the smoked front cover and then pull the smoked front cover up briskly while holding it by the bottom left side (see Figure 3.26).
  • Page 46 ® Section 3: Installation procedure MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 47: Electrical Interface

    ECTION L E C T R I C A L I NTE R F AC E...
  • Page 48 ® Section 4: Electrical interface MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 49: Wiring Overview

    ® MorphoAccess J Series – Installation Guide Section 4: Electrical interface Before proceeding, make sure that the person in charge of installation and connections is properly connected to earth, in order to prevent Electrostatic Discharges (ESD). 1. Wiring overview Note that all connections of the MorphoAccess® J Series terminal described hereafter are of SELV (Safety Electrical Low Voltage) type.

  • Page 50: Output Relay

    ® Section 4: Electrical interface MorphoAccess J Series – Installation Guide 2. Output relay Relay 1 Contact Relay 0 Relay 2 Contact Relay 1 Relay ratings Load characteristics: • 1A max at 30 VDC according to the safety extra low voltage requirements independently of the power supply.

  • Page 51: Example Of Connection For Electrical Door Locks

    ® MorphoAccess J Series – Installation Guide Section 4: Electrical interface Example of connection for electrical door locks DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 52: Tamper Switch

    ® Section 4: Electrical interface MorphoAccess J Series – Installation Guide 3. Tamper switch Switch_User1 Tamper switch Contact 0 Switch_User2 Tamper switch Contact 1 Switch operating Smoked front cover assembled or terminal (with or without mounting spacer) fixed on the wall: Switch ON Smoked front cover disassembled or terminal (with or without mounting spacer) removed from the wall:...

  • Page 53: Power Supply

    ® MorphoAccess J Series – Installation Guide Section 4: Electrical interface 4. Power supply +12V Positive 12 Volts, power supply Ground power supply External power supply • must comply with CEE/EEC EN60950 standard • Volts ± (regulated) Amp. Minimum (peak) (1 Amp.

  • Page 54: Wiegand Output Wiring

    ® Section 4: Electrical interface MorphoAccess J Series – Installation Guide 5. Wiegand output wiring Ground for Wiegand / RS485 / Dataclock TR- / D1 Out Wiegand D1 TR+ / D0 Out Wiegand D0 LED1 Wiegand LED1 LED1 Wiegand LED2 Electrical interface is in conformity with the Security Industry Association's Wiegand standard March 1995, and it is 5V TTL compatible.

  • Page 55: Data Clock Output Wiring & Com Rs485 Serial Port

    ® MorphoAccess J Series – Installation Guide Section 4: Electrical interface 6. Data Clock output wiring & COM RS485 serial port DATA CLOCK COM RS485 Ground Ground TR- / D1 Clock RS485 TX/RX TR+ / D0 Data RS485 TX/RX Data Clock output wiring The electrical interface is 5V TTL compatible.

  • Page 56: Ethernet Wiring

    ® Section 4: Electrical interface MorphoAccess J Series – Installation Guide 7. Ethernet wiring ® Ethernet interface can be used to power the MorphoAccess J Series terminal through POE (Power Over Ethernet) mode. According to the POE standard two modes are available: power on data pins and power on dedicated pins. ®...

  • Page 57: Rj 45 Wiring Recommendations

    ® MorphoAccess J Series – Installation Guide Section 4: Electrical interface RJ 45 wiring recommendations Signals TX(+) TX(-) RX(+) RX(-) Ground EIA/TIA White White White White T568B Orange Blue Green Brown orange green blue Brown Colours EIA/TIA White White White White White White...
  • Page 58 ® Section 4: Electrical interface MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 59 ECTION S E R N T E R F A C E...

  • Page 60: User Interface

    ® Section 5: User Interface MorphoAccess J Series – Installation Guide ® MorphoAccess J Series terminals can work according to four modes: • Identification • Authentification (only if equipped with a contactless smartcard reader) • Multi-factor mode (only if equipped with a contactless smartcard reader) •...

  • Page 61: Morphoaccess® J Series Terminal Modes

    ® MorphoAccess J Series – Installation Guide Section 5: User Interface ® MorphoAccess J Series terminal modes Identification mode Local identification (fingerprint capture) with a local base. This is the default mode for terminals that are not equipped with a contactless smartcard reader.

  • Page 62: Proxy Mode

    ® Section 5: User Interface MorphoAccess J Series – Installation Guide Proxy mode ® Command sending to the MorphoAccess J Series terminal The application is controlled by host. Both Multi-factor and Proxy modes can be configured. Please refer to sections of MorphoAccess®...

  • Page 63: Morphoaccess® J Series Terminal Configuration

    ® MorphoAccess J Series – Installation Guide Section 5: User Interface ® MorphoAccess J Series terminal Configuration There are two ways to configure MorphoAccess® J Series terminals: • through the Ethernet interface (remote management) • using USB key containing configuration scripts (local management) Configuration procedures are described inside the MorphoAccess®...

  • Page 64: Anti-Tamper And Anti-Pulling Switches Operating

    ® Section 5: User Interface MorphoAccess J Series – Installation Guide 3. Anti-tamper and anti-pulling switches operating Anti-tamper switches See item 5 on figure 2.2 (section 2, paragraph 3) These switches are activated when the smoked front cover is plugged in. Once activated, among the 2 terminal's USB ports, only the rear one is functional (the front one is neither functional nor accessible, since recovered by the smoked front cover).

  • Page 65: Anti-Pulling Switches

    ® MorphoAccess J Series – Installation Guide Section 5: User Interface Anti-pulling switches See item 3 on figure 2.3 (section 2, paragraph 4) These switches are activated as soon as there is enough pressure applied on the terminal against the wall or the mounting spacer. They are deactivated as soon as this pressure is not big enough, e.g.
  • Page 66 ® Section 5: User Interface MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 67 ECTION O M P A T I B L E C C E S S O R I E S O F T W A R E I C E N C E S A N D O F T W A R E P P L I C A T I O N S...

  • Page 68: Compatible Accessories, Software Licences And Soft

    ® Section 6: Compatible Accessories, Software Licences and Software Applications MorphoAccess J Series The following items can be ordered directly to Morpho or official distributor, ® so as to enjoy all the features of your MorphoAccess J Series terminal: • Power supply units ®...

  • Page 69: Recommendations

    ECTION E C O M M E N D A T I O N S...
  • Page 70 ® Section 7: Recommendations MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 71: Areas Containing Combustibles

    ® MorphoAccess J Series – Installation Guide Section 7: Recommendations Areas containing combustibles ® It is strongly recommended that you do not install your MorphoAccess Series terminal in the vicinity of gas stations, petroleum processing facilities or any other facility containing flammable or combustible gasses or materials. General precautions ®...

  • Page 72: Date / Time Synchronisation

    ® Section 7: Recommendations MorphoAccess J Series – Installation Guide Date / Time synchronisation ® If you want to use the MorphoAccess J Series terminal for application requiring high time precision, we recommend synchronising regularly your ® MorphoAccess J Series terminal time with an external clock. ®...
  • Page 73 ECTION PPE NDI X I NG E R P R I N T P L AC E ME NT R UL E S...
  • Page 74 ® Appendix 1: Fingerprint placement rules MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 75: Appendix 1: Fingerprint Placement Rules

    ® MorphoAccess J Series – Installation Guide Appendix 1: Fingerprint placement rules ® To ensure a good quality contact of your finger on the MorphoAccess J Series terminal you must leave your finger on the sensor until sensor light is turned off.
  • Page 76 ® Appendix 1: Fingerprint placement rules MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 77 ECTION PPE NDI X I B LI OGR APHY...
  • Page 78 ® Appendix 2: Bibliography MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...

  • Page 79: Appendix 2: Bibliography

    ® MorphoAccess J Series – Installation Guide Appendix 2: Bibliography Administrator Information ® MorphoAccess J Series terminal User Guide ® This document describes operating mode and MorphoAccess J Series terminal settings ® MorphoAccess Parameters Guide The complete description of terminal configuration files Developer Information ®...

  • Page 80: Support Tools

    ® Appendix 2: Bibliography MorphoAccess J Series – Installation Guide Support Tools Configuration Tool User Guide Configuration Tool user guide, via Ethernet USB Tool User Guide Configuration Tool user guide, via USB key ® MorphoAccess Upgrade Tools User Guide Upgrade Tool user guide about firmware upgrading procedures DOCUMENT SSE-0000077503-04 - M 2011 ARCH...
  • Page 81 ECTION UP POR T...
  • Page 82 ® Section 10: Support MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...
  • Page 83 ® MorphoAccess J Series – Installation Guide Section 10: Support Customer service Morpho SAV Terminaux Biométriques Boulevard Lénine - BP428 76805 Saint Etienne du Rouvray FRANCE Phone: +33 2 35 64 53 52 Hotline Morpho Support Terminaux Biométriques 18, Chaussée Jules César 95520 Osny FRANCE hotline.biometrics@t.my-technicalsupport.com...
  • Page 84 ® Section 10: Support MorphoAccess J Series – Installation Guide DOCUMENT SSE-0000077503-04 - M 2011 ARCH ORPHO OCUMENT EPRODUCTION AND DISCLOSURE PROHIBITED...
