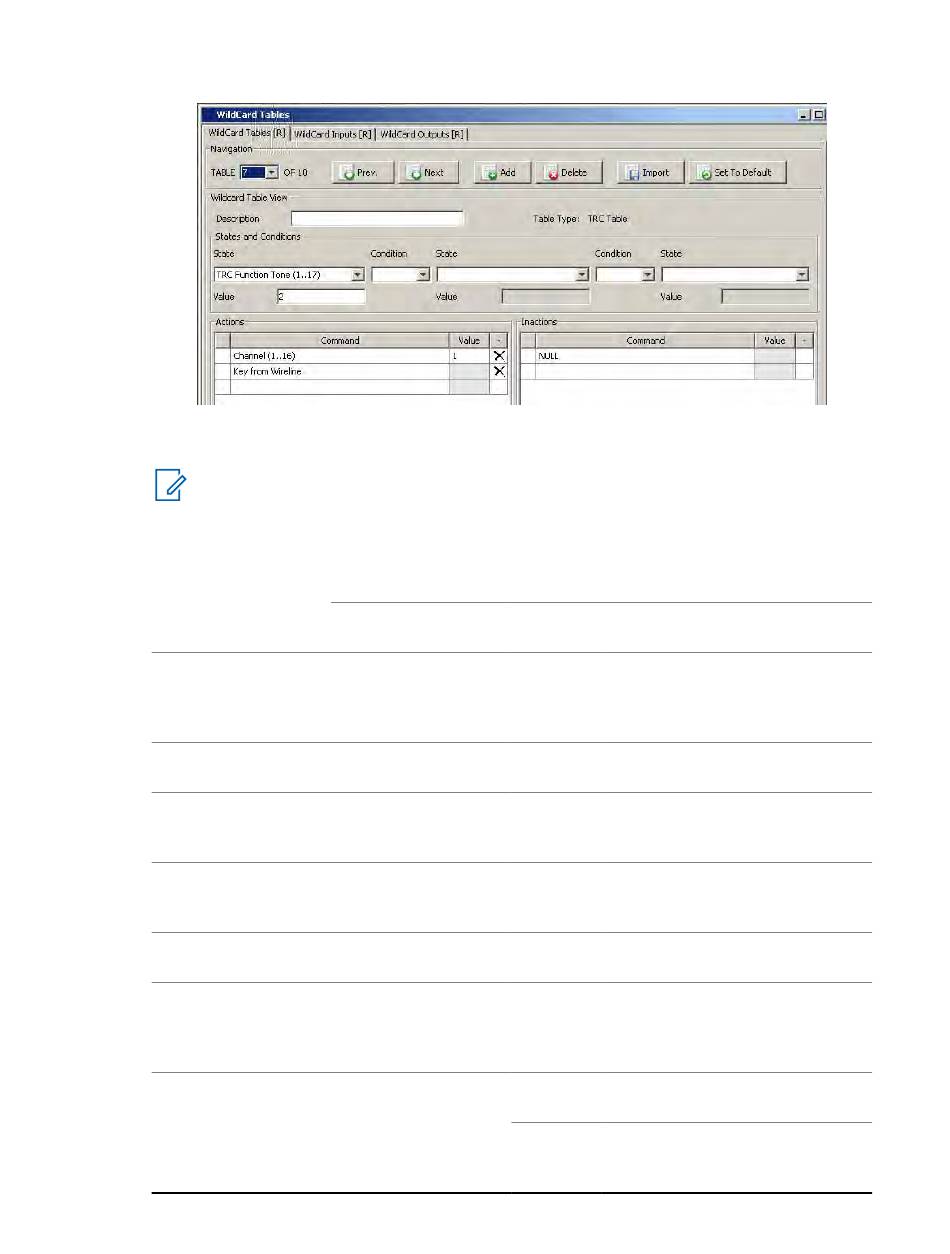

Figure 126: CSS - WildCard Tables Example

7 Click Yes to reset the WildCard Tables to their default structure. The following default WildCard
Tables are created:
NOTICE: WildCard Table numbers are arbitrary and shown for illustration purposes.
Memory size and the number of States and Commands in each table limit the maximum
number of WildCard tables.
Wild- Descrip-
Card tion
Table
1 In-cabi-
net RPT
2 Rx In-
hibit
3 External
PTT
4 RD
STAT-
RX ACT
5 Tx In-
hibit
6
7
Appendix A: Conventional GTR 8000 Base Radio Option Kits
States and Condi-
tion
State Value
Input 6 n/a
Input 7 n/a
Input 5 n/a
RX n/a
Qualifi-
ers Met
Input 3 n/a
TRC 1
Function
Tone
(1..17)
TRC 2
Function
(1..17)
Actions
Com- Value
mand
In-cabi- n/a
net Re-
peat ON
RX IN- n/a
HIBIT
Key n/a
from Wi-
deband
Set Out- 7
put
(1..12)
TX IN- n/a
HIBIT
Monitor n/a
Channel 1
(1..16)
Key n/a
from
Wireline
MN003286A01-E
Inactions
Com- Value
mand
In-Cabi- n/a
net Re-
peat
OFF
RX EN- n/a
ABLE
Dekey n/a
from Wi-
deband
Clear 7
Output
(1..12)
TX EN- n/a
ABLE
NULL n/a
NULL n/a
n/a n/a
