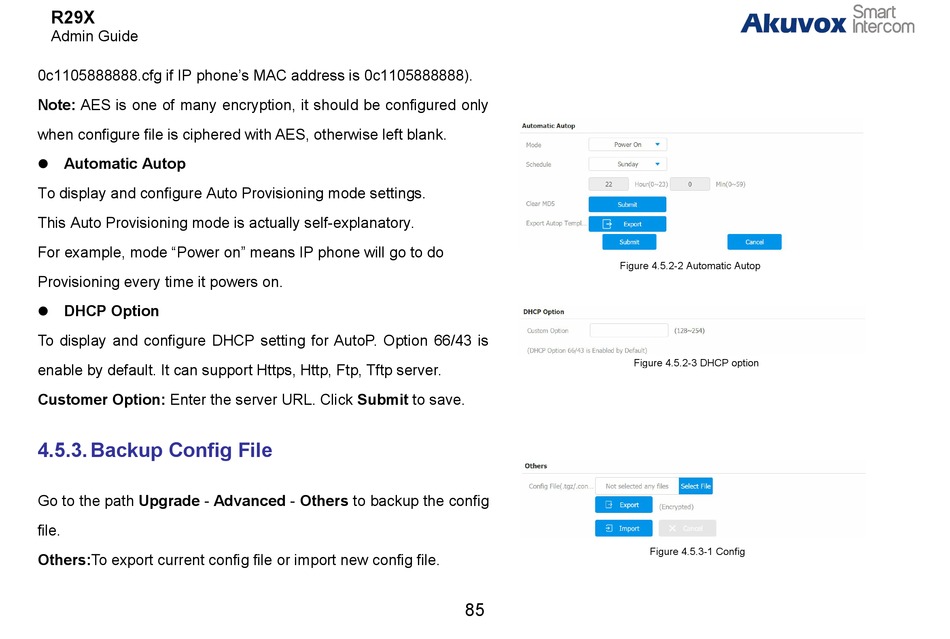

Akuvox Smart Intercom R29 Series Admin Manual page 96

R29X
Admin Guide
0c1105888888.cfg if IP phone's MAC address is 0c1105888888).
Note: AES is one of many encryption, it should be configured only
when configure file is ciphered with AES, otherwise left blank.
 Automatic Autop
To display and configure Auto Provisioning mode settings.
This Auto Provisioning mode is actually self-explanatory.
For example, mode "Power on" means IP phone will go to do
Provisioning every time it powers on.
 DHCP Option
To display and configure DHCP setting for AutoP. Option 66/43 is
enable by default. It can support Https, Http, Ftp, Tftp server.
Customer Option: Enter the server URL. Click Submit to save.
4.5.3. Backup Config File
Go to the path Upgrade - Advanced - Others to backup the config
file.
Others:To export current config file or import new config file.
Figure 4.5.2-2 Automatic Autop
Figure 4.5.2-3 DHCP option
85
Figure 4.5.3-1 Config
