LED will be up.
Min/Max photoresistor: Photoresistor value relates to light
intensity and larger value mean that light intensity is smaller. When
photoresistor value is greater than max value, LED will turn on. In
contrast, when photoresistor value is less than min value, infrared
LED will turn off and the device turns to normal mode.
If setup the LED type as schedule, click Threshold button to sense
the intensity of the current environment.
Time Start/Stop: In the meantime, the R29 is forced to turn on
LED.
Users can also configure the LED from website, go to the path
Intercom - Advanced - LED.

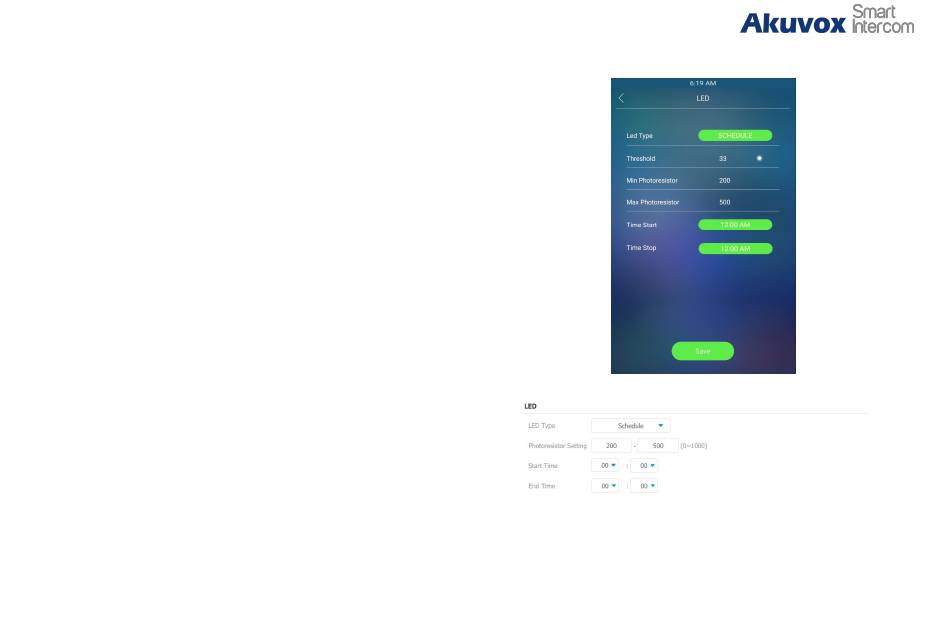

Figure 4.1.1-3 LED schedule
Figure 4.1.1-4 LED
