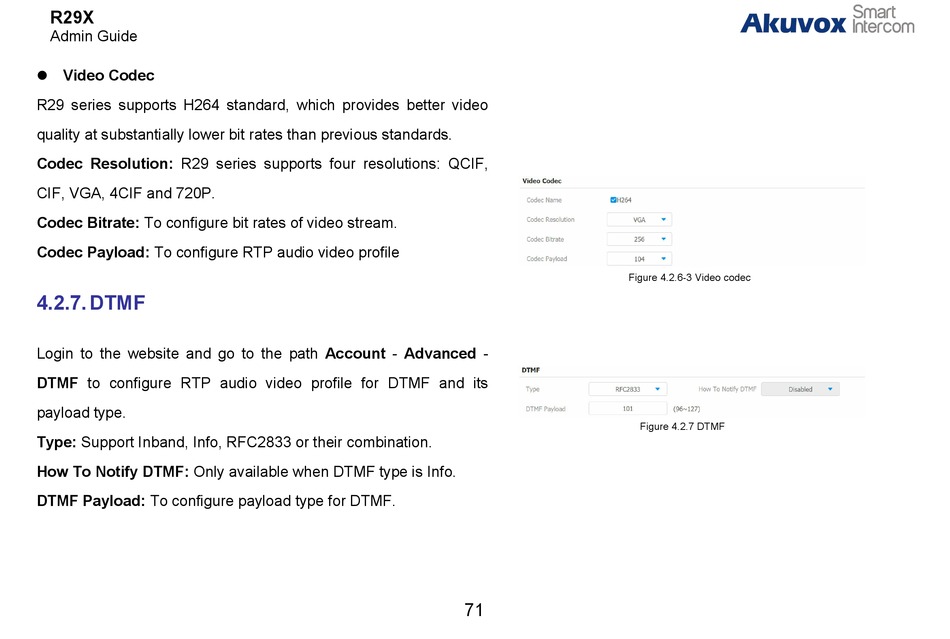

Akuvox Smart Intercom R29 Series Admin Manual page 82

R29X
Admin Guide
 Video Codec
R29 series supports H264 standard, which provides better video
quality at substantially lower bit rates than previous standards.
Codec Resolution: R29 series supports four resolutions: QCIF,
CIF, VGA, 4CIF and 720P.
Codec Bitrate: To configure bit rates of video stream.
Codec Payload: To configure RTP audio video profile
4.2.7. DTMF
Login to the website and go to the path Account - Advanced -
DTMF to configure RTP audio video profile for DTMF and its
payload type.
Type: Support Inband, Info, RFC2833 or their combination.
How To Notify DTMF: Only available when DTMF type is Info.
DTMF Payload: To configure payload type for DTMF.
Figure 4.2.6-3 Video codec
Figure 4.2.7 DTMF
71
