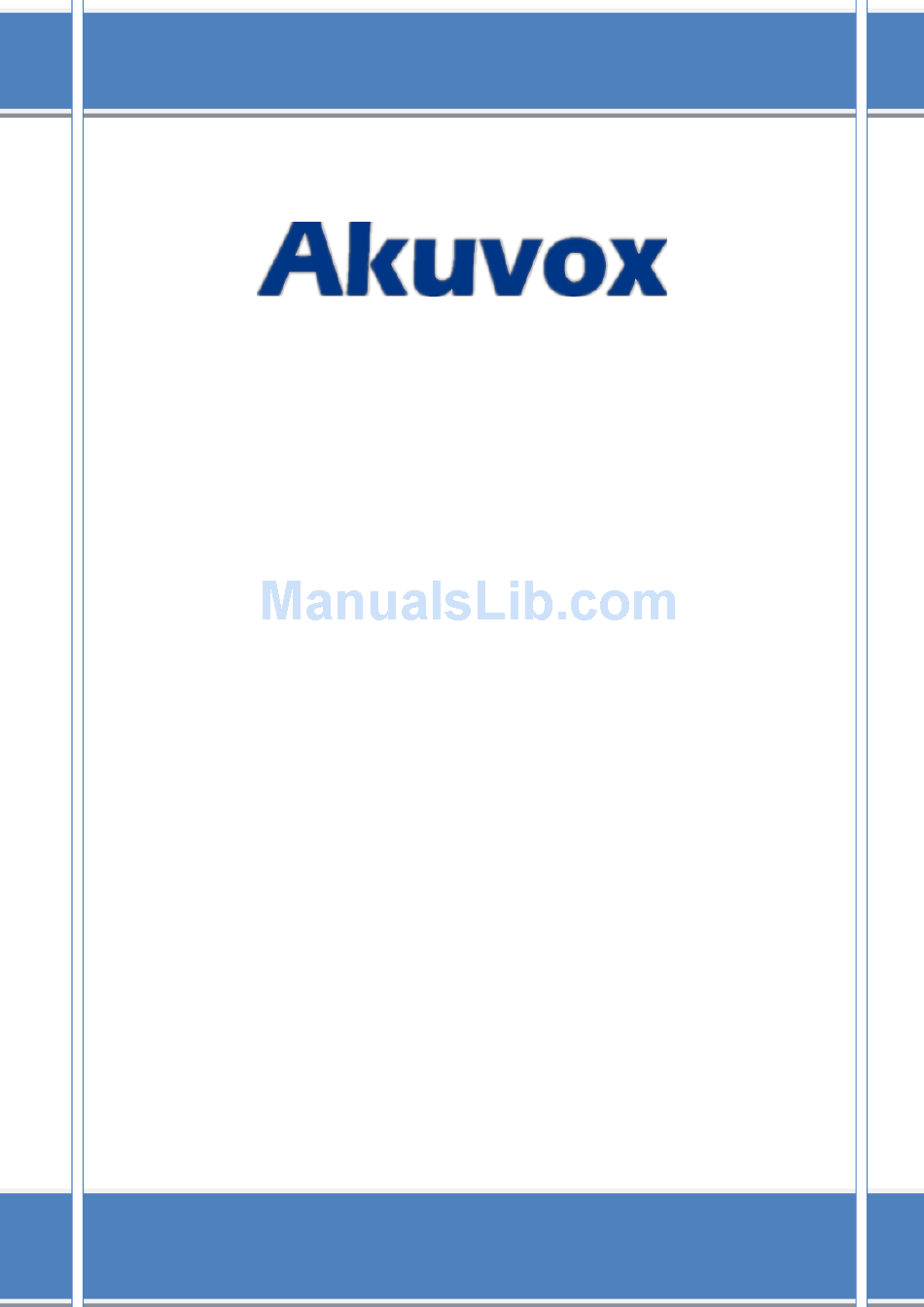

- Page 1 Akuvox SDP-R25 User Manual 12/05/2014...
-
Page 2: Table Of Contents
Table of Contents Production Overview..............3 1. Production Description..................3 2. Features......................3 Configuration................5 1. Web Login......................5 1.1. Obtaining the IP address............... 5 1.2. Login the Web..................5 2. Status........................6 3. Language......................8 4. Network configuration..................8 5. Account......................10 6. Push Button....................14 7. -
Page 3: Production Overview
Production Overview 1. Production Description The Akuvox SPD-R25 is the video door phone, that you can connect with your Akuvox IP Phones for remote unlock control and monitoring. You can operate the indoor handset to communicate with visitors via voice and video, and unlock the door if you wish. It’s applicable in apartment, villas, Office, building and so on. - Page 4 Lens: 4.0mm/F2.8 Viewing Angle (Diagonal): 50 Minimum Illumination: 1 LUX (without LED Illumination) LED: 6 LEDs Power Requirement: DC12V Operating Temperature; -30C ~ 40C Weight: 180g Size (WXHXD)185 x 68 x 50 mm ...
-
Page 5: Configuration
1. Web Login 1.1. Obtaining the IP address The Akuvox R25 uses Static IP by default, and the default IP address is 192.168.1.100. If the IP address is unknown, press the call button when the door phone is initialing, after a short period of time, the phone will announce its IP. -
Page 6: Status
2. Status Status, including product information, network information and Account information, can be viewed from, Status > Basic. - Page 7 Sections Description Product Information To display the device’s information such as Model name, MAC address (IP device’s physical address), Firmware version and Hardware firmware. Network Information To display the device’s Networking status(LAN Port),such as Port Type(which could be DHCP/Static/PPPoE), Link Status, IP Address, Subnet Mask, Gateway, Primary DNS server, Secondary DNS server, Primary NTP server and Secondary NTP server(NTP server is used to...
-
Page 8: Language
3. Language Web Language can be configured from, Phone > Time/Lang. Select the desire language from the pull-down list of Type. The default language is English. 4. Network configuration To configure the basic network settings, Go to Network > Basic. The static IP is set as default, and its IP address is 192.168.1.100. - Page 9 Sections Description LAN Port To display and configure LAN Port settings. DHCP: If selected, IP phone will get IP address, Subnet Mask, Default Gateway and DNS server address from DHCP server automatically. Static IP: If selected, you have to set IP address, ...
-
Page 10: Account
Version: To select supported TR069 version (version 1.0 or 1.1). ACS/CPE: ACS is short for Auto configuration servers as server side, CPE is short for Customer-premise equipment as client side devices. URL: To configure URL address for ACS or CPE. ... - Page 11 Sections Description SIP Account To display and configure the specific Account settings. Status: To display register result. Display Name: Which is sent to the other call party for displaying. Register Name: Allocated by SIP server provider, used for authentication.
- Page 12 Registration Period: The registration will expire after Registration period, the IP phone will re-register automatically within registration period. SIP Server 2 To display and configure Secondary SIP server settings. This is for redundancy, if registering to Primary SIP server fails, the IP phone will go to Secondary SIP server for registering.
- Page 13 Sections Description Codecs To display and configure available/unavailable codecs list. Codec means coder-decoder which is used to transfer analog signal to digital signal or vice versa. Familiar codecs are PCMU(G711U), PCMA(G711A), G722 (wid-bandth codecs), G723,G726,G729 and so on. Call To display and configure call-related features. Max Local SIP Port: To configure maximum local sip ...
-
Page 14: Push Button
send UDP keep-alive message periodically to router to keep NAT port alive. UDP Alive Msg Interval: Keepalive message interval. Rport: Remote Port, if enabled, it will add Remote Port into outgoing SIP message for designated account. 6. Push Button To configure Push Button, go to Push Button. -
Page 15: Phone
To configure the max call time Max Call Time To enable or disable the Push to Hang up function Push to Hang up 7. Phone 7.1. Call Feature Call feature can be configured from, Phone > Call Feature. Sections Description Call Waiting To enable or disable Call Waiting. -
Page 16: Voice
Auto Redial Auto redial allows IP phones to redial an unsuccessful call for designated times within designated interval. Auto Redial: To enable or disable auto redial feature. Auto Redial Interval: Determine the interval between two consecutive attempts. Auto Redial Times: Determine how many times to ... - Page 17 Sections Description Echo Canceller Echo Canceller: To remove acoustic echo from a voice communication in order to improve the voice quality . VAD (Voice Activity Detection): Allow IP phone to detect the presence or absence of human speech during a call. When detecting period of “silence”, VAD replaces that silence efficiently with special packets that indicate silence is occurring.
-
Page 18: Country Ringtone
Jitter Buffer Jitter buffer is a shared data area where voice packets can be collected, stored, and sent to the voice processor in even intervals. Jitter is a term indicating variations in packet arrival time, which can occur because of network congestion, timing drift or route changes. -
Page 19: Phonebook
8. PhoneBook 8.1. Call Log Sections Description Call History To display call history records. Available call history type are All calls, Dialed calls, Received calls, Missed calls, Forwarded calls. HangUp: To click to hangup ongoing call on the IP phone. Note: For “HangUp”... -
Page 20: Security
9. Security 9.1. Web Password Modify To modify web passoword, go to Security > Basic Sections Description Web Password Modify To modify user’s password. Current Password: The current password you used. New Password: Input new password you intend to ... - Page 21 Sections Description Web Server Certificate To display or delete Certificate which is used when IP phone is connected from any incoming HTTPs request. Note: The default certificate could not be deleted. Web Server Certificate To upload a certificate file which will be used as server certificate.
-
Page 22: Upgrade
Upgrade 10.1. Basic upgrade To upgrade your device, go to Upgrade > Basic. Sections Description Upgrade To select upgrading rom file from local or a remote server automatically. Note: Please make sure it’s right file format for right model. Firmware version To display firmware version, firmware version starts with MODEL name. -
Page 23: Advanced Upgrade
Reset to Factory Setting To enable you to reset IP phone’s setting to factory settings. Reboot To reboot IP phone remotely from Web UI. 10.2. Advanced Upgrade To do the advanced upgrade for your device, go to Upgrade > Advanced. Sections Description PNP Option... - Page 24 address. By default, this SIP message is sent to multicast address 224.0.1.75(PNP server address by standard). DHCP Option To display and configure custom DHCP option. DHCP option: If configured, IP Phone will use designated DHCP option to get Auto Provisioning server’s address via DHCP.
- Page 25 Export Log: Click to export temporary syslog file to local PCAP To start, stop packets capturing or to export captured Packet file. Start: To start capturing all the packets file sent or received from IP phone. Stop: To stop capturing packets. ...
