check the real-time picture via URL:
http://IP_address:8080/video.cgi

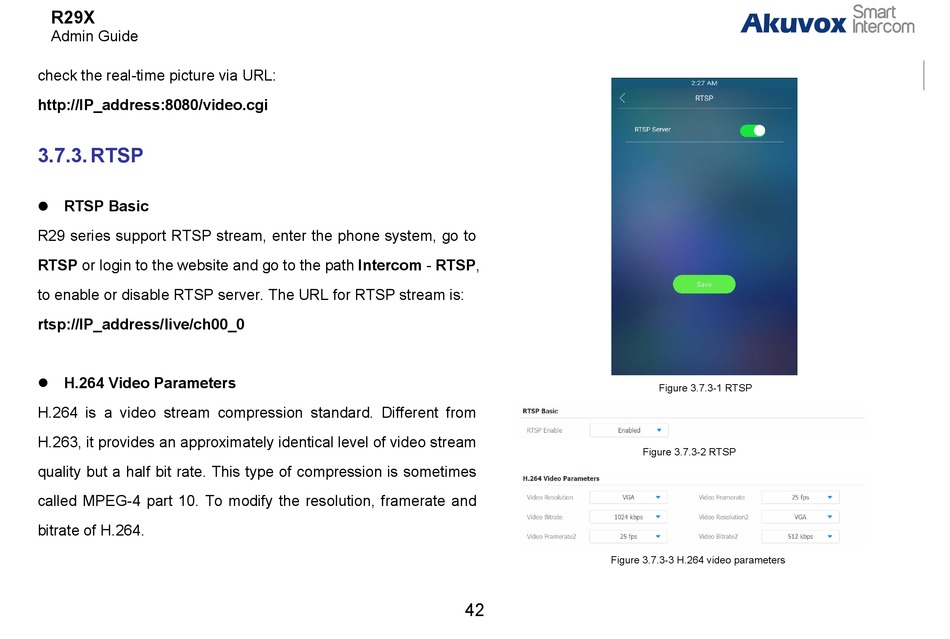

3.7.3. RTSP

 RTSP Basic
R29 series support RTSP stream, enter the phone system, go to
RTSP or login to the website and go to the path Intercom - RTSP,
to enable or disable RTSP server. The URL for RTSP stream is:
rtsp://IP_address/live/ch00_0
 H.264 Video Parameters
H.264 is a video stream compression standard. Different from
H.263, it provides an approximately identical level of video stream
quality but a half bit rate. This type of compression is sometimes
called MPEG-4 part 10. To modify the resolution, framerate and
bitrate of H.264.
Figure 3.7.3-2 RTSP
Figure 3.7.3-3 H.264 video parameters
42
Figure 3.7.3-1 RTSP
