Adjust the tilt angle of your monitor

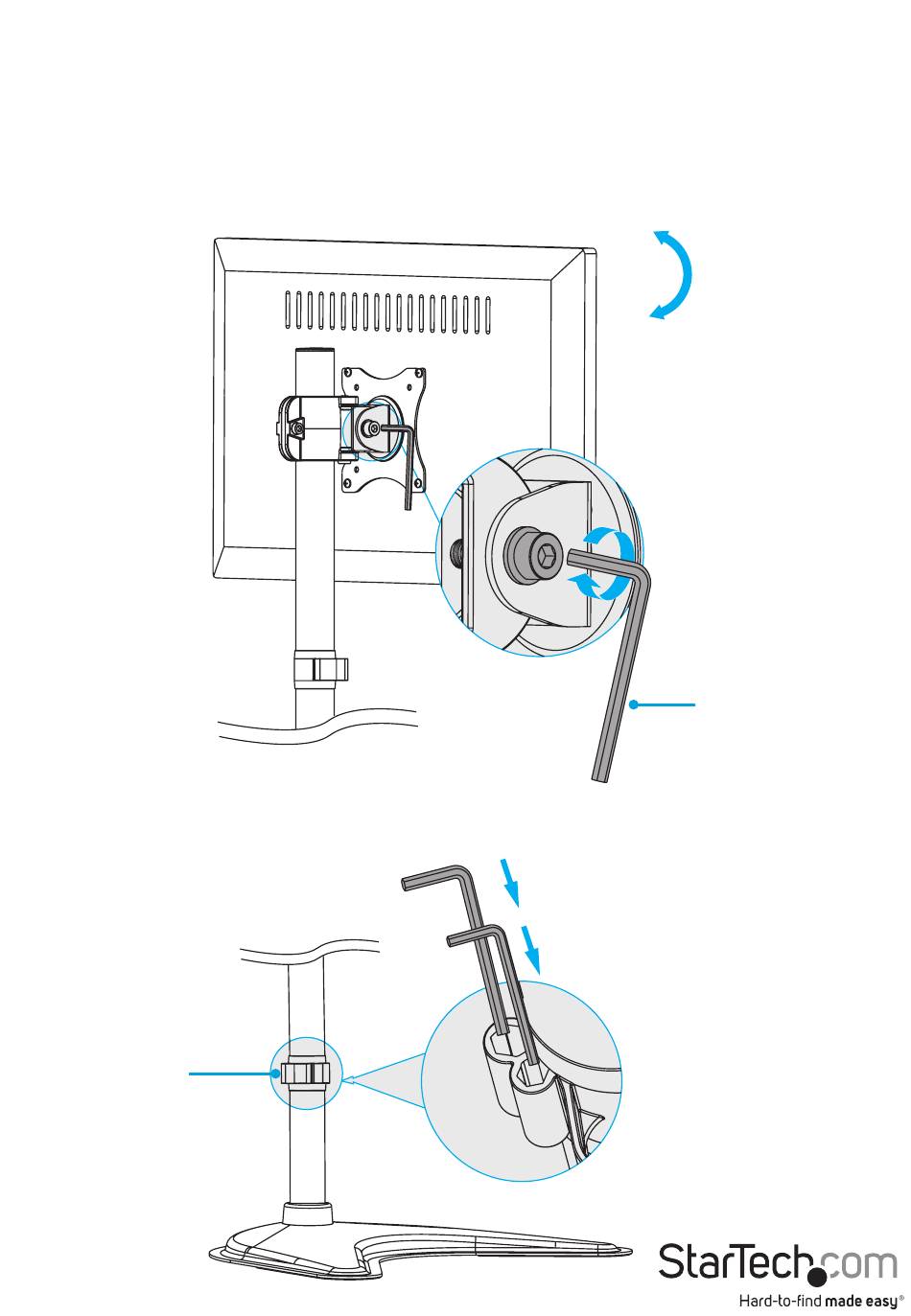

1. To change the angle that a monitor is tilted at, use the 6 mm hex key to turn the
screw in the side of the VESA monitor mount counterclockwise.
2. When the screw is loose, position the monitor at the angle that works best for you.
3. Use the 6 mm hex key to turn the screw clockwise to tighten it. (figure 14)
figure 14
4. When you're done adjusting the tilt angle, you can store the 5mm hex key and the
6 mm hex key in the hex key holder in one of the cable-management clips.
(figure 15)
figure 15
Hex key holder
