Use the 75x75 VESA mounting hole pattern to attach a monitor
To accommodate different monitor sizes, the ARMBARDUOV comes with two sets of
screws that are different lengths and diameters.
To select the appropriate screws for the type of monitor that you're using, complete
the following:
• Determine the depth of the mounting holes on the monitor.
• Determine the diameter of the mounting holes on the monitor.
1. Line up the mounting holes on the back of the monitor with the 75x75 mounting
holes in the VESA monitor mount on the upper pole.
2. While someone holds the monitor in place, insert the M4x12 mm screws or
M5x12 mm screws through the washers, the mounting holes in the VESA monitor
mount, and into the back of the monitor. (figure 13)
3. Use a Phillips screwdriver to tighten the screws.
Caution! If the VESA monitor mount starts to slip down the upper pole when you add
the weight of the monitor, remove the monitor and use the 5 mm hex key to tighten
the screw in the side of the VESA monitor mount. When the screw is tightened, repeat
step 2 to reattach the monitor.
Warning! Do not over-tighten the screws. If you encounter resistance while you're
tightening the screws, stop tightening. Failure to do so could result in damage to the
monitor.
4. Repeat steps 1 to 3 to attach a monitor to the VESA monitor mount attached to the
lower pole.

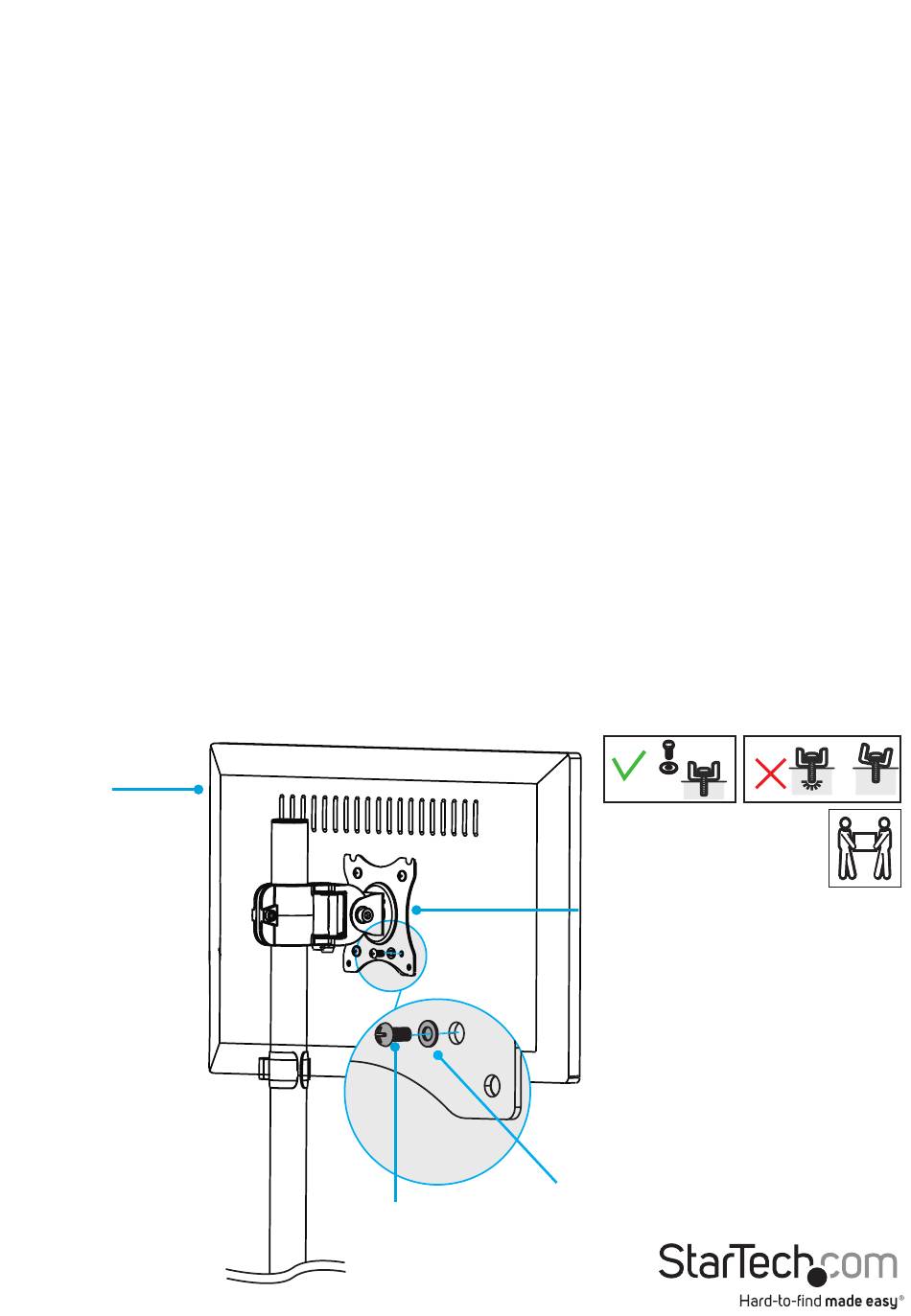

figure 13
Monitor
Instruction manual
M4x12 mm screw
or
M5x12 mm screw
14
VESA monitor mount
Washer
