Summary of Contents for StarTech.com ARMWALLDSLP

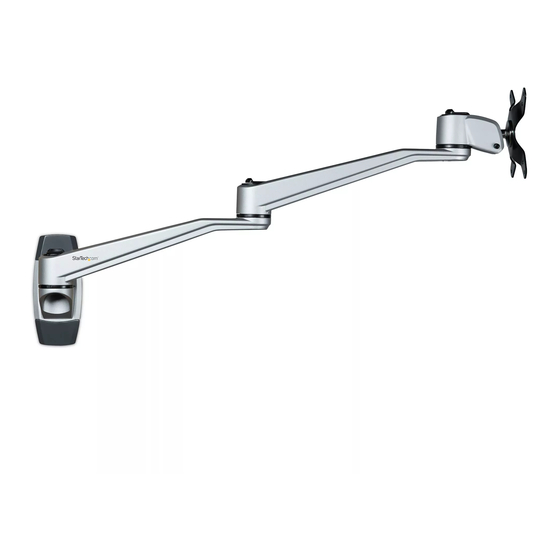

- Page 1 Monitor Wall Mount | Dual Swivel | Long | Premium Actual product may vary from photos User Manual SKU#: ARMWALLDSLP For the latest information and specifications visit www.startech.com/ARMWALLDSLP Manual Revision: 09/13/2019...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Warning Statements
à votre structure de mur. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • Este produto destina-se apenas a uma utilização no interior e não deve ser utilizado no exterior. • Este produto requer uma ligação à terra. Não utilize este produto sem uma ligação à terra. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 5 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり14kgまで支 持できます。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 Säkerhetsåtgärder • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 7: Table Of Contents
Mounting the Wall Mount ........................12 Attaching the Swivel Arms ........................14 Attaching a Monitor ..........................15 Attaching the Monitor Mount ......................15 Adjusting the Monitor Tilt ........................17 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Diagram
Product Diagram Decorative Cap Swivel Arm Wall-Mount Bracket Monitor Mount Swivel Arm To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Dimensions/Rotation
Product Dimensions/Rotation To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Information
Product Information Specifications Type of Measurement Measurement VESA Mounting Hole Pattern 75x75 100x100 Tilt +900 to -150 Screen Size Maximum 30 in. (762 Rotate 3600 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Package Contents
Swivel +1800 to -1800 Weight/Load Capacity 30.8 lb. (14 kg) Package Contents Wall-Mount Bracket Swivel Arms Qty: One Qty: Two To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 12 Monitor Mount Hex Key Qty: One Qty: One Mounting Screws Hand Screw Qty: Two Qty: Four Wall Plugs Qty: Two To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 13: Requirements
(Optional) While mounting, use Wall Screw Anchors if required. Remove the Decorative Caps on the Wall-Mount Bracket by sliding them off of the ends, before mounting the Wall Mount. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 Decorative Caps over the top and bottom of the Wall- Mount Bracket. The Decorative Caps hide the screws used to secure the Wall-Mount Bracket to the mounting surface. Installing the Decorative Caps To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Attaching The Swivel Arms
Mounting Peg until it clicks in place. Using the Hex Key, tighten the Hex Screw on the side of the Swivel Arm, to increase the swivel effort or fix the arm in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 While holding the Thumb Clip and the weight of the Swivel Arm, lift the Swivel Arm up sliding the Mounting Peg out of the Mounting Hole. Repeat steps 1 - 2 to remove the second Swivel Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 17: Attaching A Monitor
Attaching a Monitor Attaching the Monitor Mount Notes: Attaching the Monitor Mount may require two people. The Wall Mount supports up to a maximum of 30.8 lb. (14 kg). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 18 Monitor Mount by loosening or tightening the Hex Screws located on the Monitor Mount next to the Mounting Hole. Removing the Monitor Mount Slide the Thumb Clip away from the Monitor Mount, disengaging the locking mechanism. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 19: Adjusting The Monitor Tilt
Monitor but it is still adjustable. Note: The screw cap located on the opposite side of the Hex Screw is not used for tilt adjustments. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 20 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 21 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
