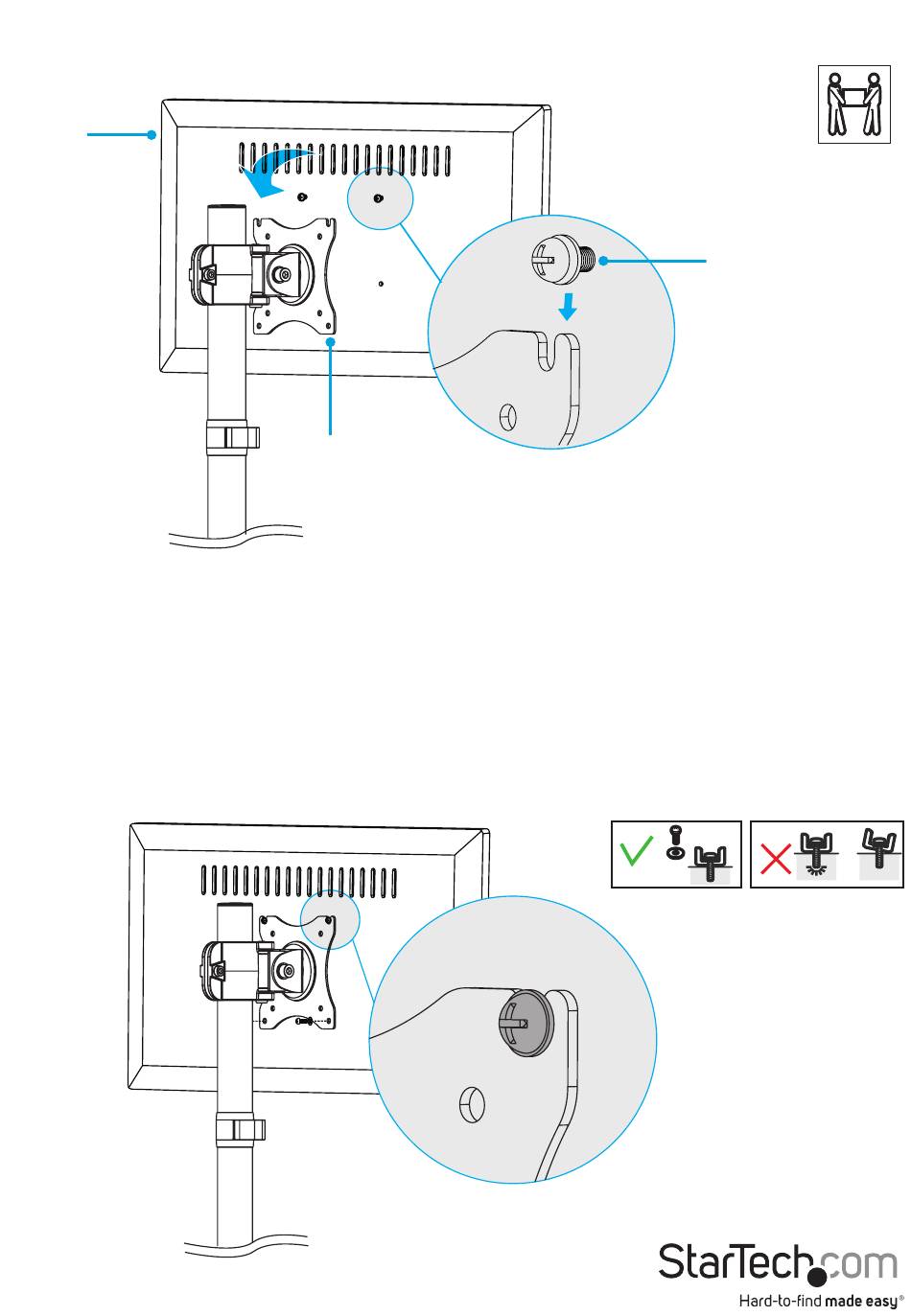

3. Carefully hook the screws into the top two slots on the VESA monitor mount on the
upper pole. (figure 10)
figure 10
Monitor
4. Use a Phillips screwdriver to tighten the screws. (figure 11)
Caution! If the VESA monitor mount starts to slip down the upper pole when you add
the weight of the monitor, remove the monitor and use the 5 mm hex key to tighten
the screw in the side of the VESA monitor mount. When the screw is tightened, repeat
step 3 to reattach the monitor.
Warning! Do not over-tighten the screws. If you encounter resistance while you're
tightening the screws, stop tightening. Failure to do so could result in damage to the
monitor.
figure 11
Instruction manual
VESA monitor mount
12
M4x12 mm screw
or
M5x12 mm screw
