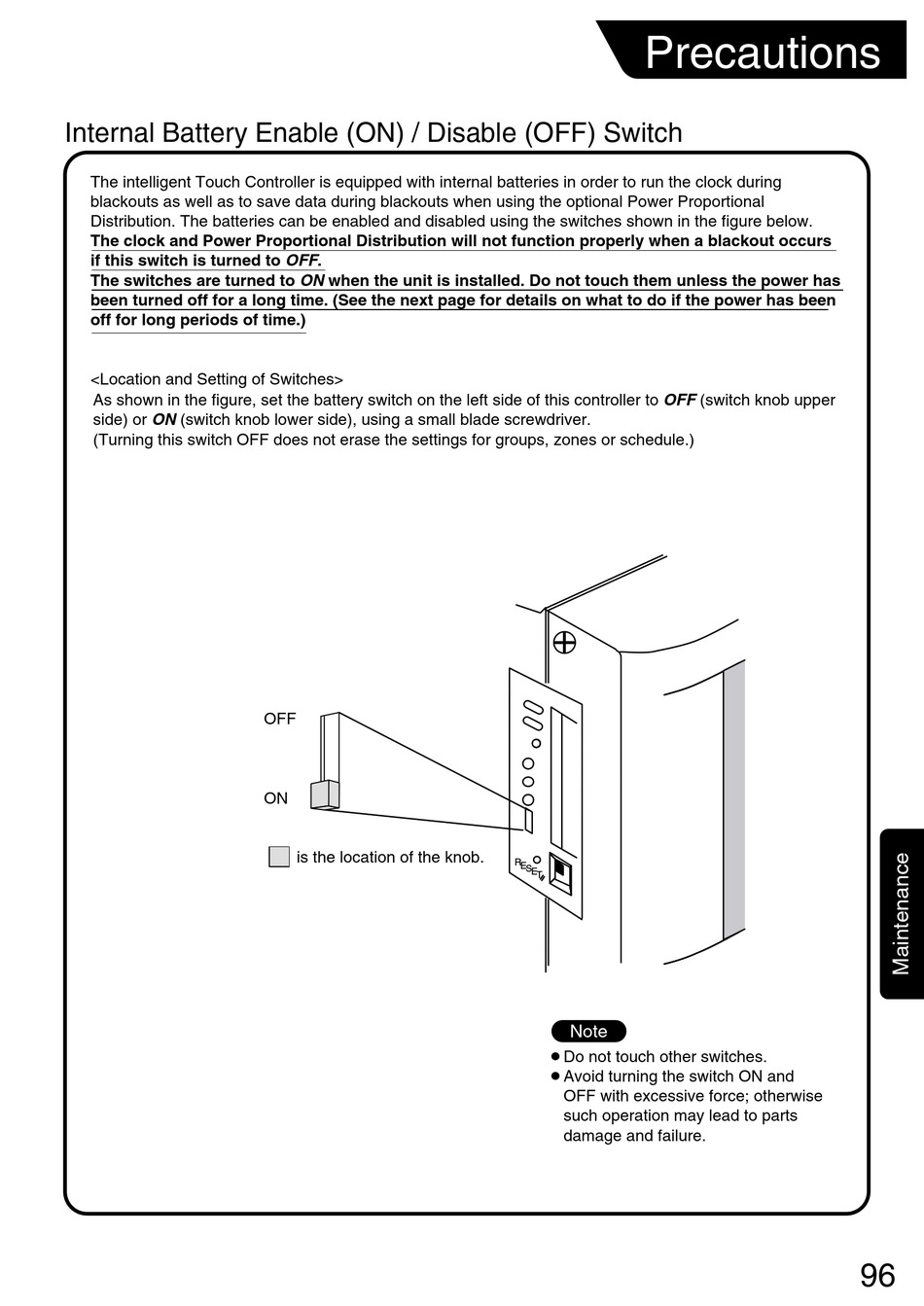

Internal Battery Enable (ON) / Disable (OFF) Switch
The intelligent Touch Controller is equipped with internal batteries in order to run the clock during
blackouts as well as to save data during blackouts when using the optional Power Proportional
Distribution. The batteries can be enabled and disabled using the switches shown in the figure below.
The clock and Power Proportional Distribution will not function properly when a blackout occurs
if this switch is turned to OFF .
The switches are turned to ON when the unit is installed. Do not touch them unless the power has
been turned off for a long time. (See the next page for details on what to do if the power has been
off for long periods of time.)
<Location and Setting of Switches>
As shown in the figure, set the battery switch on the left side of this controller to OFF (switch knob upper
side) or ON (switch knob lower side), using a small blade screwdriver.
(Turning this switch OFF does not erase the settings for groups, zones or schedule.)
OFF
ON
is the location of the knob.
Precautions
R E
S E
T
Note
¡Do not touch other switches.
¡Avoid turning the switch ON and
OFF with excessive force; otherwise
such operation may lead to parts
damage and failure.
