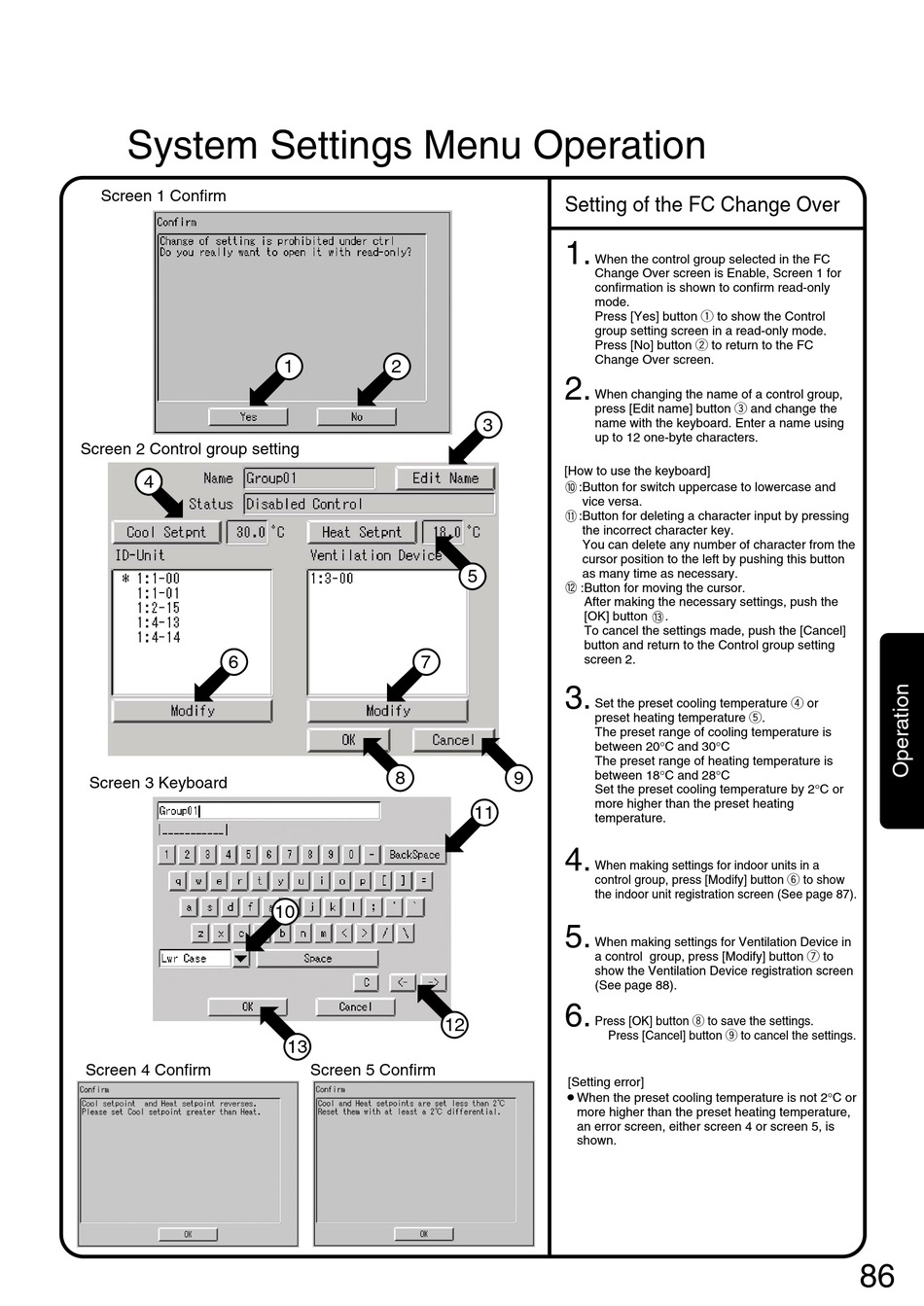

System Settings Menu Operation
Screen 1 Confirm
Screen 2 Control group setting
4
3
6
Screen 3 Keyboard
Screen 4 Confirm
1 2
7
8
10
12
13
Screen 5 Confirm
Setting of the FC Change Over
1.
When the control group selected in the FC
Change Over screen is Enable, Screen 1 for
confirmation is shown to confirm read-only
mode.
Press [Yes] button q to show the Control
group setting screen in a read-only mode.
Press [No] button w to return to the FC
Change Over screen.
2.
When changing the name of a control group,
press [Edit name] button e and change the
3 name with the keyboard. Enter a name using
up to 12 one-byte characters.
[How to use the keyboard]
:Button for switch uppercase to lowercase and
vice versa.
:Button for deleting a character input by pressing
the incorrect character key.
You can delete any number of character from the
cursor position to the left by pushing this button
as many time as necessary.
5
:Button for moving the cursor.
After making the necessary settings, push the
[OK] button
To cancel the settings made, push the [Cancel]
button and return to the Control group setting
screen 2.
3.
Set the preset cooling temperature r or
preset heating temperature t.
The preset range of cooling temperature is
between 20°C and 30°C
The preset range of heating temperature is
between 18°C and 28°C
9
Set the preset cooling temperature by 2°C or
more higher than the preset heating
11
temperature.
4.
When making settings for indoor units in a
control group, press [Modify] button y to show
the indoor unit registration screen (See page 87).
5.
When making settings for Ventilation Device in
a control group, press [Modify] button u to
show the Ventilation Device registration screen
(See page 88).
6.
Press [OK] button i to save the settings.
Press [Cancel] button o to cancel the settings.
[Setting error]
¡When the preset cooling temperature is not 2°C or
more higher than the preset heating temperature,
an error screen, either screen 4 or screen 5, is
shown.
.
