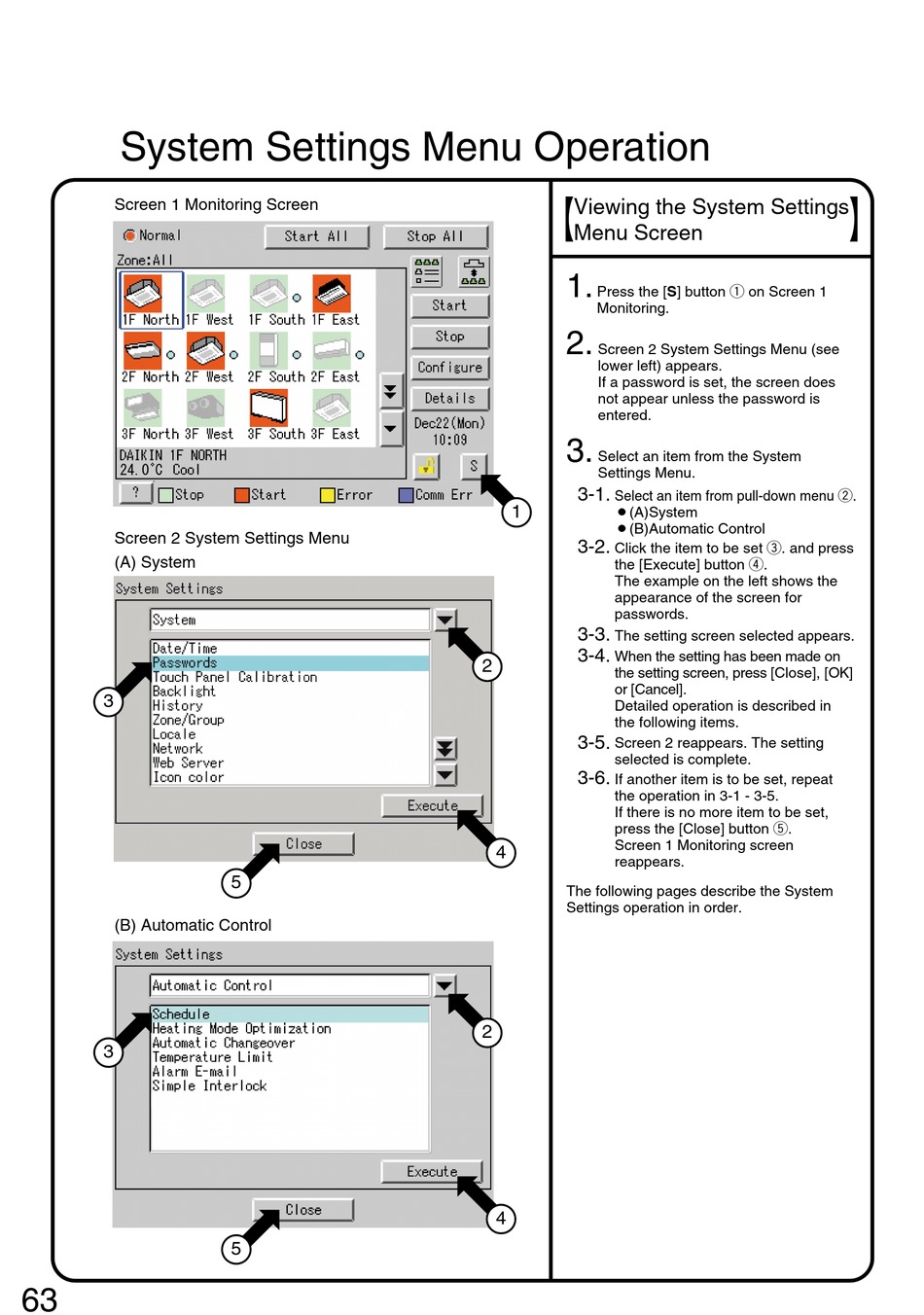

System Settings Menu Operation
Screen 1 Monitoring Screen
Screen 2 System Settings Menu
(A) System
3
(B) Automatic Control
3
63
5
5
Viewing the System Settings
Menu Screen
1.
Press the [S] button q on Screen 1
Monitoring.
2.
Screen 2 System Settings Menu (see
lower left) appears.
If a password is set, the screen does
not appear unless the password is
entered.
3.
Select an item from the System
Settings Menu.
3-1.
Select an item from pull-down menu w.
1
¡(A)System
¡(B)Automatic Control
3-2.
Click the item to be set e. and press
the [Execute] button r.
The example on the left shows the
appearance of the screen for
passwords.
3-3.
The setting screen selected appears.
3-4.
When the setting has been made on
2
the setting screen, press [Close], [OK]
or [Cancel].
Detailed operation is described in
the following items.
3-5.
Screen 2 reappears. The setting
selected is complete.
3-6.
If another item is to be set, repeat
the operation in 3-1 - 3-5.
If there is no more item to be set,
press the [Close] button t.
Screen 1 Monitoring screen
4
reappears.
The following pages describe the System
Settings operation in order.
