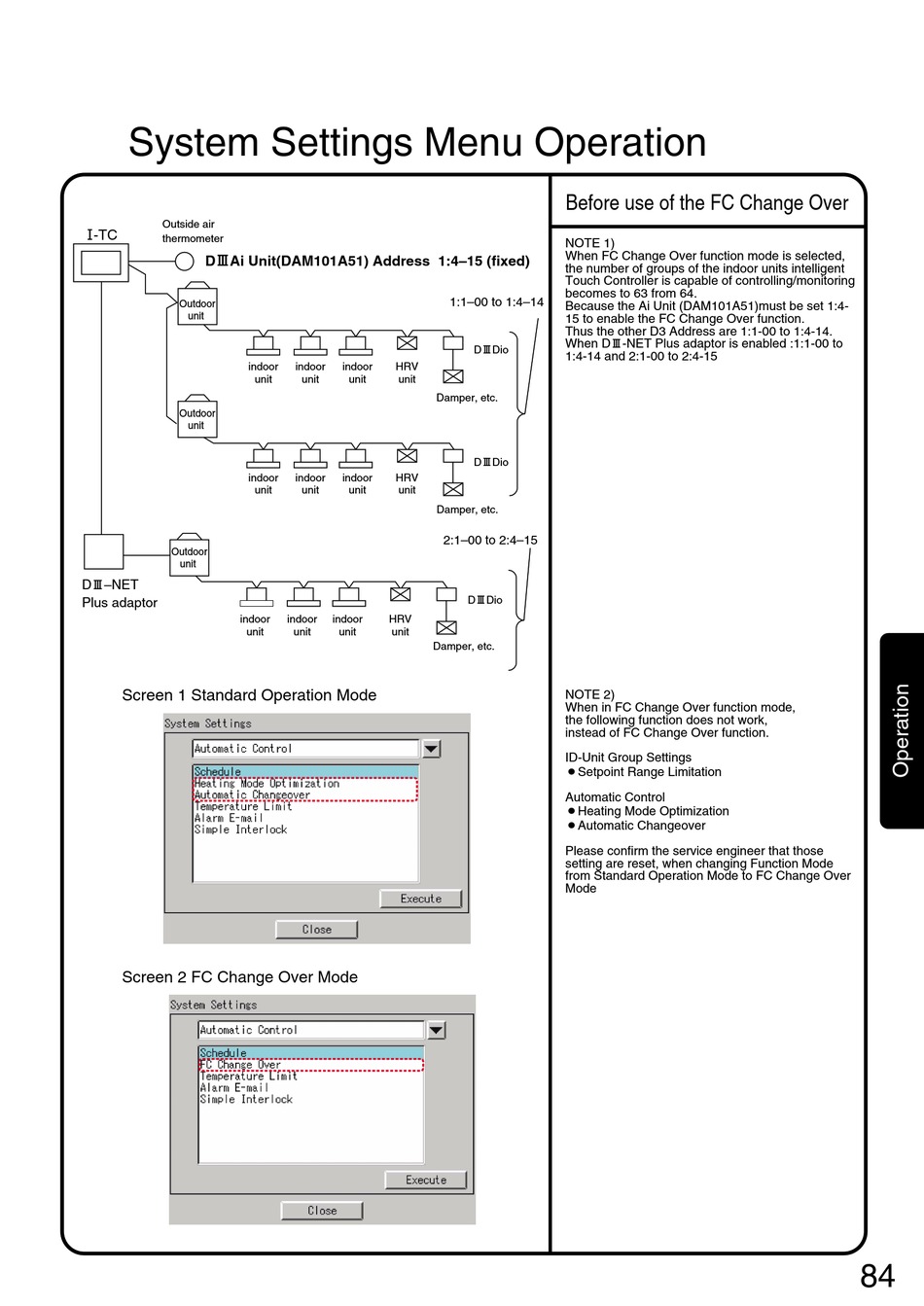

System Settings Menu Operation
Outside air
! -TC
thermometer
D#Ai Unit(DAM101A51) Address 1:4–15 (fixed)
Outdoor
unit
indoor
unit
Outdoor
unit
indoor
unit
Outdoor
unit
#
D –NET
Plus adaptor
indoor
unit
Screen 1 Standard Operation Mode
Screen 2 FC Change Over Mode
1:1–00 to 1:4–14
indoor indoor HRV
unit unit unit
Damper, etc.
indoor indoor HRV
unit unit unit
Damper, etc.
2:1–00 to 2:4–15
indoor indoor HRV
unit unit unit
Damper, etc.
Before use of the FC Change Over
NOTE 1)
When FC Change Over function mode is selected,
the number of groups of the indoor units intelligent
Touch Controller is capable of controlling/monitoring
becomes to 63 from 64.
Because the Ai Unit (DAM101A51)must be set 1:4-
15 to enable the FC Change Over function.
Thus the other D3 Address are 1:1-00 to 1:4-14.
#
When D -NET Plus adaptor is enabled :1:1-00 to
D#Dio
1:4-14 and 2:1-00 to 2:4-15
D#Dio
D#Dio
NOTE 2)
When in FC Change Over function mode,
the following function does not work,
instead of FC Change Over function.
ID-Unit Group Settings
¡Setpoint Range Limitation
Automatic Control
¡Heating Mode Optimization
¡Automatic Changeover
Please confirm the service engineer that those
setting are reset, when changing Function Mode
from Standard Operation Mode to FC Change Over
Mode
