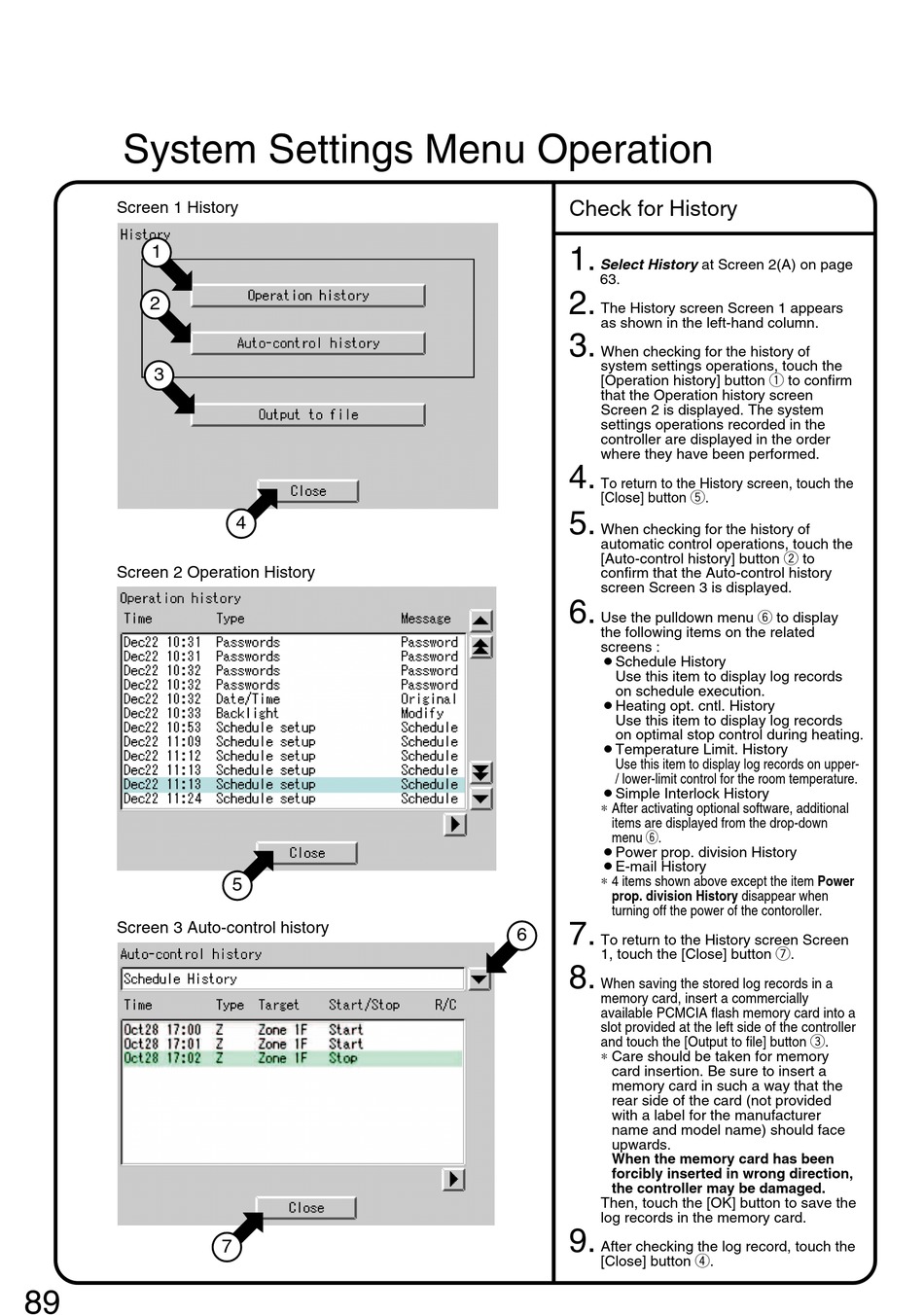

System Settings Menu Operation
Screen 1 History
1
2
3
Screen 2 Operation History
Screen 3 Auto-control history
89
4
5
7
Check for History
1.
Select History at Screen 2(A) on page
63.
2.
The History screen Screen 1 appears
as shown in the left-hand column.
3.
When checking for the history of
system settings operations, touch the
[Operation history] button q to confirm
that the Operation history screen
Screen 2 is displayed. The system
settings operations recorded in the
controller are displayed in the order
where they have been performed.
4.
To return to the History screen, touch the
[Close] button t.
5.
When checking for the history of
automatic control operations, touch the
[Auto-control history] button w to
confirm that the Auto-control history
screen Screen 3 is displayed.
6.
Use the pulldown menu y to display
the following items on the related
screens :
¡Schedule History
Use this item to display log records
on schedule execution.
¡Heating opt. cntl. History
Use this item to display log records
on optimal stop control during heating.
¡Temperature Limit. History
Use this item to display log records on upper-
/ lower-limit control for the room temperature.
¡Simple Interlock History
∗ After activating optional software, additional
items are displayed from the drop-down
menu y.
¡Power prop. division History
¡E-mail History
∗ 4 items shown above except the item Power
prop. division History disappear when
turning off the power of the contoroller.
7.
6
To return to the History screen Screen
1, touch the [Close] button u.
8.
When saving the stored log records in a
memory card, insert a commercially
available PCMCIA flash memory card into a
slot provided at the left side of the controller
and touch the [Output to file] button e.
∗ Care should be taken for memory
card insertion. Be sure to insert a
memory card in such a way that the
rear side of the card (not provided
with a label for the manufacturer
name and model name) should face
upwards.
When the memory card has been
forcibly inserted in wrong direction,
the controller may be damaged.
Then, touch the [OK] button to save the
log records in the memory card.
9.
After checking the log record, touch the
[Close] button r.
