System Settings Menu Operation

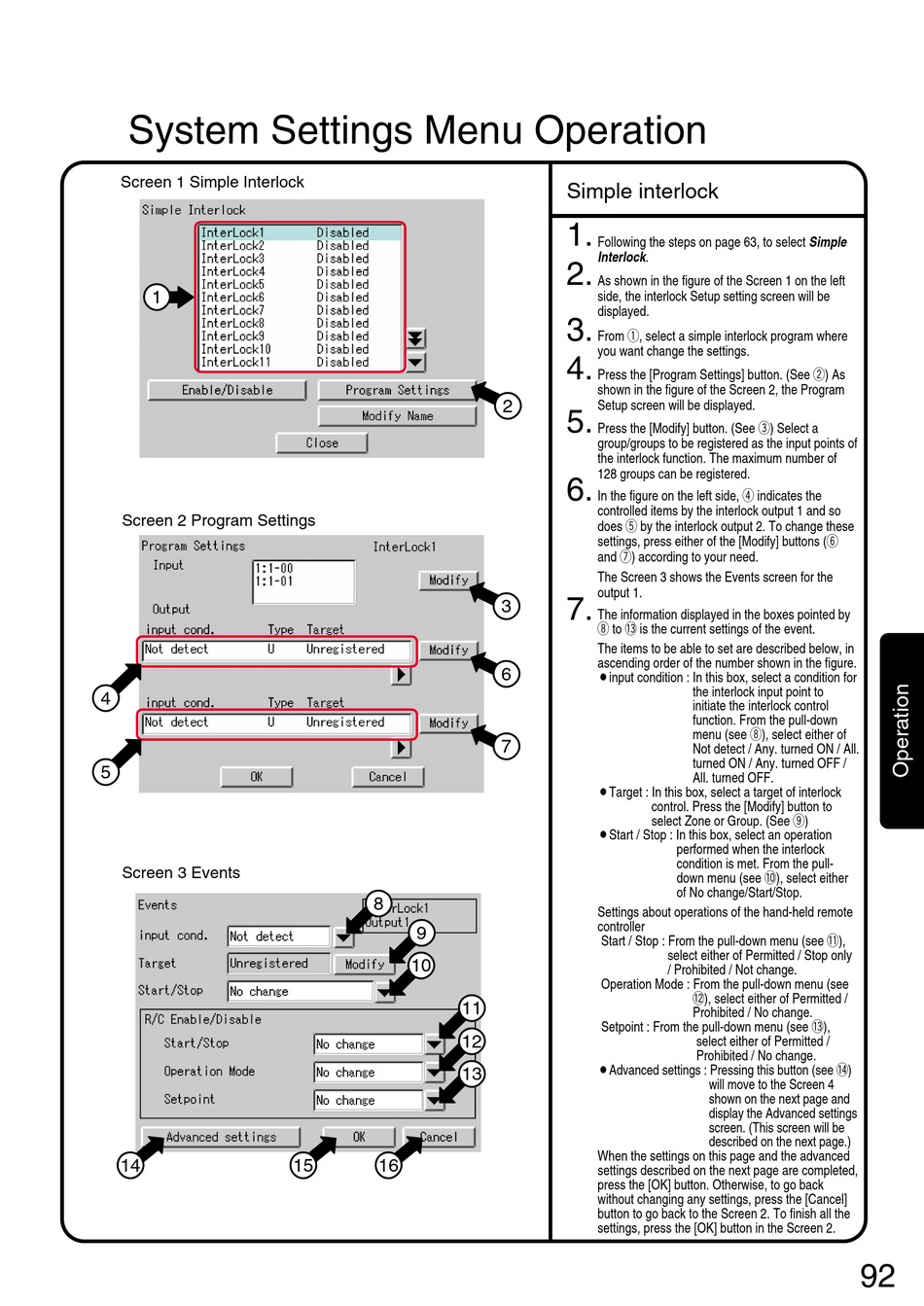

Screen 1 Simple Interlock
1
Screen 2 Program Settings
4
5
Screen 3 Events
14
8
9
10
11
12
13
15 16
Simple interlock
1.
Following the steps on page 63, to select Simple
Interlock .
2.
As shown in the figure of the Screen 1 on the left
side, the interlock Setup setting screen will be
displayed.
3.
From q, select a simple interlock program where
you want change the settings.
4.
Press the [Program Settings] button. (See w) As
shown in the figure of the Screen 2, the Program
2
Setup screen will be displayed.
5.
Press the [Modify] button. (See e) Select a
group/groups to be registered as the input points of
the interlock function. The maximum number of
128 groups can be registered.
6.
In the figure on the left side, r indicates the
controlled items by the interlock output 1 and so
does t by the interlock output 2. To change these
settings, press either of the [Modify] buttons (y
and u) according to your need.
The Screen 3 shows the Events screen for the
output 1.
7.
3
The information displayed in the boxes pointed by
i to !3 is the current settings of the event.
The items to be able to set are described below, in
ascending order of the number shown in the figure.
6
¡input condition : In this box, select a condition for
7
¡Target : In this box, select a target of interlock
control. Press the [Modify] button to
select Zone or Group. (See o)
¡Start / Stop : In this box, select an operation
Settings about operations of the hand-held remote
controller
Start / Stop : From the pull-down menu (see !1 ) ,
select either of Permitted / Stop only
/ Prohibited / Not change.
Operation Mode : From the pull-down menu (see
Setpoint : From the pull-down menu (see !3 ) ,
¡Advanced settings : Pressing this button (see !4 )
When the settings on this page and the advanced
settings described on the next page are completed,
press the [OK] button. Otherwise, to go back
without changing any settings, press the [Cancel]
button to go back to the Screen 2. To finish all the
settings, press the [OK] button in the Screen 2.
the interlock input point to
initiate the interlock control
function. From the pull-down
menu (see i), select either of
Not detect / Any. turned ON / All.
turned ON / Any. turned OFF /
All. turned OFF.
performed when the interlock
condition is met. From the pull-
down menu (see !0 ) , select either
of No change/Start/Stop.
!2 ) , select either of Permitted /
Prohibited / No change.
select either of Permitted /
Prohibited / No change.
will move to the Screen 4
shown on the next page and
display the Advanced settings
screen. (This screen will be
described on the next page.)
