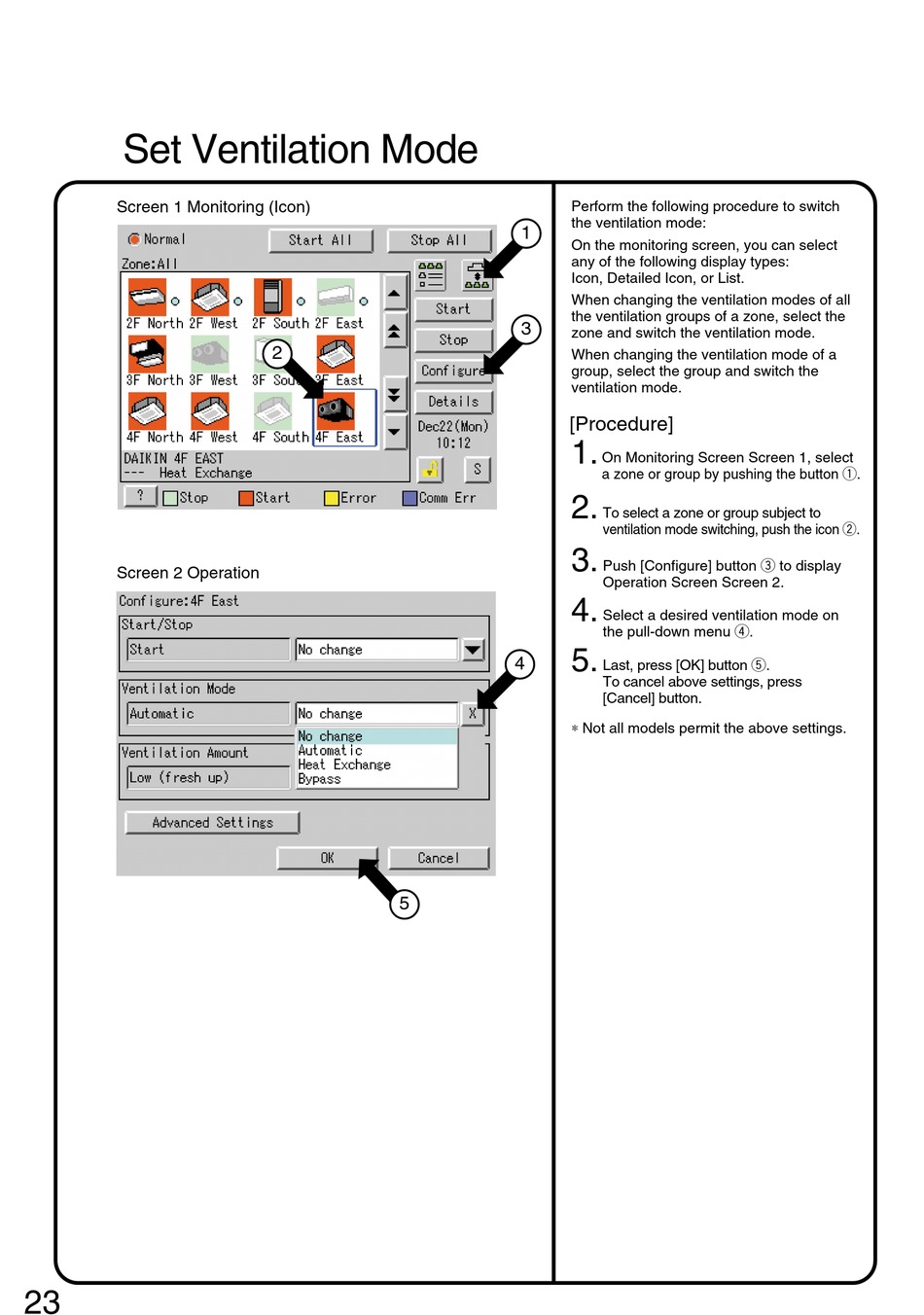

Set Ventilation Mode
Screen 1 Monitoring (Icon)
Screen 2 Operation
23
2
5
Perform the following procedure to switch
the ventilation mode:
1
On the monitoring screen, you can select
any of the following display types:
Icon, Detailed Icon, or List.
When changing the ventilation modes of all
the ventilation groups of a zone, select the
3
zone and switch the ventilation mode.
When changing the ventilation mode of a
group, select the group and switch the
ventilation mode.
[Procedure]
1.
On Monitoring Screen Screen 1, select
a zone or group by pushing the button q.
2.
To select a zone or group subject to
ventilation mode switching, push the icon w.
3.
Push [Configure] button e to display
Operation Screen Screen 2.
4.
Select a desired ventilation mode on
the pull-down menu r.
5.
4
Last, press [OK] button t.
To cancel above settings, press
[Cancel] button.
∗ Not all models permit the above settings.
