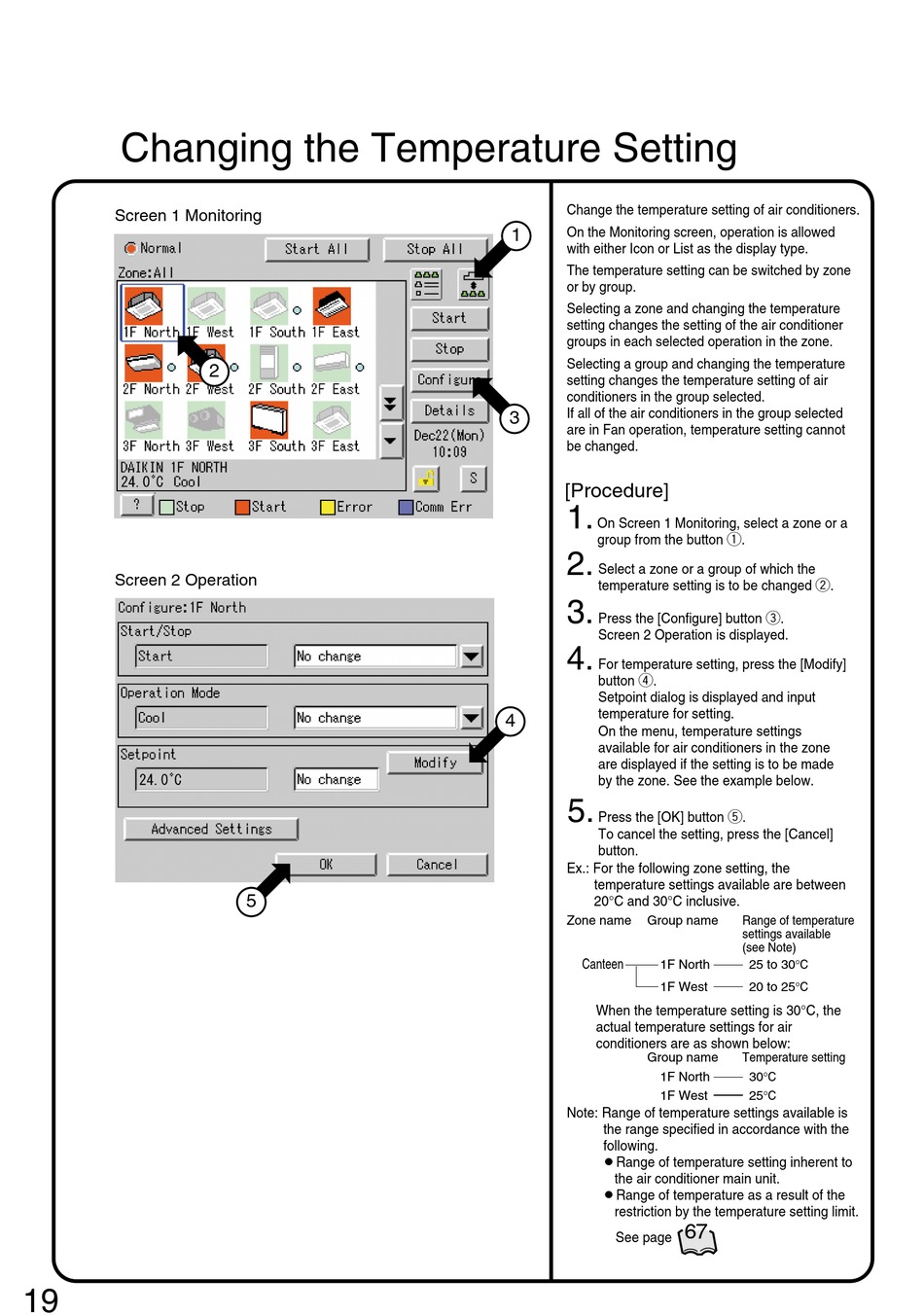

Changing the Temperature Setting
Screen 1 Monitoring
Screen 2 Operation
19
2
5
Change the temperature setting of air conditioners.
On the Monitoring screen, operation is allowed
1
with either Icon or List as the display type.
The temperature setting can be switched by zone
or by group.
Selecting a zone and changing the temperature
setting changes the setting of the air conditioner
groups in each selected operation in the zone.
Selecting a group and changing the temperature
setting changes the temperature setting of air
conditioners in the group selected.
If all of the air conditioners in the group selected
3
are in Fan operation, temperature setting cannot
be changed.
[Procedure]
1.
On Screen 1 Monitoring, select a zone or a
group from the button q.
2.
Select a zone or a group of which the
temperature setting is to be changed w.
3.
Press the [Configure] button e.
Screen 2 Operation is displayed.
4.
For temperature setting, press the [Modify]
button r.
Setpoint dialog is displayed and input
temperature for setting.
4
On the menu, temperature settings
available for air conditioners in the zone
are displayed if the setting is to be made
by the zone. See the example below.
5.
Press the [OK] button t.
To cancel the setting, press the [Cancel]
button.
Ex.: For the following zone setting, the
temperature settings available are between
20°C and 30°C inclusive.
Zone name
Group name
Canteen
1F North
1F West
When the temperature setting is 30°C, the
actual temperature settings for air
conditioners are as shown below:
Group name
1F North
1F West
Note: Range of temperature settings available is
the range specified in accordance with the
following.
¡Range of temperature setting inherent to
the air conditioner main unit.
¡Range of temperature as a result of the
restriction by the temperature setting limit.
See page
Range of temperature
settings available
(see Note)
25 to 30°C
20 to 25°C
Temperature setting
30°C
25°C
67
